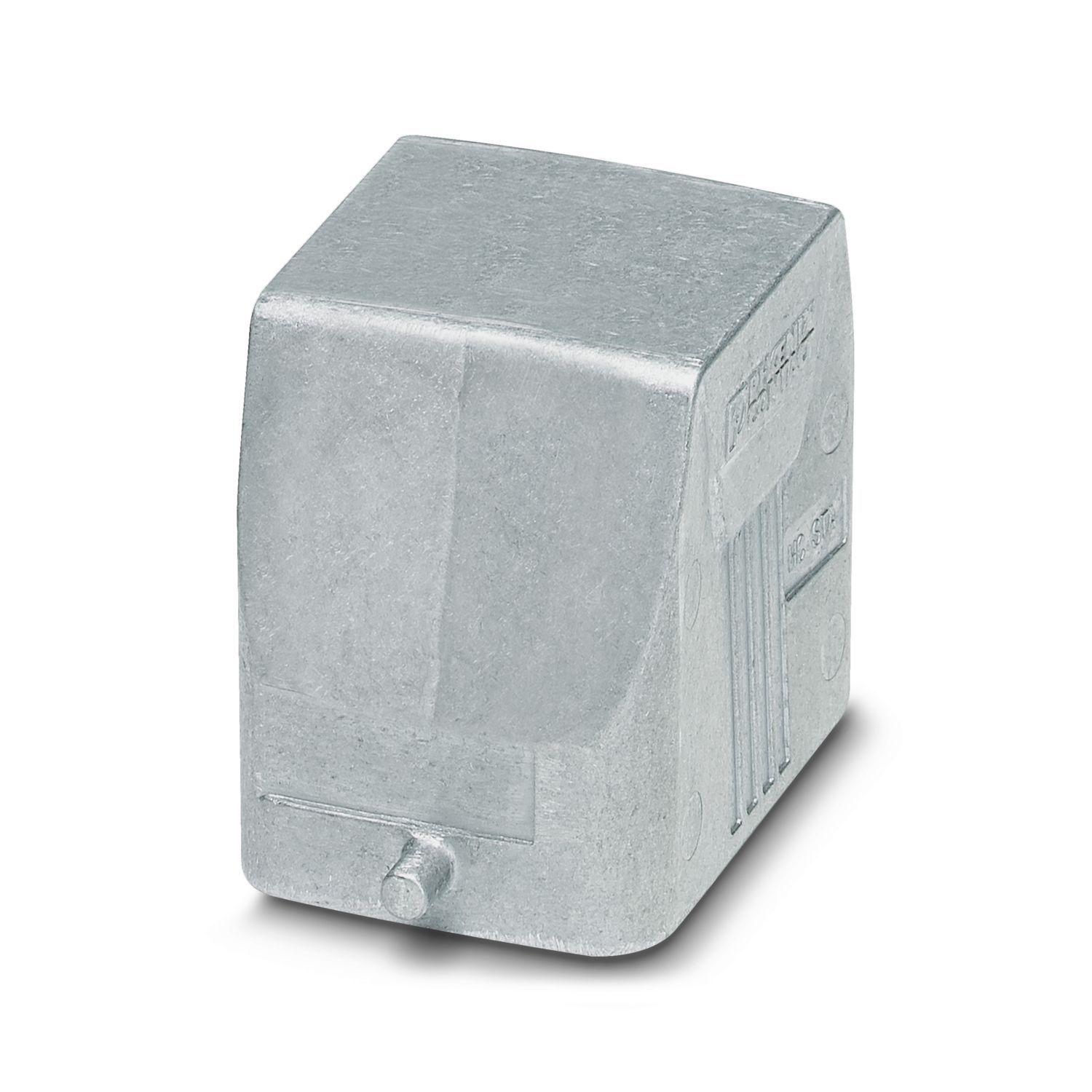

Sleeve housing, without screw thread
HC-STA-B06-HLFS-BLANK-EL-AL
-
Housing
1419900
Sleeve housing B6, for single locking latch, material: Die-cast aluminum, salt water resistant, variable, height: 52 mm, cable gland: none, Standard, Without thread opening for screw connection
Product details
| General | For contact inserts HC-B6, BB10, DD24, M |
| General | also available as a powder-coated or color version: 1372654 HC-STA-B06-HLFS-BLANK-EL/... |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B6 |
| Type | Low design |
| Cable outlet | variable |
| Pg screw connection | none |

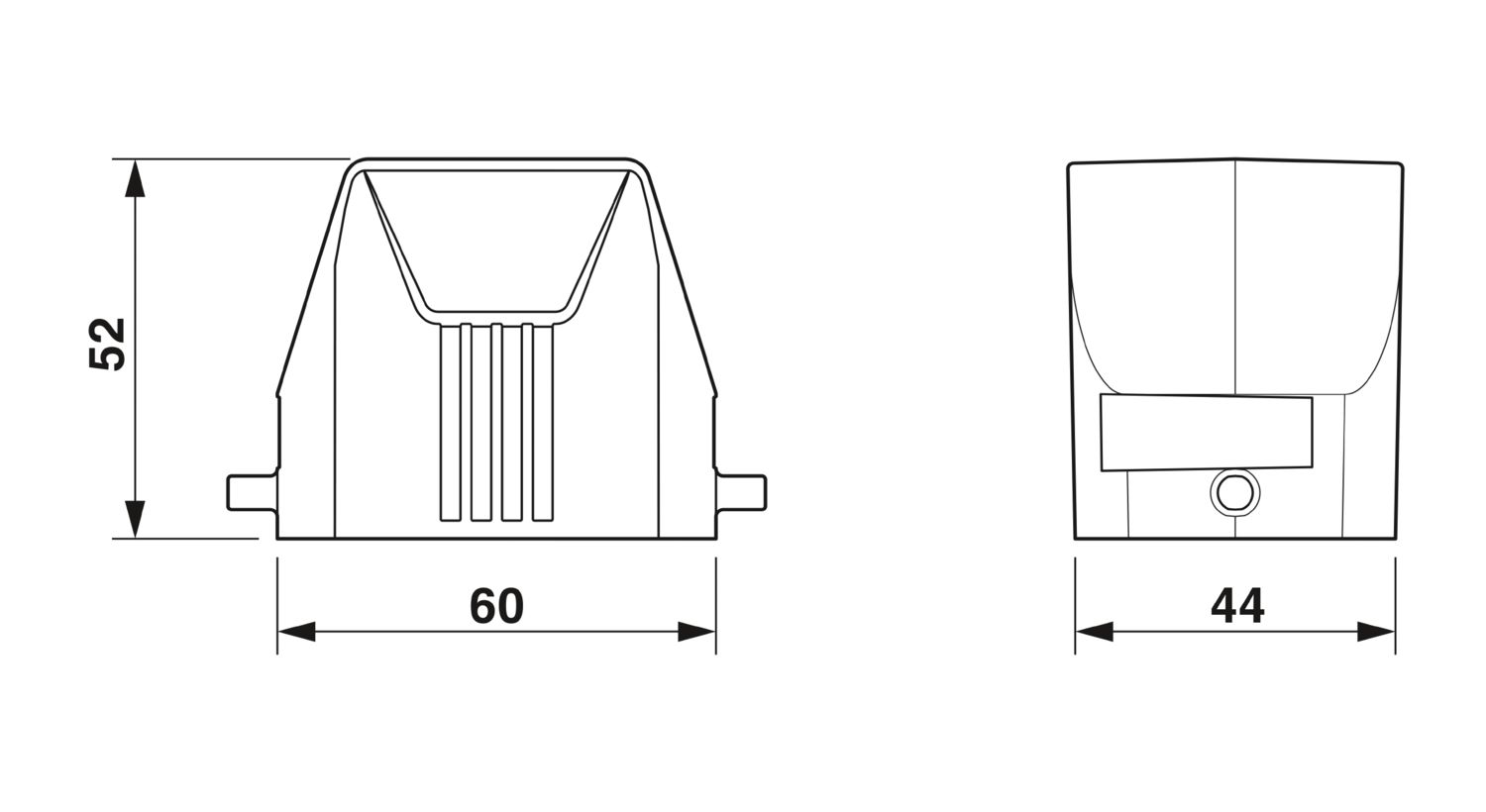

| Dimensional drawing |
|
| Width | 44 mm |
| Height | 52 mm |
| Length | 60 mm |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Mechanical data | |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
EAC
Approval ID: RU C-DE.AI30.B.01102
Your advantages
Good shielding in the event of electromagnetic interference
