HC-CIF-B16-HFWL-PL
-
DIN rail mounting frame
1424336
DIN rail mounting frame, design: B16, for contact inserts, Top frame
Product details
| General | for B16, BB32, DD72, HS6, HV6 contact inserts and B16 module frame |
| Notes on safety | Protection against electric shock must be ensured by the user. The continuity of the PE connection must be verified and satisfied by the user. The PE connection must be implemented equilaterally. |
| Product type | DIN rail mounting frame |
| Housing type | DIN rail mounting frame |
| Series | HC-CIF-PL |
| Type | B16 |
| Protective cover | no |
| Pg screw connection | none |

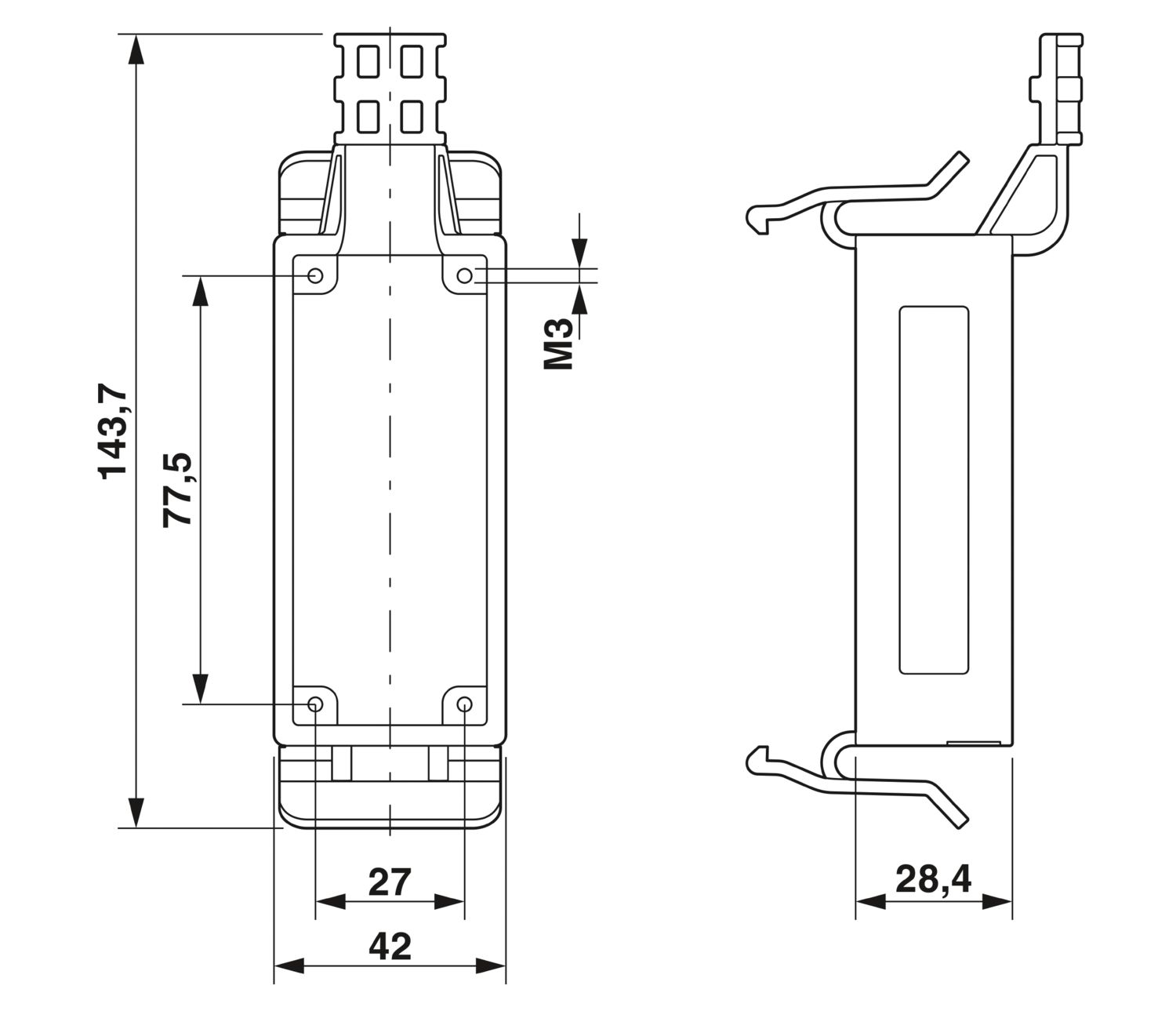

| Dimensional drawing |
|
| Width | 42 mm |
| Height | 61 mm |
| Length | 144 mm |
| Material | PC |
| Flammability rating according to UL 94 | V0 |
| Mechanical data | |
| Locking type | Clip |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | To ensure correct use, installation in an IP-protected space is required |
