NBC-MRD SCO RAIL/.../... - Network cable

1412179

Network cable, PROFINET CAT5 (100 Mbps), Ethernet CAT5 (100 Mbps), 4-position, shielded, Plug angled M12 SPEEDCON, coding: D / IP65, on free cable end, cable length: Free input (0.2 ... 40.0 m), For railway applications

General	Further products with variable cable type and variable cable length can be found in the accessories section

Product type	Data cable preassembled
Application	Railway applications
Sensor type	PROFINET
Number of positions	4
No. of cable outlets	1
Shielded	yes
Coding	D
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Bus system	PROFINET
	Ethernet
Signal type/category	PROFINET CAT5 (IEC 11801), 100 Mbps
	Ethernet CAT5 (IEC 11801), 100 Mbps

Status display	no
Status display present	no

Nominal voltage U_N	48 V AC
	60 V DC
Nominal current I_N	4 A
Transmission medium	Copper
Transmission speed	100 Mbps
Transmission characteristics (category)	CAT5 (IEC 11801:2002)

Flammability rating according to UL 94	V0

Connection 1

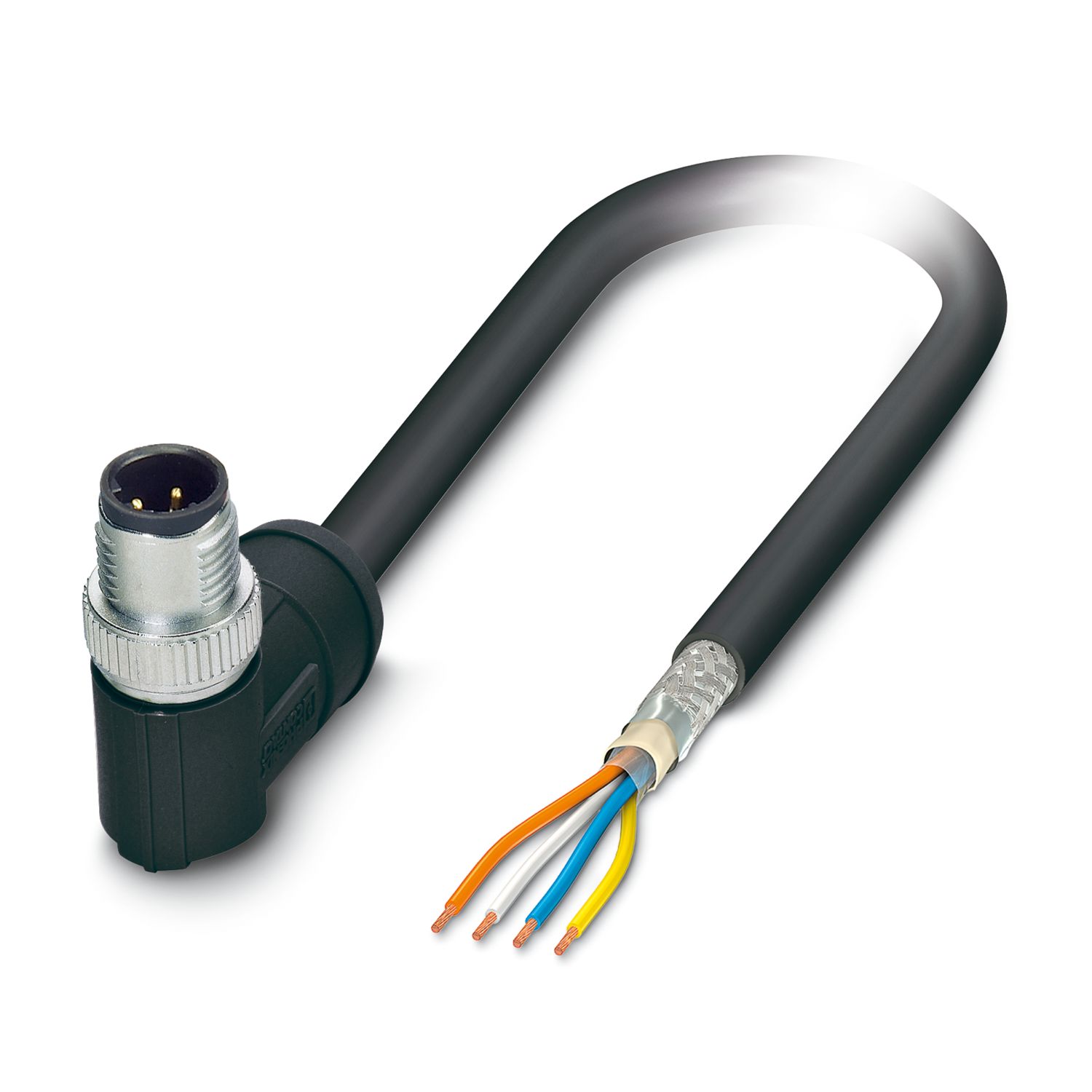

Type	Plug angled M12 SPEEDCON / IP65
Number of positions	4
Locking type	SPEEDCON
Coding type	D (Data)
Shielded	yes
Handle color	black
Material	CuSn (Contact)
	Ni/Au (Contact surface)
	PA 6.6 (Contact carrier)
	PA 6.6 (Grip body)
	Zinc die-cast, nickel-plated (Screw connection)
Standards/regulations	PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Insertion/withdrawal cycles	≥ 100
Insulation resistance	≥ 100 MΩ
Tightening torque	0.4 Nm
Degree of protection	IP65
Ambient temperature (operation)	-40 °C ... 85 °C
Connection 2
Type	free cable end

Cable length	Free input (0.2 ... 40.0 m)
PROFINET RADOX® railway application CAT5 reinforced [936]
Cable weight	81 g/m
Number of positions	4
Shielded	yes
Cable type	PROFINET RADOX® railway application CAT5 reinforced [936]
	PROFINET RADOX® railway application CAT5 reinforced 936
Conductor structure	1x4xAWG22/7, SF/TQ
Signal speed	66 c
Conductor structure signal line	7x 0.25 mm
AWG signal line	22
Conductor cross section	4x 0.34 mm²
Wire diameter incl. insulation	1.95 mm
External cable diameter	7.25 mm ±0.3 mm
Outer sheath, material	PE-X
External sheath, color	black RAL 9005
Conductor material	silver-plated Cu litz wires
Material wire insulation	PE-X
Single wire, color	white-blue, orange-yellow
Thickness, outer sheath	≥ 0.80 mm
Overall twist	Star quad
Shielding	Plastic-coated aluminum foil, tinned copper braided shield
Optical shield covering	100 %
Max. conductor resistance	≤ 54.4 Ω/km
Coupling resistance	200.00 mΩ/m (f ≤ 30 MHz)
Wave impedance	100 Ω ±5 Ω (f = 100 MHz)
Working capacitance	≤ 65 pF (Line-line)
	≤ 100 pF (Line-shield)
Nominal voltage, cable	300 V AC
Test voltage	2000 V AC (50 Hz, 5 minutes)
Minimum bending radius, fixed installation	6 x D
Minimum bending radius, flexible installation	10 x D
Smallest bending radius, fixed installation	44 mm
Smallest bending radius, movable installation	73 mm
Near end crosstalk attenuation (NEXT)	80 dB (with 1 MHz)
	76 dB (at 4 МHz)
	67 dB (at 10 MHz)
	60 dB (at 31.5 МHz)
	56 dB (at 62.5 МHz)
	53 dB (at 100 MHz)
Return attenuation (RL)	35 dB (at 4 МHz)
	35 dB (at 10 MHz)
	35 dB (at 31.5 МHz)
	33 dB (at 62.5 МHz)
	33 dB (at 100 MHz)
Remote crosstalk attenuation (FEXT)	35 dB (at 4 МHz)
	35 dB (at 10 MHz)
	35 dB (at 31.5 МHz)
	33 dB (at 62.5 МHz)
	33 dB (at 100 MHz)
Wave attenuation	2 dB (with 1 MHz)
	4 dB (at 4 МHz)
	6.5 dB (at 10 MHz)
	10.5 dB (at 31.5 МHz)
	14 dB (at 62.5 МHz)
	18 dB (at 100 MHz)
Halogen-free	in accordance with EN 50267-2-1
Flame resistance	IEC 60332-1-2
	EN 50266
	EN 60332-3-25
	NF C32-070, 2.1
	NF C32-070, 2.2
	UL 1685, 12 (FT4)
	in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Fume corrosiveness	EN 50267-2-2
Fume toxicity	BS 6853 B.1
	EN 50305, 9.2
Concentration of fumes	BS 6853 D.8.7
	EN 61034-2
	UL 1685, 12 (FT4)
Resistance to oil	according to IRM 902, 72 h at 100 °C
Fire protection in rail vehicles	BS 6853 (Category Ia, Ib, II)
	GM/RT 2130 (Category Ia, Ib, II)
	EN 45545 (Risk level HL1 - HL3)
	DIN 5510 (Fire protection level 1, 2, 3, 4)
	NF F16-101 (Category A1, A2, B)
	NF F16-101 (Class C/F0)
	NFPA 130
	UNI CEI 11170 (Risk level LR1 - LR4)
Other resistance	Resistance to fuels (according to IRM 903, 168 h at 70 °C)
Ambient temperature (operation)	-50 °C ... 90 °C (cable, fixed installation)
	-40 °C ... 90 °C (Cable, flexible installation)
PROFINET RADOX® railway application CAT5 [937]
Cable weight	70 kg/km
Number of positions	4
Shielded	yes
Cable type	PROFINET RADOX® railway application CAT5 [937]
	PROFINET RADOX® railway application CAT5 937
Conductor structure	1x4xAWG22/7, SF/TQ
Signal speed	75 c
Conductor structure signal line	7x 0.25 mm
AWG signal line	22
Conductor cross section	4x 0.34 mm²
Wire diameter incl. insulation	approx. 1.5 mm
External cable diameter	6.60 mm ±0.4 mm
Outer sheath, material	PE-X
External sheath, color	black RAL 9005
Conductor material	silver-plated Cu litz wires
Material wire insulation	Foamed PE
Single wire, color	white-blue, orange-yellow
Thickness, outer sheath	approx. 1.00 mm
Overall twist	Star quad
Shielding	Plastic-coated aluminum foil, tinned copper braided shield
Max. conductor resistance	≤ 54.4 Ω/km
Coupling resistance	200.00 mΩ/m (f ≤ 30 MHz)
Wave impedance	100 Ω ±5 Ω (f = 100 MHz)
Working capacitance	≤ 65 pF (Line-line)
	≤ 100 pF (Line-shield)
Nominal voltage, cable	300 V AC
Test voltage	2000 V AC (50 Hz, 5 minutes)
Minimum bending radius, fixed installation	6 x D
Smallest bending radius, fixed installation	40 mm
Near end crosstalk attenuation (NEXT)	73 dB (with 1 MHz)
	70 dB (at 4 МHz)
	65 dB (at 10 MHz)
	57 dB (at 31.5 МHz)
	52 dB (at 62.5 МHz)
	48 dB (at 100 MHz)
Return attenuation (RL)	25 dB (at 4 МHz)
	30 dB (at 10 MHz)
	30 dB (at 31.5 МHz)
	30 dB (at 62.5 МHz)
	28 dB (at 100 MHz)
Remote crosstalk attenuation (FEXT)	25 dB (at 4 МHz)
	30 dB (at 10 MHz)
	30 dB (at 31.5 МHz)
	30 dB (at 62.5 МHz)
	28 dB (at 100 MHz)
Wave attenuation	2 dB (with 1 MHz)
	4.4 dB (at 4 МHz)
	7.4 dB (at 10 MHz)
	14 dB (at 31.5 МHz)
	20 dB (at 62.5 МHz)
	26 dB (at 100 MHz)
Halogen-free	in accordance with EN 50267-2-1
Flame resistance	IEC 60332-1-2
	EN 50266
	EN 60332-3-25
	NF C32-070, 2.1
	NF C32-070, 2.2
	UL 1685, 12 (FT4)
	in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Fume corrosiveness	EN 50267-2-2
Fume toxicity	BS 6853 B.1
	EN 50305, 9.2
Concentration of fumes	BS 6853 D.8.7
	EN 61034-2
	UL 1685, 12 (FT4)
Resistance to oil	according to IRM 902, 72 h at 100 °C
Fire protection in rail vehicles	BS 6853 (Category Ia, Ib, II)
	GM/RT 2130 (Category Ia, Ib, II)
	EN 45545 (Risk level HL1 - HL3)
	DIN 5510 (Fire protection level 1, 2, 3, 4)
	NF F16-101 (Category A1, A2, B)
	NF F16-101 (Class C/F0)
	NFPA 130
	UNI CEI 11170 (Risk level LR1 - LR4)
Other resistance	Resistance to fuels (according to IRM 903, 168 h at 70 °C)
Ambient temperature (operation)	-50 °C ... 90 °C (cable, fixed installation)
	-40 °C ... 90 °C (Cable, flexible installation)
PROFINET BETAtrans® railway application CAT5 [939]
Cable weight	71 kg/km
Number of positions	4
Shielded	yes
Cable type	PROFINET BETAtrans® railway application CAT5 [939]
	PROFINET BETAtrans® railway application CAT5 939
Conductor structure	1x4xAWG22/7, SF/TQ
Signal runtime	4.4 ns/m
Signal speed	0.75 c
Conductor structure signal line	7x 0.25 mm
AWG signal line	22
Conductor cross section	4x 0.34 mm²
Wire diameter incl. insulation	1.4 mm ±0.1 mm
External cable diameter	6.60 mm ±0.2 mm
Outer sheath, material	PE-X
External sheath, color	black
Conductor material	Tin-plated Cu litz wires
Material wire insulation	Cell PE
Single wire, color	white-blue, orange-yellow
Thickness, outer sheath	1.00 mm
Overall twist	Star quad
Shielding	Aluminum-lined polyester foil, tinned copper braided shield
Max. conductor resistance	≤ 54.4 Ω/km
Insulation resistance	≥ 5 GΩ*km
Coupling resistance	< 13.00 mΩ/m (f = 1 MHz)
	< 8.00 mΩ/m (f = 10 MHz ... 100 MHz)
Wave impedance	100 Ω ±5 Ω (f = 100 MHz)
Cable capacity	44 nF/km (Line-line)
Cable impedance	100 Ω ±15 Ω (f = 0.5 MHz ... 3 MHz)
Nominal voltage, cable	125 V
Test voltage Core/Core	1000 V AC (50 Hz, 1 min.)
Test voltage Core/Shield	1000.00 V AC (50 Hz, 1 min.)
Minimum bending radius, fixed installation	5 x D
Minimum bending radius, flexible installation	6 x D
Smallest bending radius, fixed installation	33 mm
Smallest bending radius, movable installation	40 mm
Tensile strength	≤ 60 N (temporary)
	≤ 15 N (Permanent)
Near end crosstalk attenuation (NEXT)	76 dB (with 1 MHz)
	71 dB (at 4 МHz)
	64 dB (at 10 MHz)
	60 dB (at 16 MHz)
	56 dB (at 31.25 МHz)
	52 dB (at 62.5 МHz)
	48 dB (at 100 MHz)
	45 dB (at 155 MHz)
	42 dB (at 200 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)	73 dB (with 1 MHz)
	68 dB (at 4 МHz)
	61 dB (at 10 MHz)
	57 dB (at 16 MHz)
	53 dB (at 31.25 МHz)
	49 dB (at 62.5 МHz)
	45 dB (at 100 MHz)
	42 dB (at 155 MHz)
	39 dB (at 200 MHz)
Return attenuation (RL)	25 dB (with 1 MHz)
	25 dB (at 4 МHz)
	28 dB (at 10 MHz)
	28 dB (at 16 MHz)
	27 dB (at 31.25 МHz)
	26 dB (at 62.5 МHz)
	25 dB (at 100 MHz)
	25 dB (at 155 MHz)
	23 dB (at 200 MHz)
Remote crosstalk attenuation (FEXT)	25 dB (with 1 MHz)
	25 dB (at 4 МHz)
	28 dB (at 10 MHz)
	28 dB (at 16 MHz)
	27 dB (at 31.25 МHz)
	26 dB (at 62.5 МHz)
	25 dB (at 100 MHz)
	25 dB (at 155 MHz)
	23 dB (at 200 MHz)
Wave attenuation	1.5 dB (with 1 MHz)
	3.3 dB (at 4 МHz)
	5.3 dB (at 10 MHz)
	6.9 dB (at 16 MHz)
	9.9 dB (at 31.25 МHz)
	14.5 dB (at 62.5 МHz)
	18.8 dB (at 100 MHz)
	23.6 dB (at 155 MHz)
	27.3 dB (at 200 MHz)
Halogen-free	in accordance with EN 50267-2-1
	in accordance with EN 60684-2
Flame resistance	in accordance with EN 60332-1-2
	in accordance with EN 50266-2-5
	in accordance with ISO 14572 5.21 (UN ECE-R 118.01)
Concentration of fumes	EN 61034-2
Resistance to oil	in accordance with EN 50306-4, 72 hours at 100°C, IRM 902
Fire protection in rail vehicles	BS 6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II)
	DIN 5510-2 (Fire protection level 1, 2, 3, 4)
	EN 45545-2 (Risk level HL1 - HL3)
	EN 50306-4
	NF F16-101 (Classification C/F1)
	NF F16-101 (Internal cable A1, A2, B/external cable A1, A2, B)
	NFPA 130
	PN-K-02511
	UIC 564-2 (Class A)
Other resistance	Resistant to fuel (in accordance with EN 50306-4, 168 hours at 70°C, IRM 903)
	Resistant to ozone (in accordance with EN 50306-4, 72 hours at 40°C, method B, volumetric concentration of 200 x 10^-6)
Ambient temperature (operation)	-40 °C ... 85 °C (cable, fixed installation)
	-25 °C ... 70 °C (Cable, flexible installation)
	160 °C (Short circuit)

Ambient conditions
Degree of protection	IP65
Ambient temperature (operation) (male connector/female connector)	-40 °C ... 85 °C (Plug / socket)

M12
Standard designation	M12 connector
Standards/specifications	IEC 61076-2-101
Standard designation	Shock, vibration
Standards/specifications	EN 50155

Item number	1412179
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	AF1CJN
GTIN	4046356993777
Customs tariff number	85444290
Country of origin	PL

Compatible products

Accessories

Your advantages

Easy and safe: 100 % electrically tested plug-in components

Securely locked by special vibration brake

Resistant to temperature influences – tested for an extended temperature range and for resistance to temperature shocks

Reliable signal transmission – 360° shielding in environments with electromagnetic interference

ECLASS-13.0	27060307
ECLASS-15.0	27060307

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS: 119-47-1)

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

NBC-MRD SCO RAIL/.../... - Network cable

1412179

Product details

ECLASS

ETIM

UNSPSC

EAC-RoHS

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

NBC-MRD SCO RAIL/.../... - Network cable 1412179

Product details

ECLASS

ETIM

UNSPSC

Compatible products

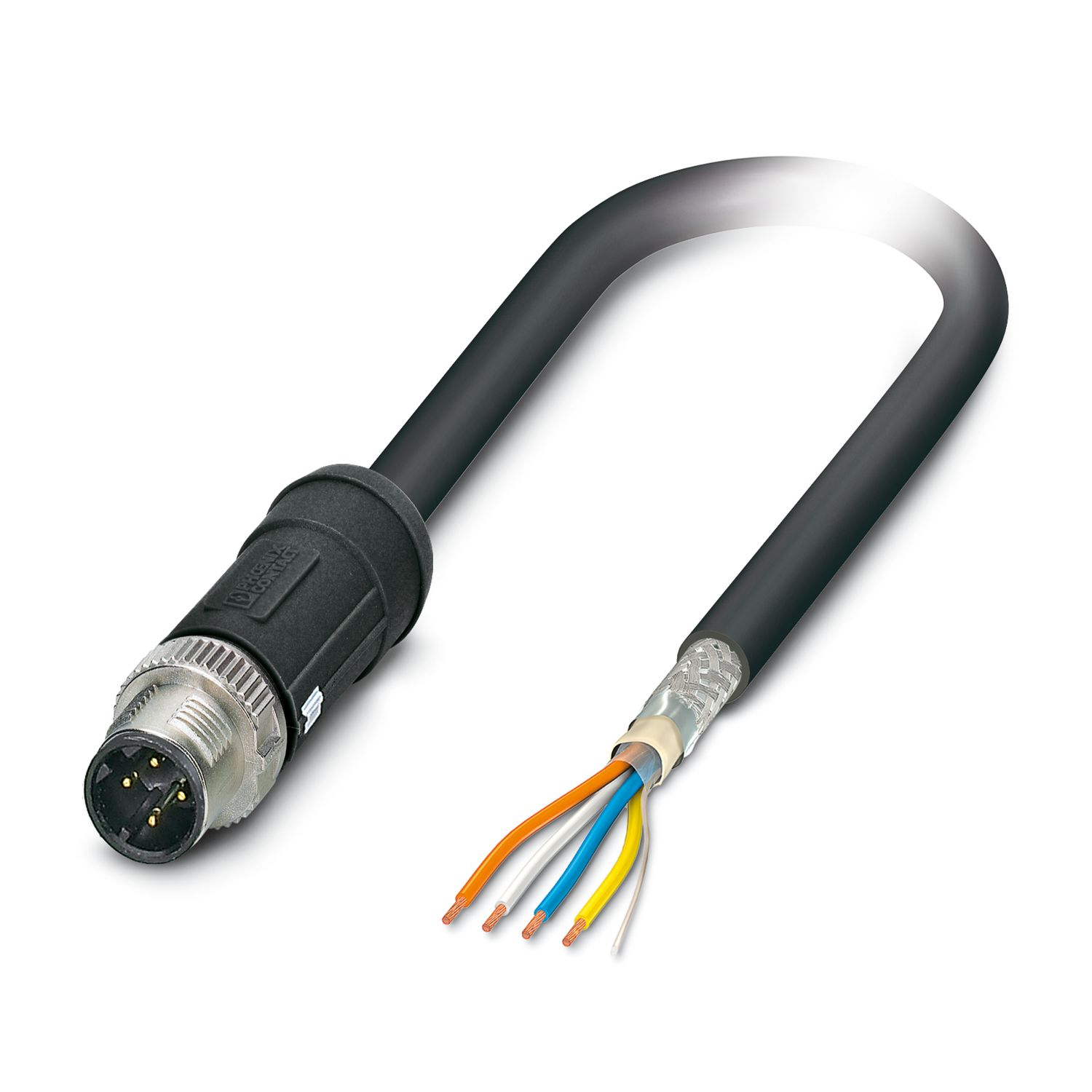

NBC-MSD SCO RAIL/.../... - Network cable 1412178

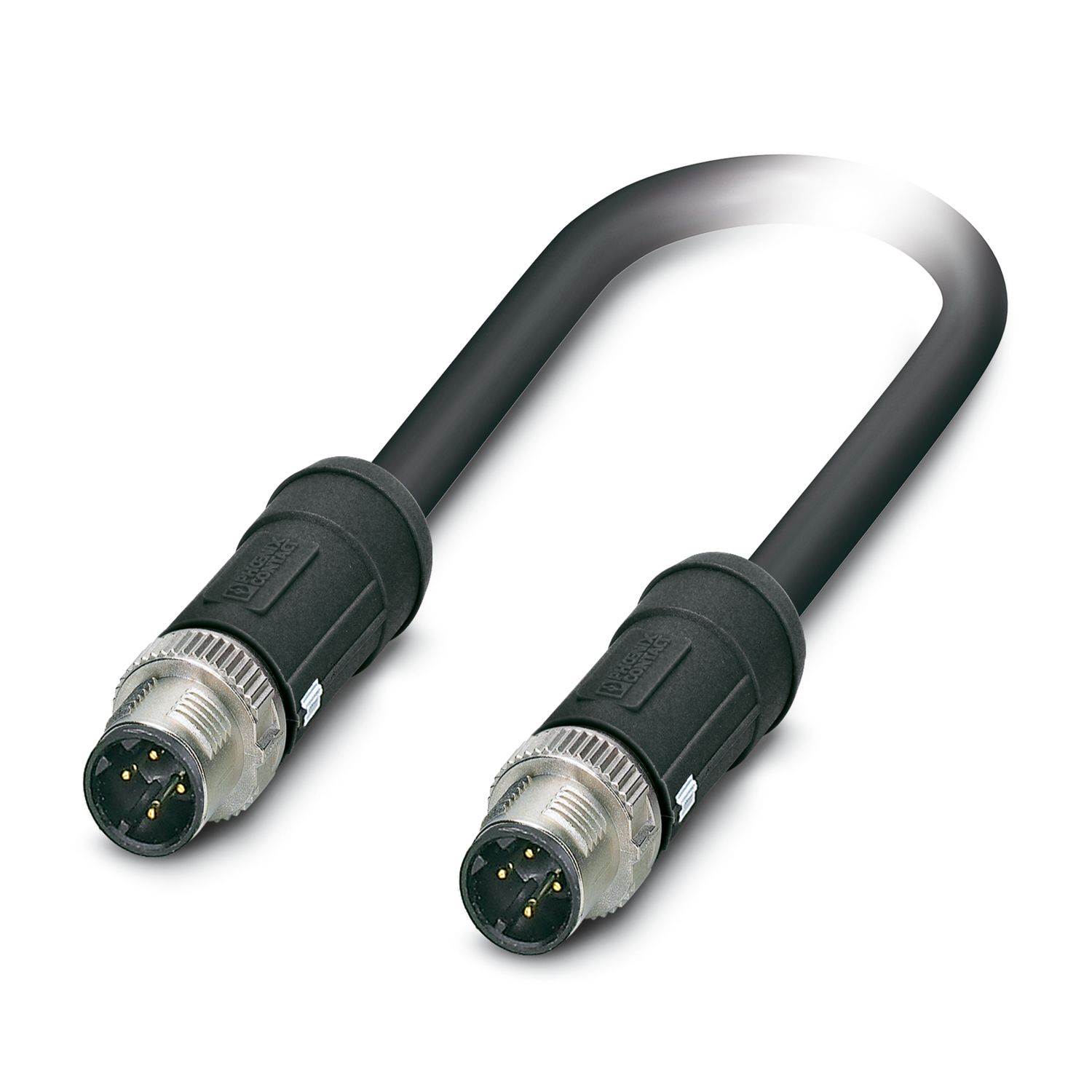

NBC-MSD-MSD SCO RAIL/.../... - Network cable 1412177

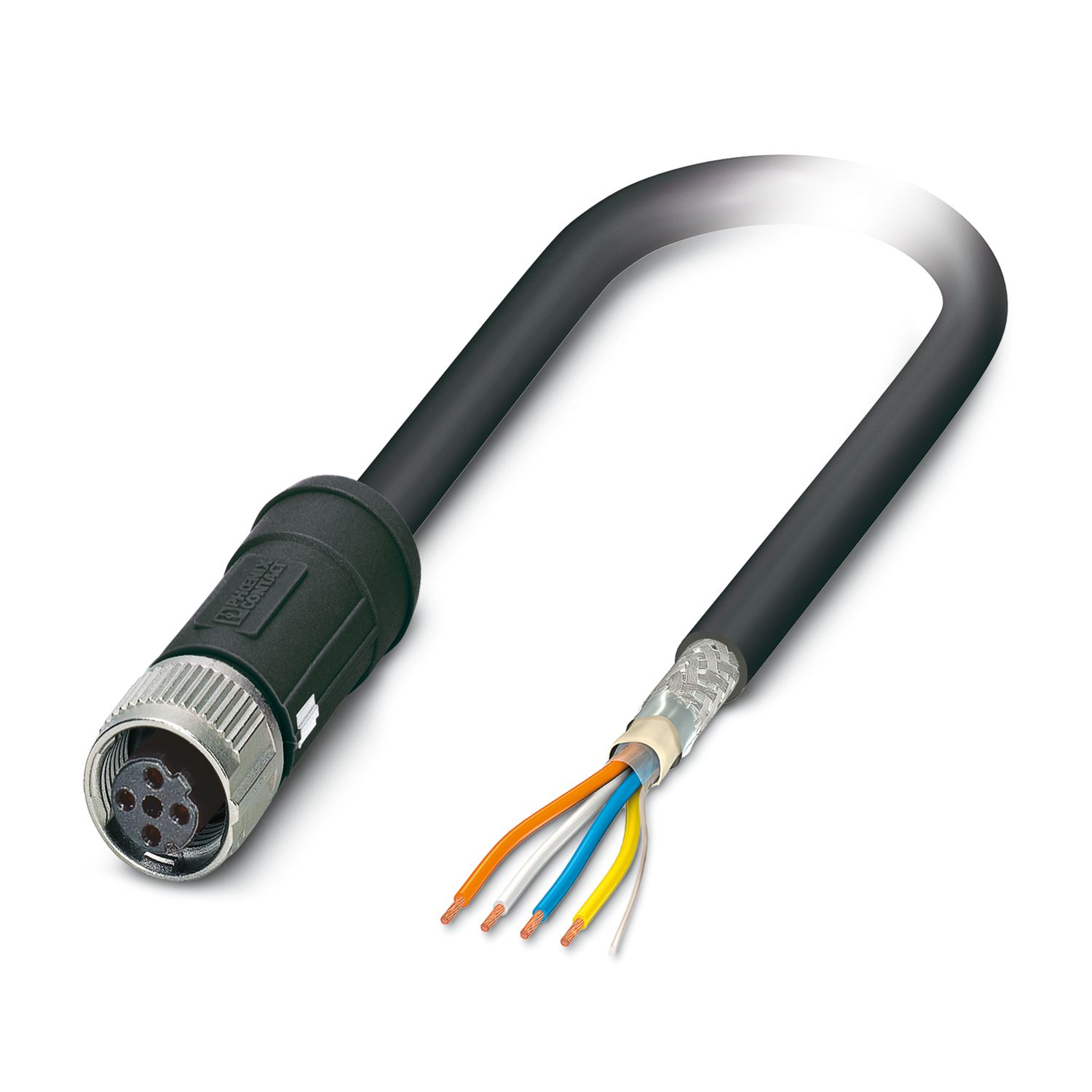

NBC-FSD SCO RAIL/.../... - Network cable 1412181

PROT-M12 FS-PA-CHAIN - Sealing cap 1430873

SAC-M12-EXCLIP-M - Locking clip 1558988

PATG HF 3/18 - Conductor marker carrier 1014059

PATG HF 3/23 - Conductor marker carrier 1014060

PATG HF 3/30 - Conductor marker carrier 1014061

PATG HF 4/18 - Conductor marker carrier 1014065

PATG HF 4/23 - Conductor marker carrier 1014066

PATG HF 4/30 - Conductor marker carrier 1014067

KMK HP (25X6) - Cable marker carrier 0830720

KMK HP (29X8) - Cable marker carrier 0830721

WMTB HF (40X12)R YE - Cable marker 0830408

WMTB HF (55X15)R YE - Cable marker 0830410

WMTB HF (55X25)R YE - Cable marker 0830412

WMS-2 HF 6,4 (60X10)RL YE - Shrink sleeve 0801025

WMS-2 HF 6,4 (EX10)RL YE - Shrink sleeve 0833244

WMS-2 HF 9,5 (60X16)RL YE - Shrink sleeve 0801029

WMS-2 HF 9,5 (EX16)RL YE - Shrink sleeve 0833245

UCT-WMCO 5,4 (23X8) - Wire marking 0832105

UCT-WMCO 6,1 (23X8) - Wire marking 0832106

UCT-WMCO 6,8 (23X8) - Wire marking 0832107

UCT-WMCO 7,5 (23X8) - Wire marking 0832108

WMTB-AL (40X15) - Cable marker 0830524

WMTB-AL (60X15) - Cable marker 0830525

LS-WMTB-AL (40X15) - Cable marker 0831501

LS-WMTB-AL (40X15) BK - Cable marker 0831509

LS-WMTB-AL (60X15) - Cable marker 0831502

LS-WMTB-AL (60X15) BK - Cable marker 0831510

LS-WMTB-AL (100X15) - Cable marker 0831503

LS-WMTB-AL (100X15) BK - Cable marker 0831511

SACC-M12MSD-4QO SH PN - Data connector 1411068

SACC-M12FSD-4QO SH PN - Data connector 1411071

SACC-M12MSD-4PL SH PN - Connector 1424682

SACC-M12MRD-4PL SH PN - Connector 1424684

SACC-M12FSD-4PL SH PN - Connector 1424683

SACC-M12FRD-4PL SH PN - Connector 1424685

SACC-M12MSD-4CT-CM SH PN - Data connector 1422846

SACC-M12MRD-4CT-CM SH PN - Data connector 1422847

SACC-M12FSD-4CT-CM SH PN - Data connector 1422848

SACC-M12FRD-4CT-CM SH PN - Data connector 1422849

SACC-PO12MSD-4CT-CM SH PN - Data connector 1021830

SACC-PO12MRD-4CT-CM SH PN - Data connector 1021831

SACC-M12MSD-4QO SH ETH - Data connector 1411066

SACC-M12FSD-4QO SH ETH - Data connector 1411069

TSD 04 SAC - Torque screwdriver 1208429

TSD-M 1,2NM - Torque screwdriver 1212224

TSD-M SAC-BIT ADAPTER - Adapter insert 1212600

SAC BIT M12-D15 - Tool 1208432

B-STIFT - Marker pen 1051993

CUTFOX 12 - Cable-cutting tool 1212128

CUTFOX-S VDE - Diagonal cutter 1212207

MICROFOX-SP-1 - Diagonal cutter 1212487

WIREFOX 4 - Stripping tool 1212156

WIREFOX-E 4 - Stripping tool 1212704

WIREFOX 10 - Stripping tool 1212150

Your advantages

Frequently searched

NBC-MRD SCO RAIL/.../... - Network cable

1412179
