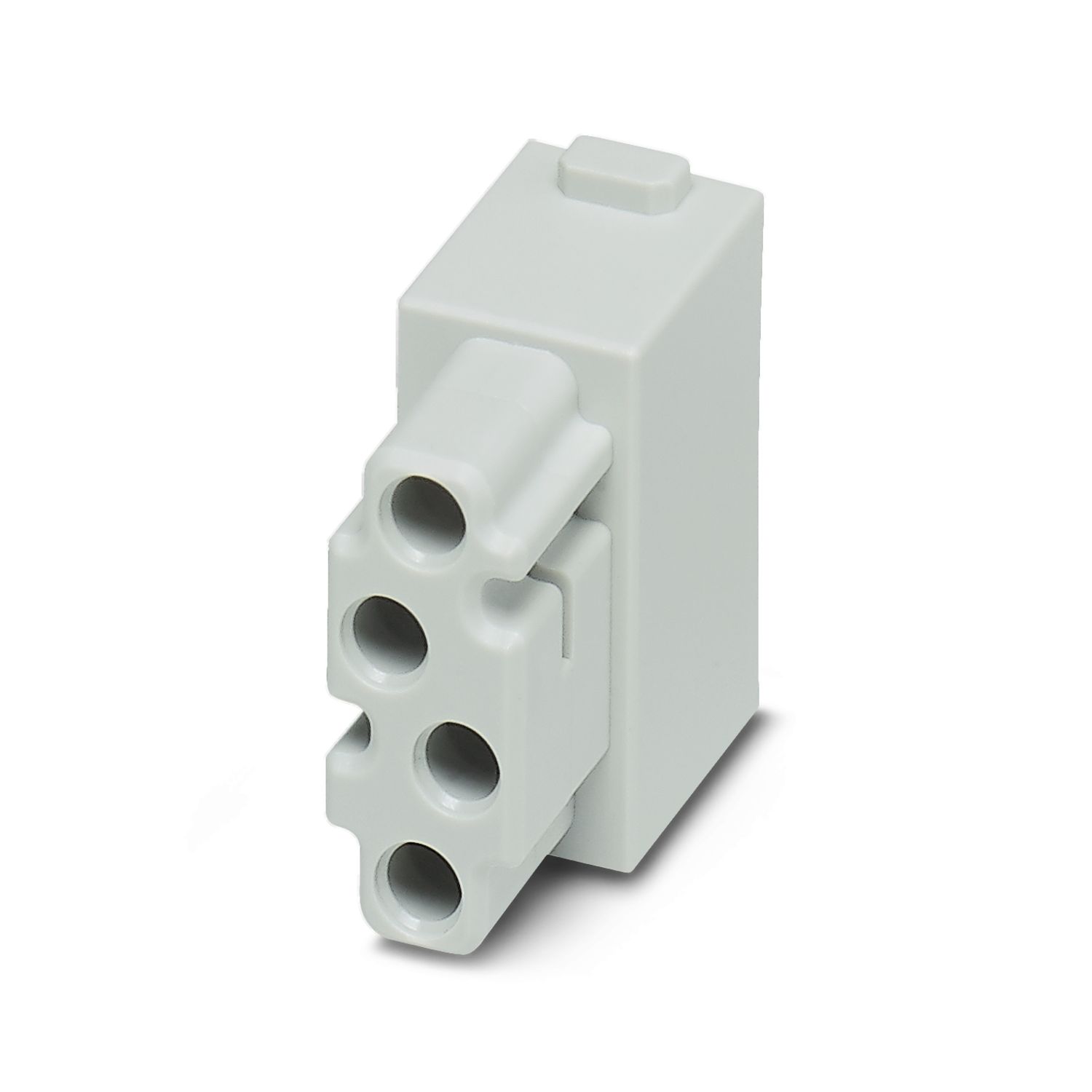

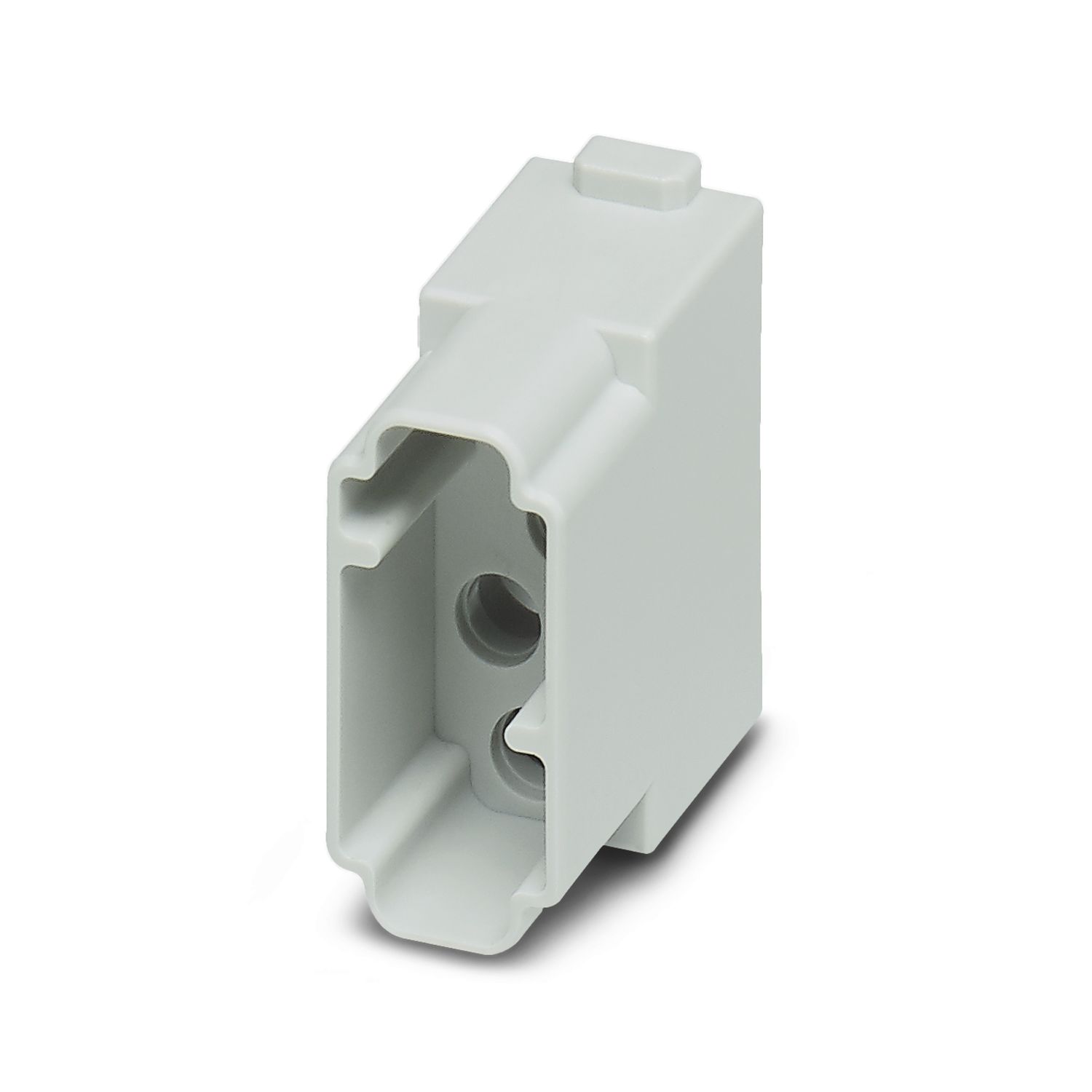

HC-M-04-KT-F
-
Contact insert module
1417370
Contact insert module, number of positions: 4xKOAX, power contacts: 0, control contacts: 4, Socket, Soldering and crimp connection, 48 V, 2 A, 0.2 mm2 ... 0.8 mm2, application: Signal
Product details
General | For HEAVYCON housings type B6 to B48, HC-M-B…MF-... module carrier frame required, crimp contacts HC-M-04-KOAX... (crimp contacts not included in the scope of delivery) |
General | Connectors may be operated only when there is no load/voltage. |
General | It is imperative that guide pins (HC-CST) and sockets (HC-CBU) are used to prevent tip collision due to misalignment. |
General | The designations “female” and “male” are used differently for coaxial contacts than for single-position contacts. The correct accessories can be found in the e-shop. |
Product type | Coaxial insert, modular |
Series | HC-M-04-KOAX |
Application | Signal |
Number of positions | 4 |
Connection profile | 4xKOAX |

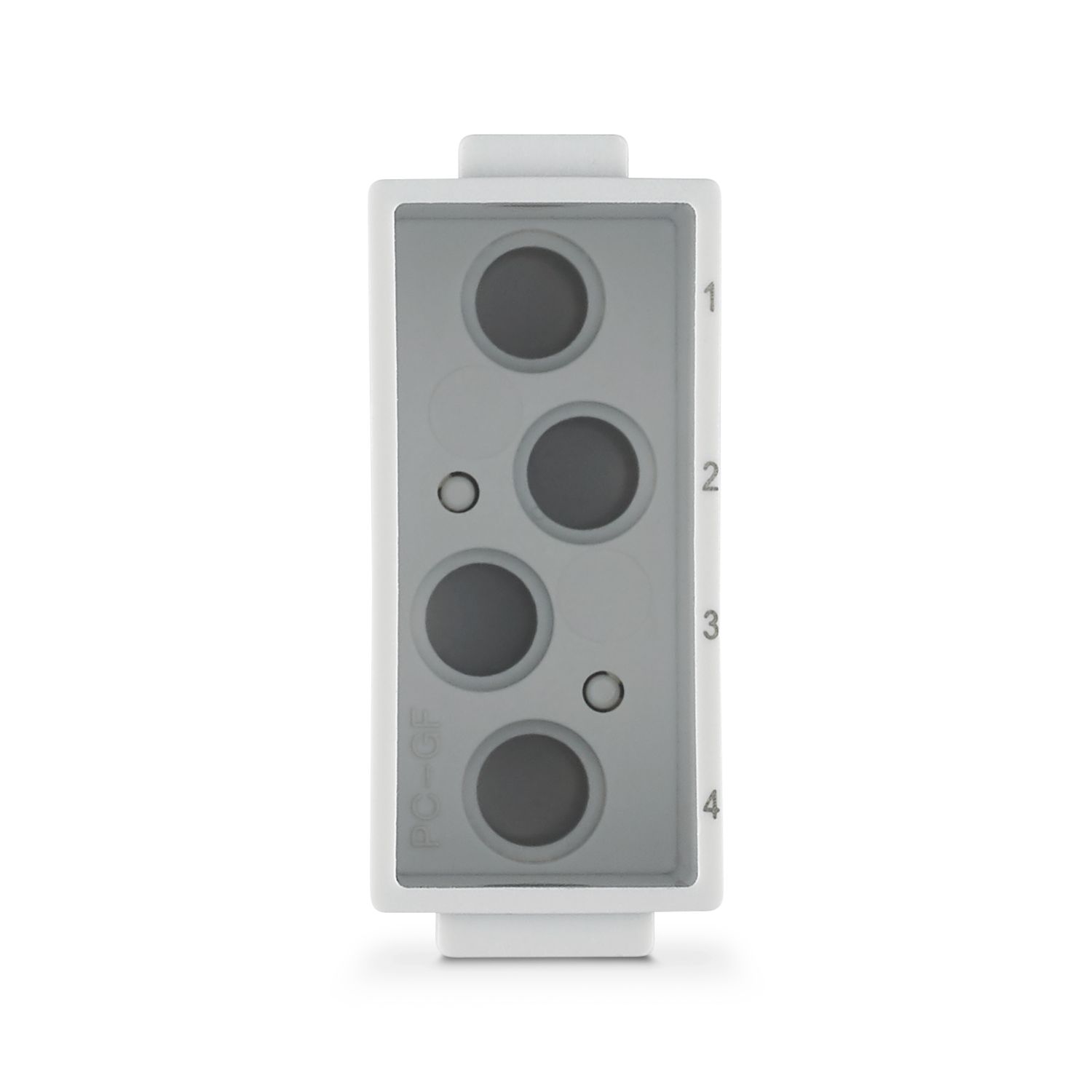

Contact numbering | 1 - 4 |
No. of cable outlets | 4 |
Number of module slots | 1 |
No. of power contacts | 0 |
No. of control contacts | 4 |
Contact material type | turned |
Insulation characteristics | |
Overvoltage category | III |
Degree of pollution | 3 |
Rated voltage (III/3) | 48 V |
Rated surge voltage | 0.8 kV |
Rated current | 1.5 A |
Contact resistance, phase conductor | ≤ 3 mΩ |
Contact resistance, inner conductor | ≤ 10 mΩ |
Insulation resistance | ≥ 10 GΩ |
Transmission characteristics (category) | shielded data cable |
Connection technology | |
Connection technology | Soldering and crimp connection |
Conductor connection | |
Conductor cross section | 0.2 mm² ... 0.8 mm² |
Connection cross section AWG | 24 ... 18 |
Stripping length of the individual wire | 2.5 mm ±0.5 mm |

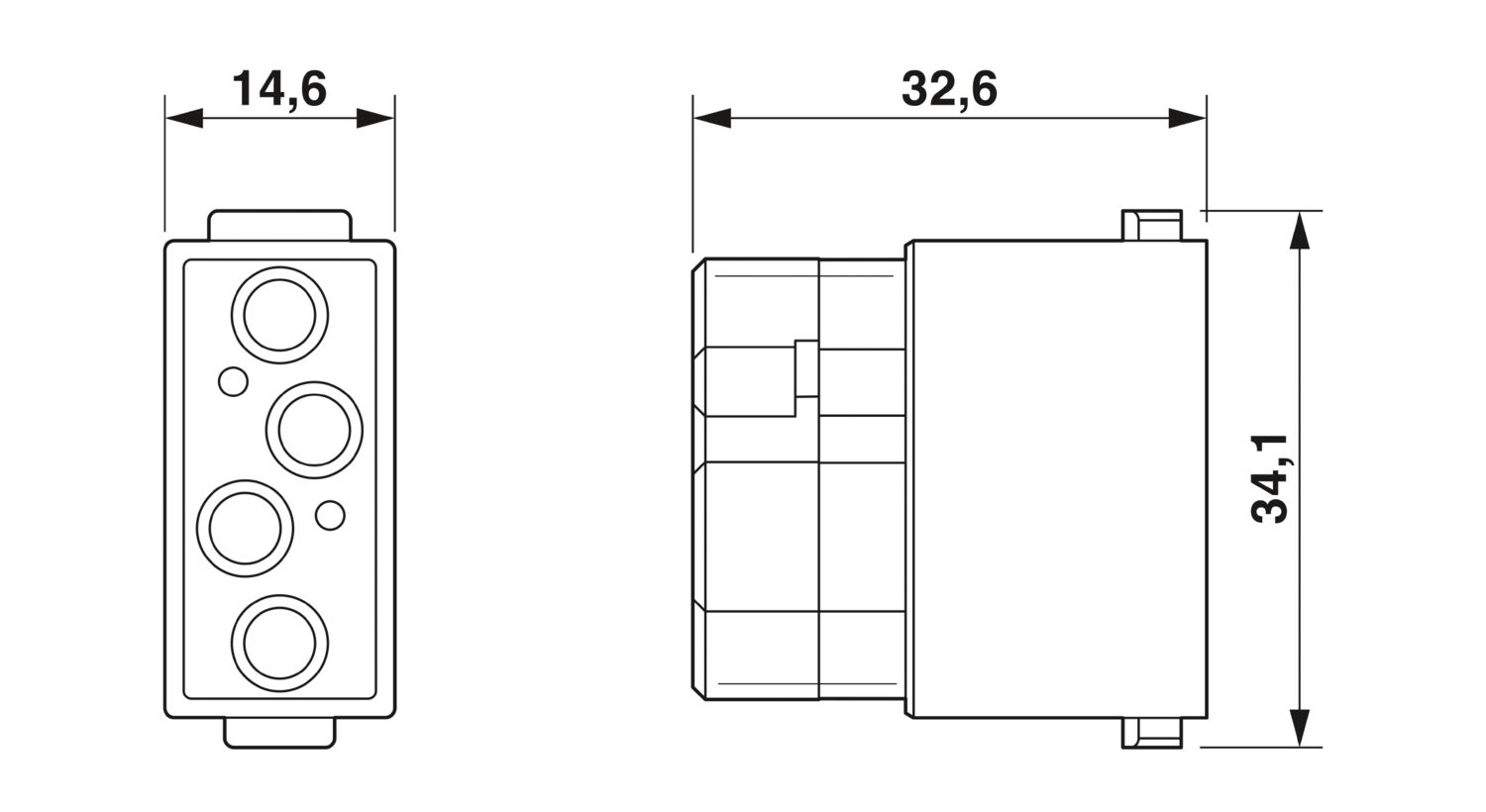

Dimensional drawing |
|
Width | 34.2 mm |
Height | 32.6 mm |
Length | 14.6 mm |
Mechanical characteristics | |
Contact diameter | 4.8 mm |
Flammability rating according to UL 94 | V0 |
Contact material | Copper alloy |
Contact surface material | Au |
Contact carrier material | PC |
Standards/regulations | PC |
Stripping length of the individual wire | 2.5 mm ±0.5 mm |
Mechanical data | |
Insertion/withdrawal cycles | ≥ 500 |
Ambient conditions | |
Ambient temperature (operation) | -40 °C ... 125 °C |
Testing | |
Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
For HC-M-04-ST-KOAX... contacts |
Item number | 1417370 |
Packing unit | 5 pc |
Minimum order quantity | 5 pc |
Product key | AF7ACE |
GTIN | 4055626112527 |
Weight per piece (including packing) | 7.18 g |
Weight per piece (excluding packing) | 7.1 g |
Customs tariff number | 85389099 |
Country of origin | PL |
ECLASS
ECLASS-13.0 | 27440217 |
ETIM
ETIM 9.0 | EC000438 |
UNSPSC
UNSPSC 21.0 | 39121400 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes (No exemptions) |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
EF3.0 Climate Change | |
CO2e kg | 0.081 kg CO2e |
