The safety module is an input module from the Axioline F product range for use in a SafetyBridge technology V3 system. The safety module can be used as part of an Axioline F station at any point within an EtherCAT®, EtherNet/IP™, Sercos, Modbus, PROFINET or PROFIBUS system. The module has four safe digital inputs for two-channel assignment or eight safe digital inputs for single-channel assignment. Depending on the installation and parameterization, in the SafetyBridge technology V3 system the safety module can achieve the following safety integrity:
- Up to SIL 3 according to standard EN 61508
- Up to SIL 3 according to standard EN IEC 62061
- Up to Cat. 4/PL e according to standard EN ISO 13849-1

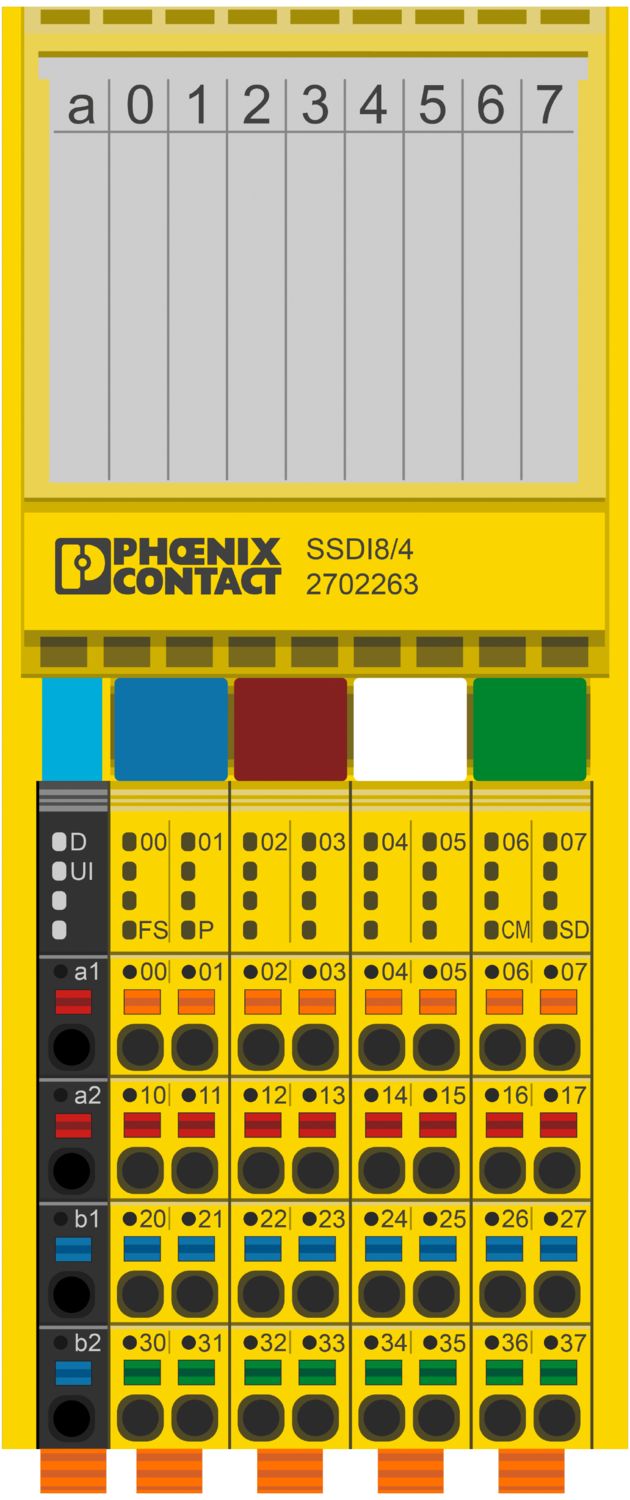

AXL F SSDI8/4 1F
-
Safety module
2702263
Axioline F, Digital input module, Functional safety, SafetyBridge technology, Digital inputs: 4 (for 2-channel assignment), 8 (for 1-channel assignment), 24 V DC, connection technology: 2-, 3-, 4-conductor, degree of protection: IP20
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 53.6 mm |
| Height | 126.1 mm |
| Depth | 54 mm |
| Note on dimensions | Housing dimensions |
| Note on application | |
| Note on application | Only for industrial use |
| Axioline F local bus | |
| No. of channels | 1 |
| Connection method | Bus base module |
| Module | |
| Input address area | 8 Byte |
| Output address area | 8 Byte |
| Required parameter data | 1 Byte |
| Required configuration data | 7 Byte |
| Digital: | |
| Input name | Digital inputs |
| Description of the input | IEC 61131-2 type 3 |
| Number of inputs | 4 (for 2-channel assignment) |
| 8 (for 1-channel assignment) | |
| Cable length | max. 1000 m (200 m from the clock output to the safe input (total based on forward and return path)) |
| Connection method | Push-in connection |
| Connection technology | 2-, 3-, 4-conductor |
| Input voltage | 24 V DC (via clock outputs T1 and T2 or external supply) |
| Input voltage range | -3 V DC ... 30.2 V DC |
| Nominal input voltage UIN | 24 V DC |
| Nominal input current at UIN | typ. 4.2 mA |
| Typical input current per channel | 4.2 mA |
| Input filter time | 1.5 ms |
| 3 ms (Default) | |
| 5 ms | |
| 15 ms | |
| Product type | I/O component |
| Product family | Axioline F |
| Application | Functional safety |
| SafetyBridge technology | |
| Type | modular |
| Transmission medium | Copper |
| Potentials | |
| Protective circuit | Protection against polarity reversal, EMC protective circuit, undervoltage detection |
| Potentials: Axioline F local bus supply (UBus) | |
| Supply voltage | 5 V DC (via bus base module) |
| Current draw | max. 310 mA |
| typ. 280 mA (all inputs set; supply by UI of 19.2 V DC ... 30 V DC) | |
| Potentials: Supply for digital input modules (UI) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30.2 V DC (including all tolerances, including ripple) |
| Current draw | typ. 9 mA (all inputs set; supply from UI with 30 V DC; without supply to the sensors via clock supplies T1 and T2) |
| Connection technology | |
| Connection name | Axioline F connector |
| Conductor connection | |
| Connection method | Push-in connection |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Axioline F connector | |
| Connection method | Push-in connection |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -35 °C ... 60 °C (Mounting position: any) |
| Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 108 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 75 % (on average, 85% infrequently, non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 75 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
BSH
Approval ID: 840Functional Safety
Approval ID: 968/FSP 2449.00/22cULus Listed
Approval ID: E238705
Your advantages
Cost-effective system configuration, as no safety PLC or safe fieldbus system is required
Flexible use, thanks to compatibility with all bus couplers from the Axioline F range
Reduced installation time, thanks to fast wiring and easy handling
Easy configuration using the free SAFECONF software
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
