VIP/S/D25M/BASE 1-8/L/C/EX
-
Base module
2906595
8-channel VIP I/O marshalling base element for universal use. All connections as screw connection technology. This module with the D-SUB 25 connector is pin compatible with the Foxboro I/A series DCS.
This product needs further products for operation.
Mandatory accessories
Product details
Your advantages
Integrated carrier for IOA insertion and retention
Screw-clamp field connections
Power bus terminals with redundancy

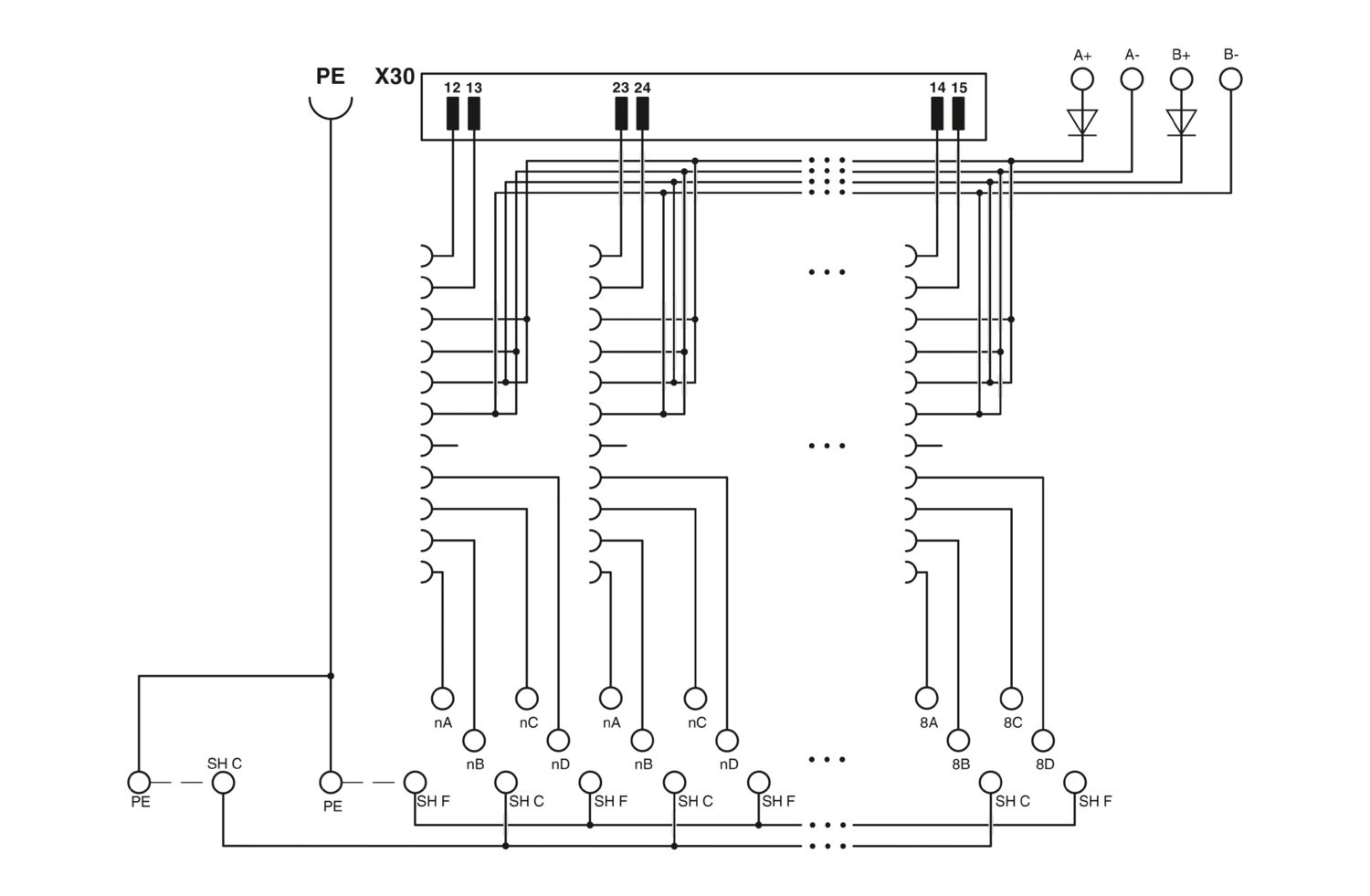

Each channel has four connections (A, B, C, D) and multiple shield options
Channels for marking accessories
Integrated DIN rail ground foot
Rugged metal DIN rail foot for ease of installation or removal from the rail
Terminals for discrete wiring or cable connection
