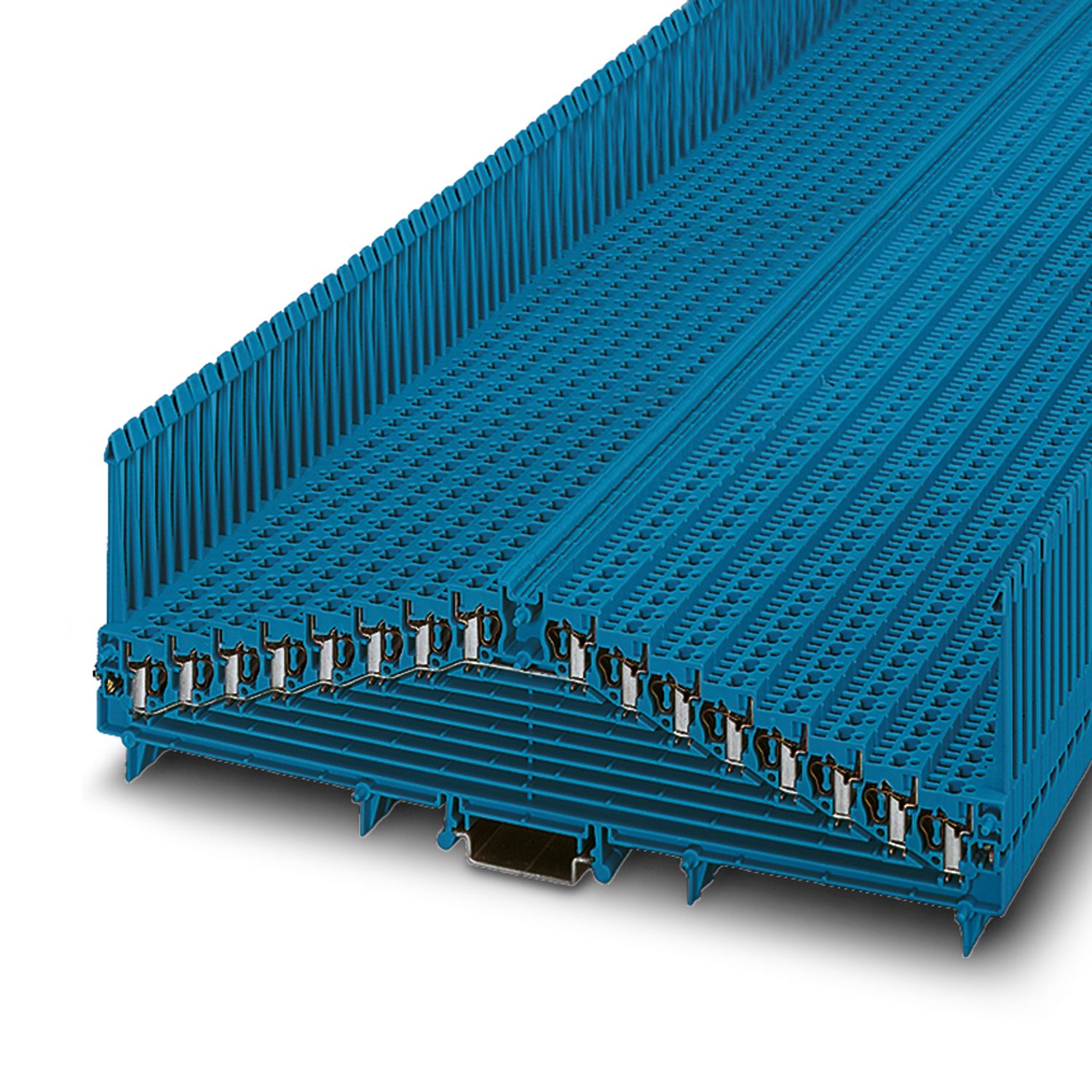

ZRV 8-PV BU
-
Potential distributors
3029321
Potential distributors, nom. voltage: 250 V, nominal current: 17.5 A, connection method: Spring-cage connection, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, Rated cross section: 1 mm2, cross section: 0.14 mm2 - 1.5 mm2, mounting: NS 35/7,5, NS 35/15, color: blue
Product details
Product type | Potential distributor |
Number of connections | 32 |
Number of rows | 8 |
Potentials | 8 |
Insulation characteristics | |
Overvoltage category | III |
Degree of pollution | 3 |
Rated surge voltage | 4 kV |
Number of connections per level | 32 |
Nominal cross section | 1 mm² |
1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level | |
Connection method | Spring-cage connection |
Stripping length | 8 mm |
Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross-section rigid | 0.14 mm² ... 1.5 mm² |
Cross section AWG | 26 ... 14 (converted acc. to IEC) |
Conductor cross-section flexible | 0.14 mm² ... 1 mm² |
Conductor cross-section, flexible [AWG] | 26 ... 16 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 0.75 mm² |
Flexible conductor cross-section (ferrule with plastic sleeve) | 0.14 mm² ... 0.75 mm² |
Nominal current | 17.5 A |
Maximum load current | 17.5 A (with 1.5 mm² conductor cross-section) |
Nominal voltage | 250 V |
Nominal cross section | 1 mm² |
Width | 7.62 mm |
End cover width | 7.62 mm |
Color | blue |
Flammability rating according to UL 94 | V0 |
Insulating material group | IIIa |
Insulating material | PC |
Mechanical data | |
Open side panel | Yes |
Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5 |
NS 35/15 |
Item number | 3029321 |
Packing unit | 10 pc |
Minimum order quantity | 10 pc |
Note | Made to order (non-returnable) |
Sales key | BE06 |
Product key | BE6211 |
GTIN | 4017918188870 |
Weight per piece (including packing) | 67.698 g |
Weight per piece (excluding packing) | 57.12 g |
Customs tariff number | 85369010 |
Country of origin | PL |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes (No exemptions) |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
