Printers

With our industrial printers, you can create markings more easily than ever before: whether using laser, UV LED, or thermal transfer technology. The wide range of printing and marking systems that we offer is guaranteed to provide you with the right solution for marking terminal blocks, conductors and cables, devices, and systems. All printers are particularly easy to use.

The advantages of our industrial printers

Our industrial printers present you with versatile solutions for a wide range of applications. They all feature the following advantages:

Intuitive menu navigation via uniform touch displays
The PROJECT complete software controls all marking systems
Prevention of printing errors, thanks to automatic material detection
High-quality results with optimally coordinated components
Time savings with rapid integration of the printers into existing structures

New products

THERMOMARK E SERIES thermal transfer printer

E-WMS shrink sleeves for cable and wire marking

Self-laminated wire-wrap labels with protective laminate E-WML

Thermal transfer printer for industrial identification

Roll printer for all materials

Take advantage of the flexibility of the roll printers: Use the devices as standard printers for printing on any roll material, combine them with the E.CUTTER(/P) for cutting/perforating materials in continuous format, or connect the printers with one of the THERMOMARK E SERIES applicators to create efficient printing and application systems.

Main features

Available in 300 and 600 dpi print resolution
THERMOMARK E.300 and E.600 are compatible with THERMOMARK E.WIRE, THERMOMARK E.SLEEVE, and THERMOMARK E.VARIO applicators
THERMOMARK E.300 D and THERMOMARK E.600 D are also compatible with THERMOMARK E.WRAP

Your benefits

Easily transform the standard printer into an efficient printing and application system: Compatible with all THERMOMARK E SERIES applicators
Suitable for all roll materials in the MARKING system product portfolio
Easy processing of any materials in continuous format by using E.CUTTER and E.CUTTER/P
4.3″ LCD multicolor touch display: troubleshooting videos, messages in real time
300 and 600 dpi for all industrial requirements
Robust industrial design for large print volumes
Efficient thermal transfer printing

To the product list

Applicator for movable cable markers

Automated printing and application of cable identification

The THERMOMARK E.WIRE applicator implements cable markers that can be moved radially and axially. The welded seam ensures that the marker is captive. The continuous format covers all diameters between 1.8 mm and 5.6 mm with just one single material available in various widths.

Main features

Printing and application in a single automated process step
One material for all diameter ranges (1.8 mm to 5.6 mm)
Automatic measurement of the diameter of the cylindrical exposed conductive part

Your benefits

Up to 70% time savings compared to manual marking and application processes that involve shrink sleeves or wire-wrap labels
One material for all diameter ranges: Continuous material used in various widths
Easy operation: Automatic measurement of the diameter of the cylindrical exposed conductive part
Maximum flexibility: Marking can be moved radially and axially
The welded seam ensures captive markings
For cylindrical exposed conductive parts, single wires, cables, and cable bundles

To the product list

Applicator for shrink sleeves

Automatically print and apply shrink sleeves

The THERMOMARK E.SLEEVE processes continuous shrink sleeves and cuts them individually to the desired length. In addition, the applicator opens the shrink sleeve so it can be slipped onto cables and lines very easily.

Main features

Printing and application in a single automated process step
Processes continuous shrink sleeves for diameters between 0.8 mm and 8.5 mm
Realizes individual marker lengths from 15 mm to 51 mm

Your benefits

Up to 75% time savings compared to manual marking and application processes with shrink sleeves
Cost efficiency by using continuous shrink sleeves
Easy operation: Automatic object detection by photoelectric barriers and optimized cable entry
Efficient handling: Automatic adjustment to the respective diameter of the cylindrical exposed conductive part eliminates setup effort
For cylindrical exposed conductive parts, conductors, and cables

To the product list

Applicator for adhesive labels with protective laminate

Automated printing and application of wire-wrap labels

The THERMOMARK E.WRAP applicator applies wire-wrap labels to cylindrical exposed conductive parts automatically – and with consistently high quality. For particularly resistant identification, a protective laminate covers the printed surface.

Main features

Printing and application in a single automated process step
Wire-wrap labels for all diameters between 2 ... 16 mm
Positioning of the marker defined by alignment with the measuring scale

Your benefits

Up to 60% time savings compared to manual printing and application processes with self-laminated wire-wrap labels
Consistently high application quality: Positive influence on the resistance and durability of the marking
Easy handling: Positioning of the marker defined by orientation to the measuring scale
For indoor and outdoor applications: High resistance due to protective laminate
For cylindrical exposed conductive parts, conductors, and cables

To the product list

Applicator for terminal markings

Print and cut continuous terminal markers

The THERMOMARK E.VARIO applicator marks entire terminal strips with just two materials in continuous format for high and flat marking grooves. Due to the continuous format, all widths between 3.5 mm and 1,000 mm can be realized – regardless of the number of different pitches.

Main features

Processes continuous terminal markers for high and flat marking grooves
Any pitches between 3.5 mm and 1,000 mm
Punching or perforation in different pitches in accordance with individual requirements

Your benefits

Up to 70% time savings when marking in different pitches
Only two materials: Marking of the entire terminal strip
Innovative geometry: Perfect fixing of the material in the marking groove as well as easy engagement and separation of the individual markers
Simple and efficient terminal block marking: Automatic assignment of perforation cuts based on data from the engineering software

To the product list

Movable cable markers

Marking material for automated processing

The E-WM... marking material is designed for processing with the THERMOMARK E.WIRE applicator. The E.WIRE processes the continuous material into radially and axially movable markers that can be printed on three sides. The welded seam ensures that the marker is captive.

Main features

Markers can be moved radially and axially
One continuous material for all diameter ranges (1.8 mm to 5.6 mm)
Three different widths: 15, 18, and 23 mm
Temperature range: -40°C ... 70°C

Your benefits

One material for all diameter ranges
Good visibility due to three-sided printing and mobility
Captive marking thanks to the welded seam
Different widths for various installation and marking scenarios
For cylindrical exposed conductive parts, single lines, cables, and cable bundles

To the product list

Shrink sleeves for cable identification

Marking material for automated processing

The E-WMS... shrink sleeve is designed for processing with the THERMOMARK E.SLEEVE applicator. The continuous format allows individual marking lengths. After the printing and application process, there is the option of shrinking the shrink sleeve.

Main features

Continuous shrink sleeves for diameters between 0.8 mm and 8.5 mm
Individual marking lengths possible from 15 mm to 51 mm
Temperature range: -40°C ... 125°C
Approvals: UL 224

Your benefits

Cost efficiency by using continuous shrink sleeves
High flexibility, as individual marking lengths can be realized
Optionally shrinkable by any manual method for fixing the position in place
Widely used and proven worldwide in control cabinet and machine building, the Oil and Gas industry, and the railroad industry
For cylindrical exposed conductive parts, single wires, and cables

To the product list

Wire-wrap labels for cable identification

Marking material for automated processing

The E-WML wire-wrap labels are designed for processing with the THERMOMARK E.WRAP applicator. For this purpose, the labels are placed in a row on the material roll. For particularly resistant identification, a protective laminate covers the printed surface.

Main features

Self-laminated wire-wrap labels with protective laminate
Diameter range: 2 mm ... 16 mm
Temperature range: -50°C ... 110°C
Approvals: UL 969

Your benefits

For indoor and outdoor applications: High resistance to dirt and abrasion due to protective laminate
Firmly defined positioning of labels thanks to the gluing system
Large diameter range with many different applications inside and outside the control cabinet
The wire-wrap labels do not create any additional volume, so the cable can also be pulled through cable ducts, for example
For cylindrical exposed conductive parts, single wires, and cables

To the product list

Continuous terminal markers

Marking material for automated processing

The E-TM.../E-TMF... terminal block markers are designed for processing with the THERMOMARK E.VARIO applicator. Thanks to the continuous format, the entire terminal strip can be marked with just two materials for the high and the flat marking groove.

Main features

Continuous format for high and flat marking grooves
Any pitch between 3.5 mm and 1,000 mm
Temperature range: -40°C ... 85°C
Approvals: UL 94 V2

Your benefits

Mark complete terminal strips with only two materials: One for the high and one for the flat marking groove
The continuous format makes it possible to realize any pitch between 3.5 mm and 1,000 mm
The innovative geometry ensures materials that are perfectly fixed in place and which engage easily
Easy and convenient separation of individual markers thanks to flexible backing material

To the product list

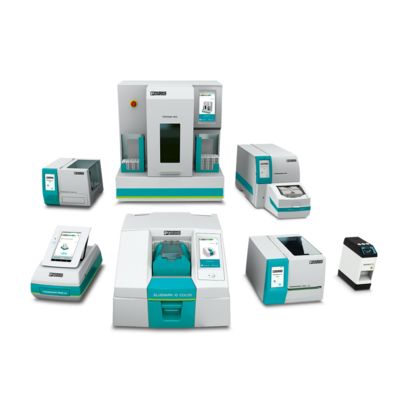

MARKING system industrial printers

Experience how easy working with the MARKING system industrial printers is. Create your industrial identification labels with intuitive marking software, various printing systems, and corresponding materials for all applications.

MARKING system industrial printers YouTube

Industrial marking for every application

The right industrial printer is available for all of your marking requirements. With the various marking technologies, you can create markings that are ideally suited for your application.

Laser marking for the highest standards with the TOPMARK NEO
The BLUEMARK ID systems produce high-quality monochrome and color markings with UV LED printing
Efficient thermal transfer printing for a wide range of applications is achieved with the THERMOMARK CARD 2.0 printer for card and sheet formats, the THERMOMARK ROLL 2.0 roll printers, and the THERMOMARK ROLLMASTER for large quantities of materials
The THERMOMARK PRIME, THERMOMARK GO, and THERMOMARK GO.K mobile thermal transfer printers enable flexible printing on site
