FLM TEMP 4 RTD M12
-
Distributed I/O device
2736819
The local bus device has 4 inputs for resistive temperature sensors. Functions: 180 µs A/D conversion time, measured value output in 16-bit values, 500 kbaud/2 Mbaud selection, PCP configuration, short-circuit/overload protection, M12 fast connection technology.
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 70 mm |
| Height | 178 mm |
| Depth | 50 mm |
| Drill hole spacing | 168 mm |
| Note on application | |
| Note on application | Only for industrial use |
| Color | anthracite |
| Fieldline local bus | |
| Connection method | M12 connector, B-coded |
| Transmission speed | 500 kbps / 2 Mbps |
| Transmission physics | Copper |
| Module | |
| ID code (dec.) | 223 |
| ID code (hex) | DF |
| Length code (hex) | 05 |
| Length code (dec) | 05 |
| Process data channel | 80 bit |
| Input address area | 10 Byte |
| Output address area | 10 Byte |
| Register length | 96 bit |
| Required parameter data | 17 Byte |
| Required configuration data | 5 Byte |
| Analog: | |
| Number of inputs | max. 4 (for resistance temperature detectors) |
| Connection method | M12 connector |

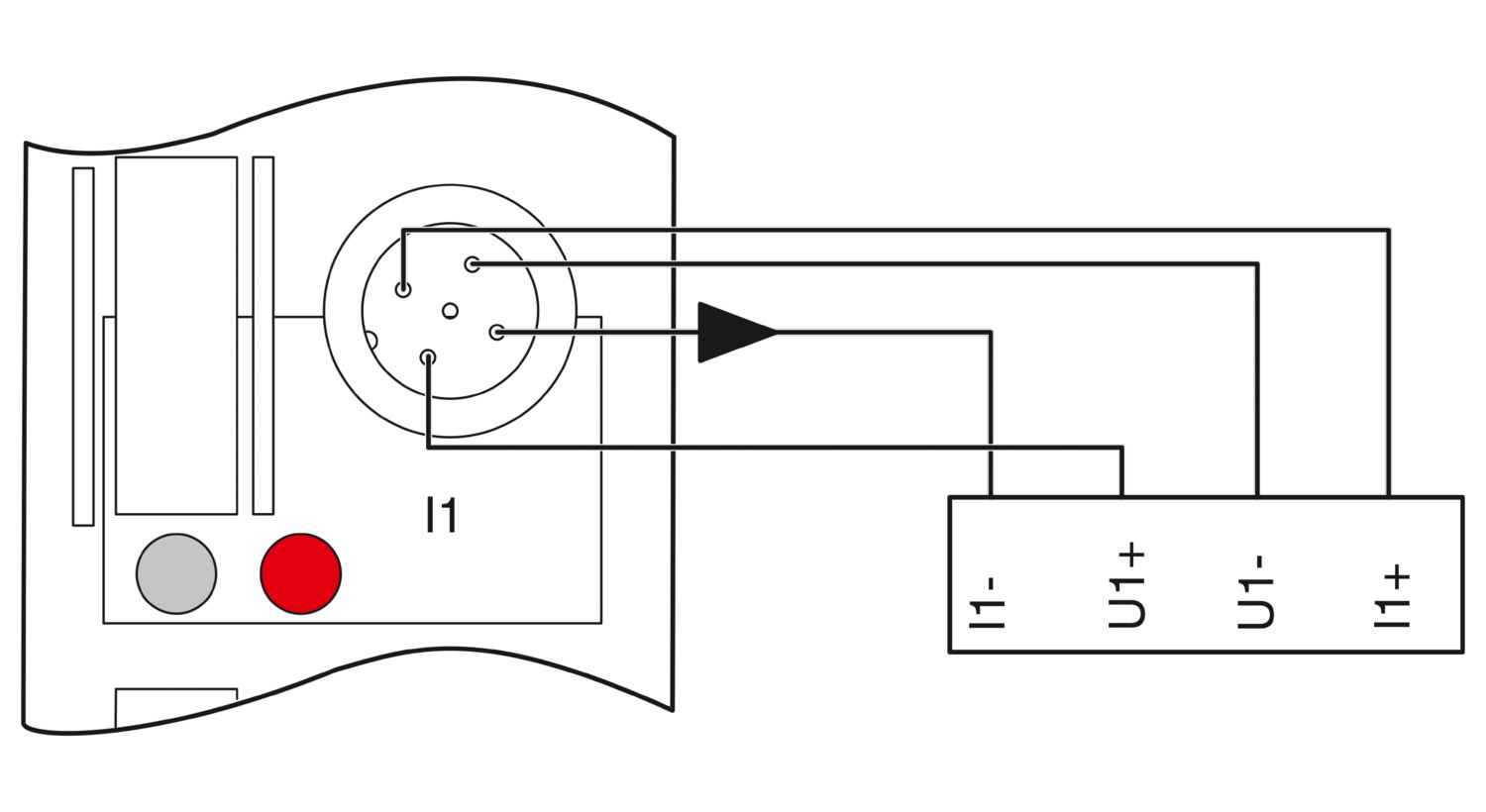

| Connection technology | 2-, 3-, 4-conductor (shielded) |
| Analog | |
| Number of inputs | max. 4 (for resistance temperature detectors) |
| Connection method | M12 connector |
| Connection technology | 2-, 3-, 4-conductor (shielded) |
| Sensor types (RTD) that can be used | Pt, Ni, KTY sensors, linear resistors |
| Input filter time | 4.1 ms (default setting or 0.6 ms; adjustable for each channel) |
| Process data update | Dependent on the connection method |
| Product type | I/O component |
| Type | modular |
| Potentials | |
| Voltage supply UL | 24 V DC |
| Power supply at UL | max. 4 A |
| Current consumption from UL | max. 100 mA (At 2 Mbaud) |
| typ. 70 mA | |
| Voltage supply US | 24 V DC |
| Power supply at US | max. 4 A |
| Current consumption from US | typ. 5 mA (plus power supply for sensors) |
| max. 400 mA | |
| Supply: Module electronics | |
| Supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
| Connection method | M12 connector |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP65/IP67 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) | 95 % |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | Panel mounting |
Your advantages
Flexible power supply concept
SPEEDCON fast locking system
Diagnostic and status indicators
Short-circuit and overload protection
Consistent connection via M12 connectors
