  3. High Current Connectors - HV-M10-HR

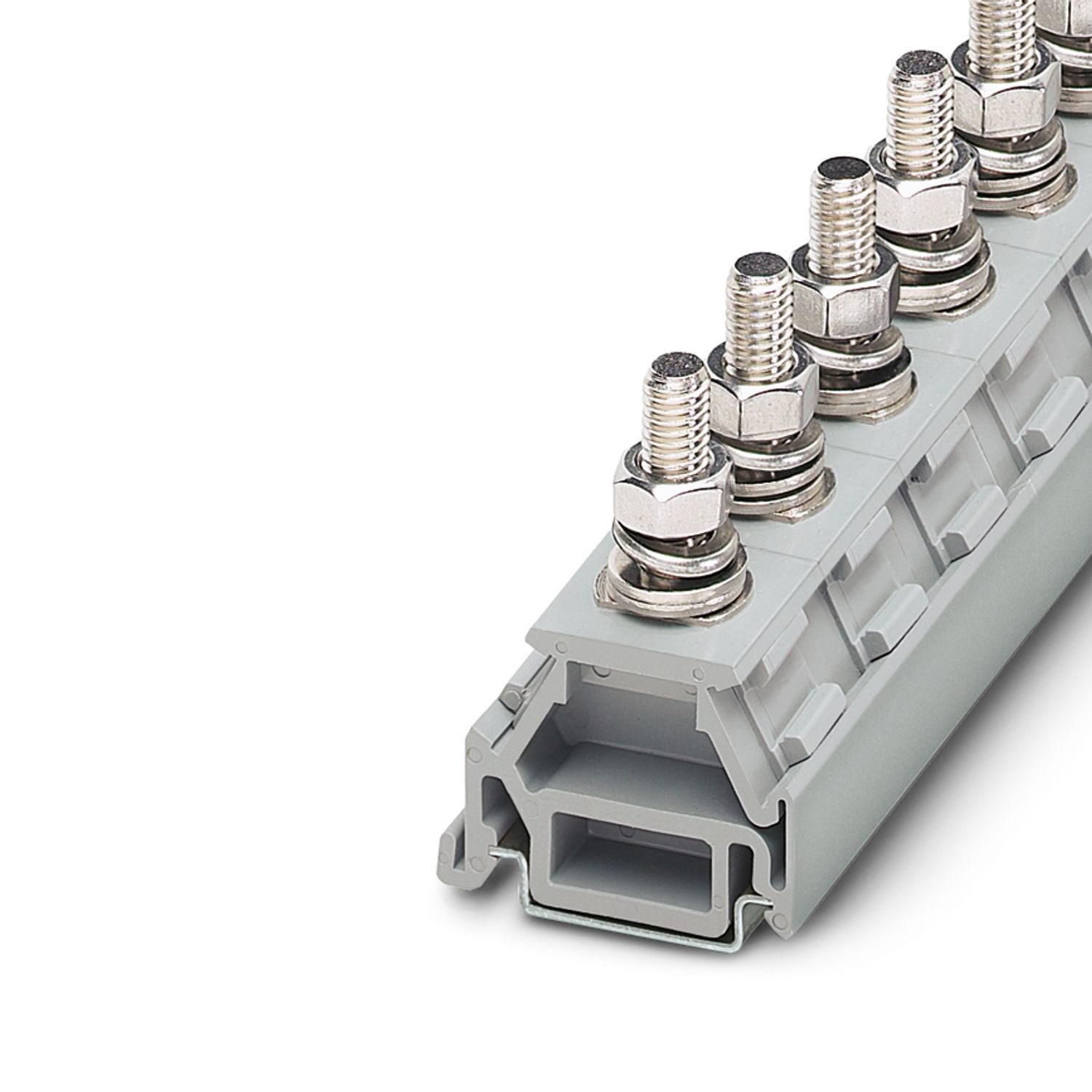

The figure shows a similar product

High Current Connectors - HV-M10-HR
0713054

High Current Connectors, nom. voltage: 1250 V, nominal current: 309 A, connection method: Bolt connection, mounting type: NS 35/15, color: gray

Product Details

Product type Bolt connection terminal block
Number of positions 1
Number of connections 1
Number of rows 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3
Rated surge voltage 8 kV
Number of connections per level 1
Level 1
Screw thread M10
Tightening torque 10 ... 18 Nm
Conductor cross section flexible 6 mm² ... 150 mm²
Conductor cross section, flexible [AWG] 10 ... 300 kcmil
Nominal current 309 A
Maximum load current 309 A
Nominal voltage 1250 V
Width 32.6 mm
Height NS 35/15 66.5 mm
Height NS 35/7,5 59 mm
Length 43.5 mm
Bolt length 25 mm
Color gray
Flammability rating according to UL 94 V0
Insulating material group II
Insulating material PA-GF
Mechanical data
Open side panel No
Connection in acc. with standard DIN 46235:1983-07
Mounting type NS 35/15
Item number 0713054
Packing unit 25 pc
Minimum order quantity 25 pc
Sales Key B04
Product Key BE4211
Catalog Page Page 257 (CL-2007)
GTIN 4017918980818
Weight per Piece (including packing) 60.888 g
Weight per Piece (excluding packing) 47.28 g
Customs tariff number 85369010
Country of origin NL
China RoHS Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”
