E S6 A 100X100X80
-
Empty enclosure
0899000
Empty enclosure, material: Stainless steel, 316L/1.4404, surface resistance: brushed, silver-colored, 100 mm x 100 mm x 80 mm, type of locking: Screw-on cover, scope of supply - ATD: Fixing angle with mounting screws, M12 grounding bolts, affixed externally, Installation notes, Fixing angle with mounting screws
Product details
| Notes on operation | Prepared for direct installation of a DIN rail |
| Product type | Terminal box |
| Scope of supply | Fixing angle with mounting screws |
| M12 grounding bolts, affixed externally | |
| Installation notes | |
| Type | 10 |
| Insulation characteristics | |
| Protection class | I |
| Maximum power dissipation | 3.7 W (T6 up to 40 °C) |
| 2.3 W (T6 up to 55 °C) | |
| 1.3 W (T6 up to 65 °C) | |
| 5.1 W (T5 up to 40 °C) | |
| 3.7 W (T5 up to 55 °C) | |
| 2.8 W (T5 up to 65 °C) | |
| 6 W (T4 up to 40 °C) | |
| 2.9 W (T4 up to 55 °C) | |
| 3.7 W (T4 up to 65 °C) |

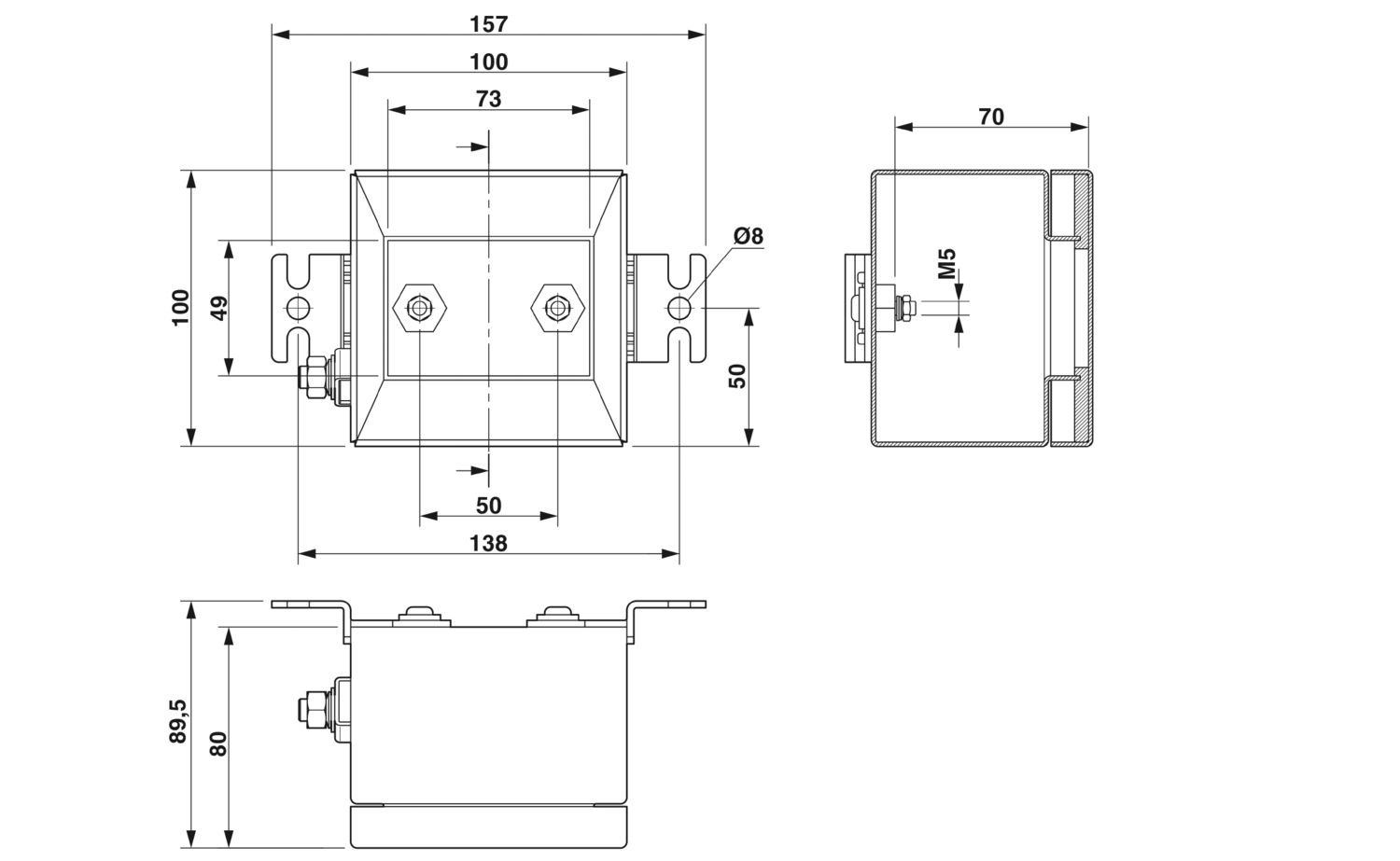

| Dimensional drawing |
|
| Width | 100 mm |
| Height | 100 mm |
| Depth | 80 mm |
| Clearance width, maximum DIN rail length | 90 mm |
| Drill hole spacing | 50 mm |
| Max. material thickness | 1.5 mm |
| Color | silver-colored |
| Material | Stainless steel, 316L/1.4404 |
| Seal material | Silicon |
| Surface characteristics | brushed |
| Note | 240 grain |
| General | |
| Type of locking (GRP) | Screw-on cover Allen screws |
| Technical data | |
| Drill hole spacing | 50 mm |
| Degree of protection (IP code) | |
| Degree of protection | IP66 |
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 135 °C |
| Assembly note | External fixing clips |
Your advantages
Innovative product range of high-quality stainless steel housings as the basis for individual terminal boxes
Reduced assembly and approval effort thanks to ready-equipped terminal boxes
Flange plates possible on four sides of the housing, including seal protection
Housing adjustments using threads, bore holes, and rectangular cutouts with consideration given to normative specifications
