C PX A 200X300X168
-

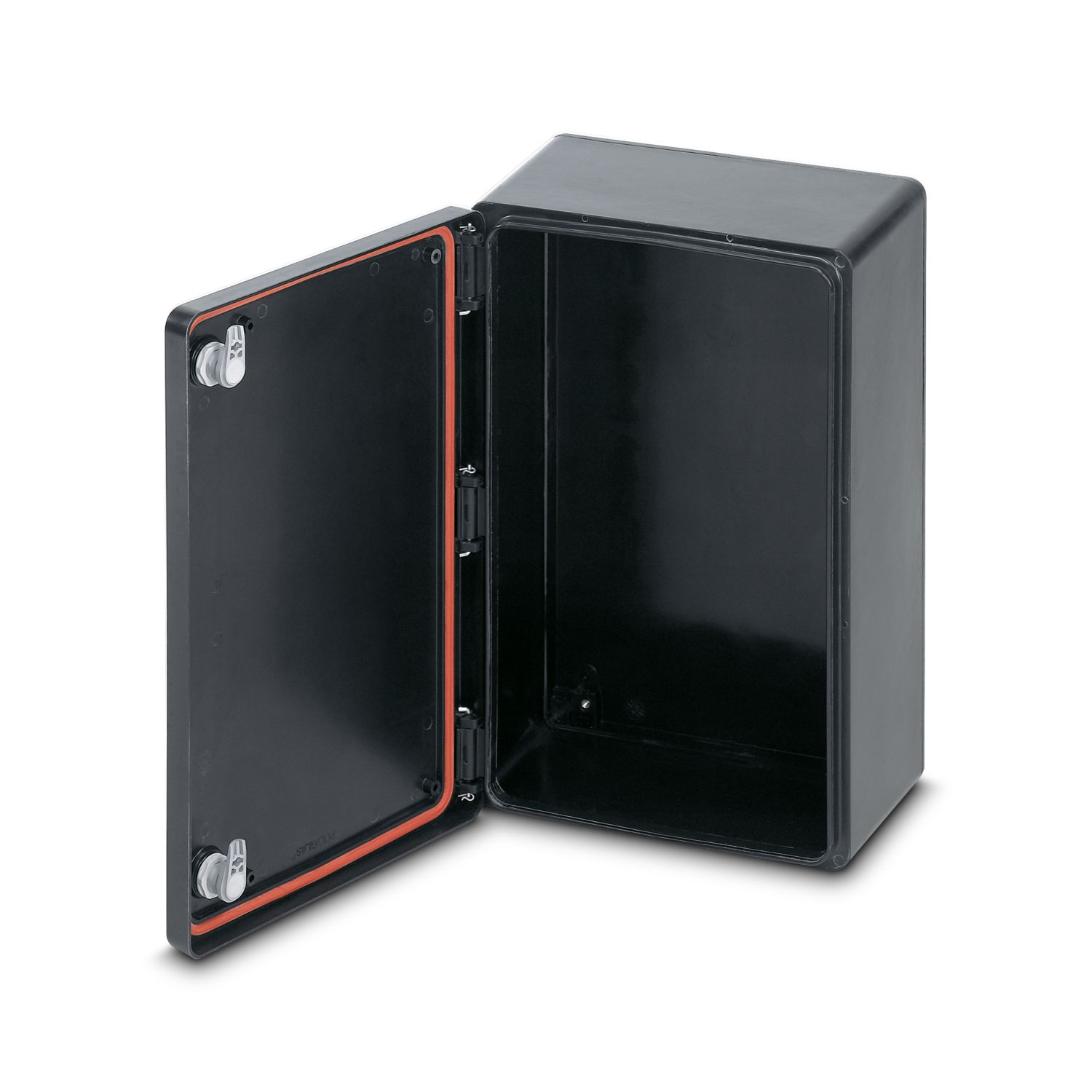

Empty enclosure
0899332
Empty enclosure, material: Glass-fiber-reinforced polyester with added graphite, black, 300 mm x 200 mm x 171 mm, type of locking: Door, scope of supply - ATD: Door hinge with 8 mm square lock, Door hinge with 8 mm square lock
This product needs further products for operation.
Mandatory accessories
Product details
| General | Mounting panel required |
| Product type | Terminal box |
| Type | Ex empty enclosure with door |

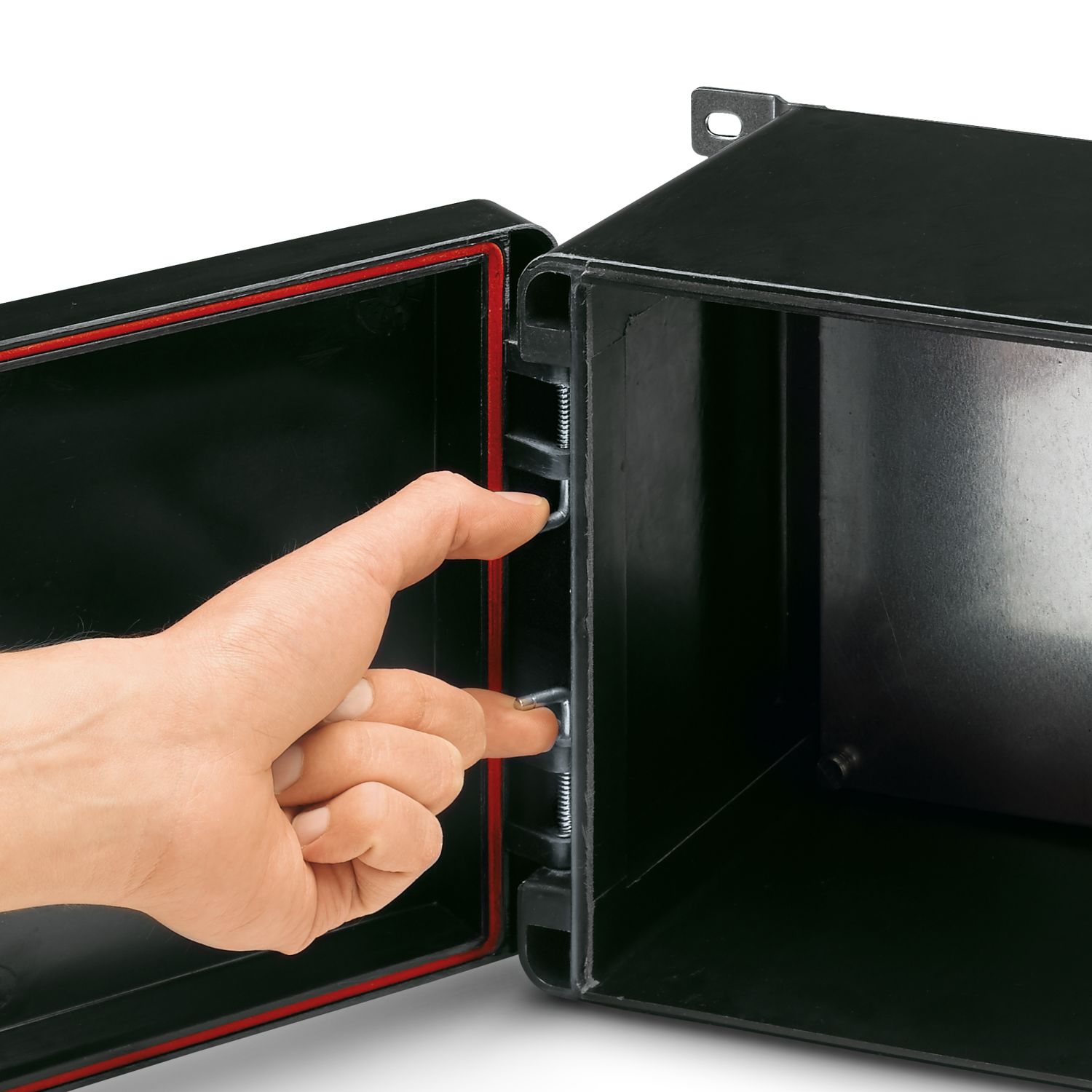

| Scope of delivery | Door hinge with 8 mm square lock |
| Data management status | |
| Article revision | 00 |
| Insulation characteristics | |
| Protection class | II |

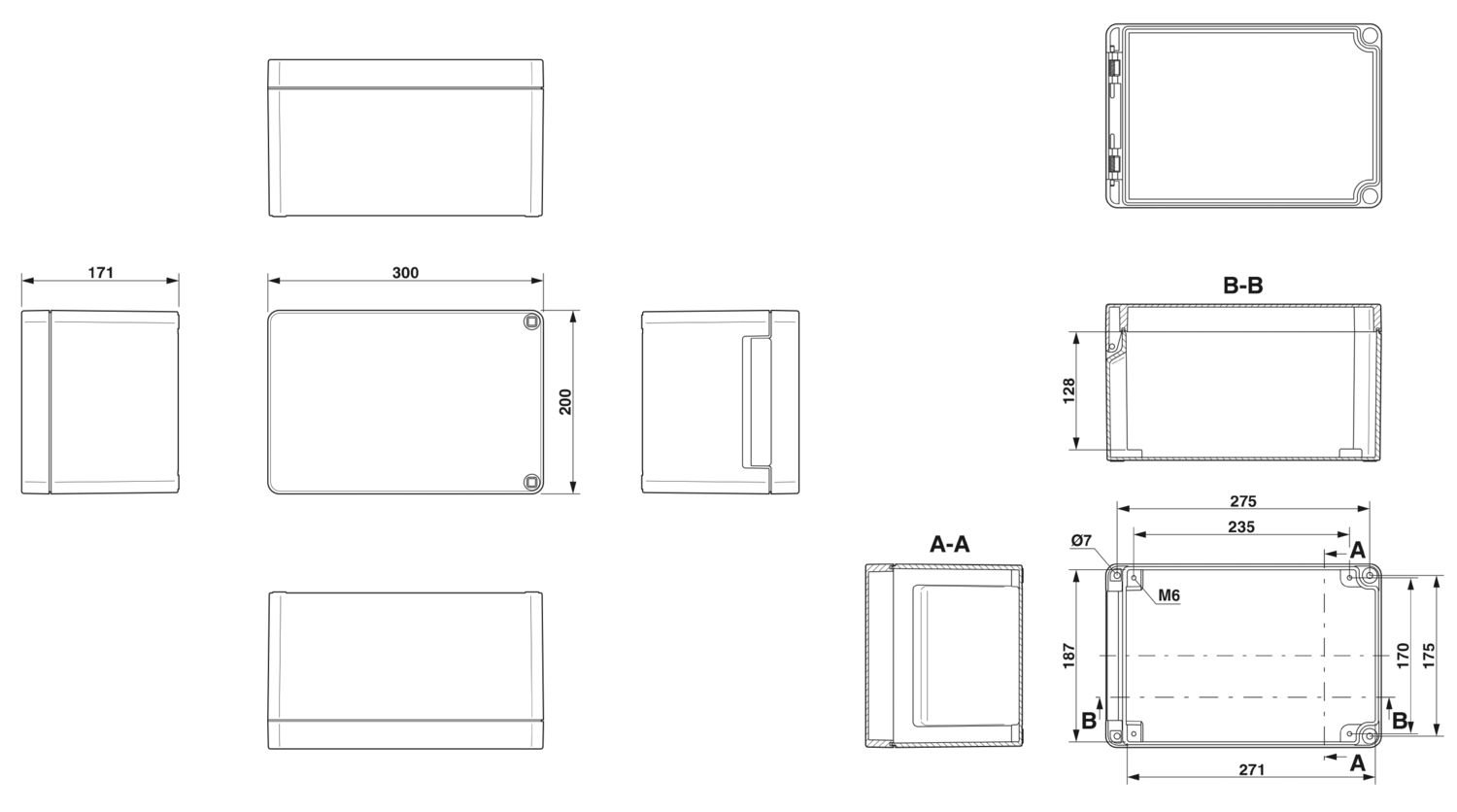

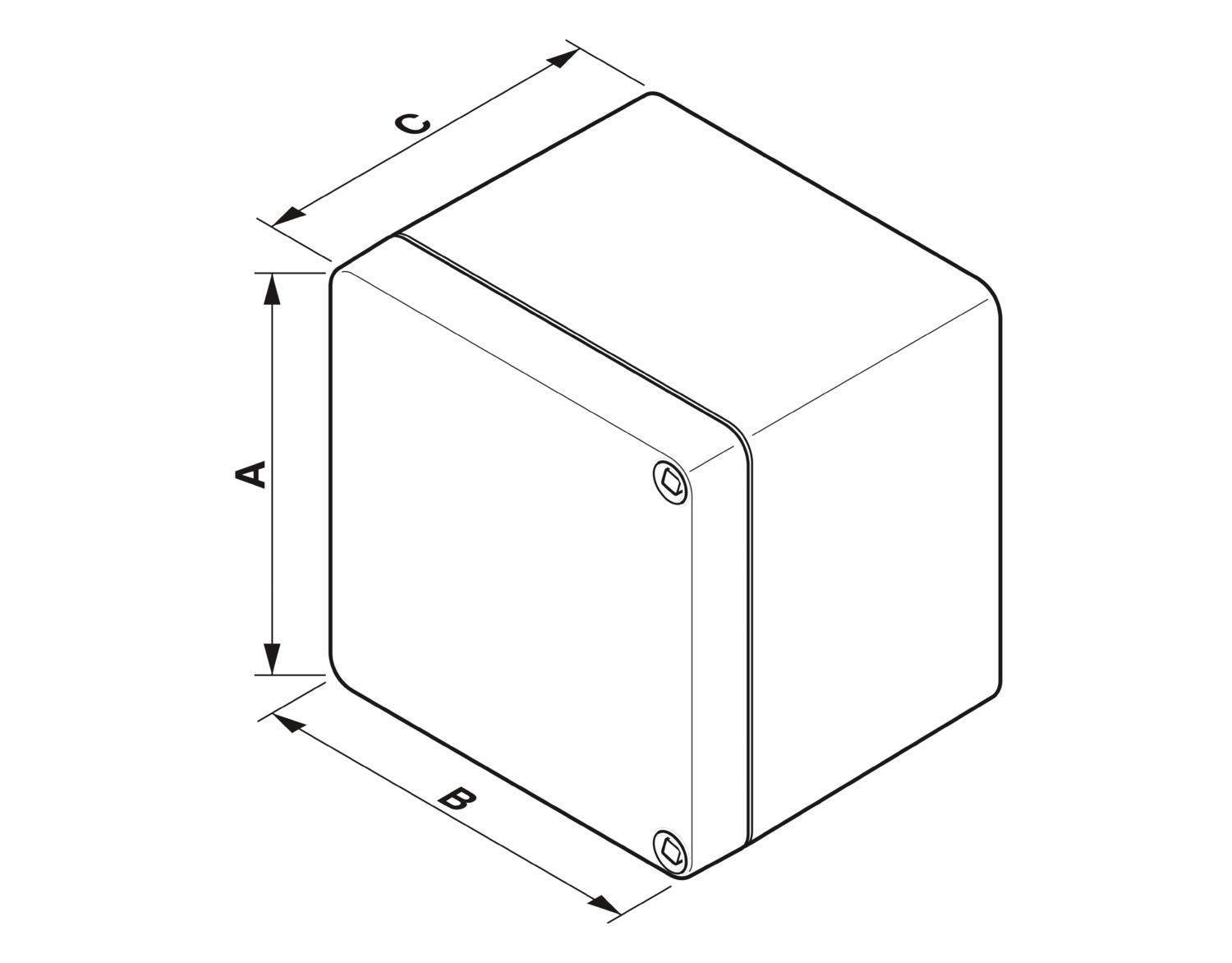

| Dimensional drawing |
|
| Width | 300 mm |
| Height | 200 mm |
| Depth | 171 mm |
| Clearance width, maximum DIN rail length | 251 mm |
| max. assembly length | 231 mm |
| Color | black |
| Material | Glass-fiber-reinforced polyester with added graphite |
| Flammability rating according to UL 94 | V0 |
| Seal material | Silicon |
| Components | halogen-free |
| General | |
| Type of locking (GRP) | Door Square lock |
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 127 °C |
| Assembly note | External fixing clips |
| External fixing clip not supplied as standard | |
| Direct DIN rail mounting | no |
| Useable DIN rail type | NS 35 |
