SAC-5PT-FB/2XMB PBDP SH
-
T distributor
1424711
T distributor, PROFIBUS DP (12 Mbps), 5-position, shielded, Socket straight M12, coding: B, on Plug straight M12, coding: B and Plug straight M12, coding: B
Product details
| Product type | T-distributor |
| Sensor type | PROFIBUS DP |
| Number of positions | 5 |
| No. of cable outlets | 2 |
| Shielded | yes |
| Coding | B |
| Thread type | M12 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 1 A (Contact 2 and 4) |
| 4 A (Contact 1 and 3) | |
| Transmission medium | Copper |
| Signal type/category | PROFIBUS DP, 12 Mbps |
| Status display | no |
| Status display present | no |

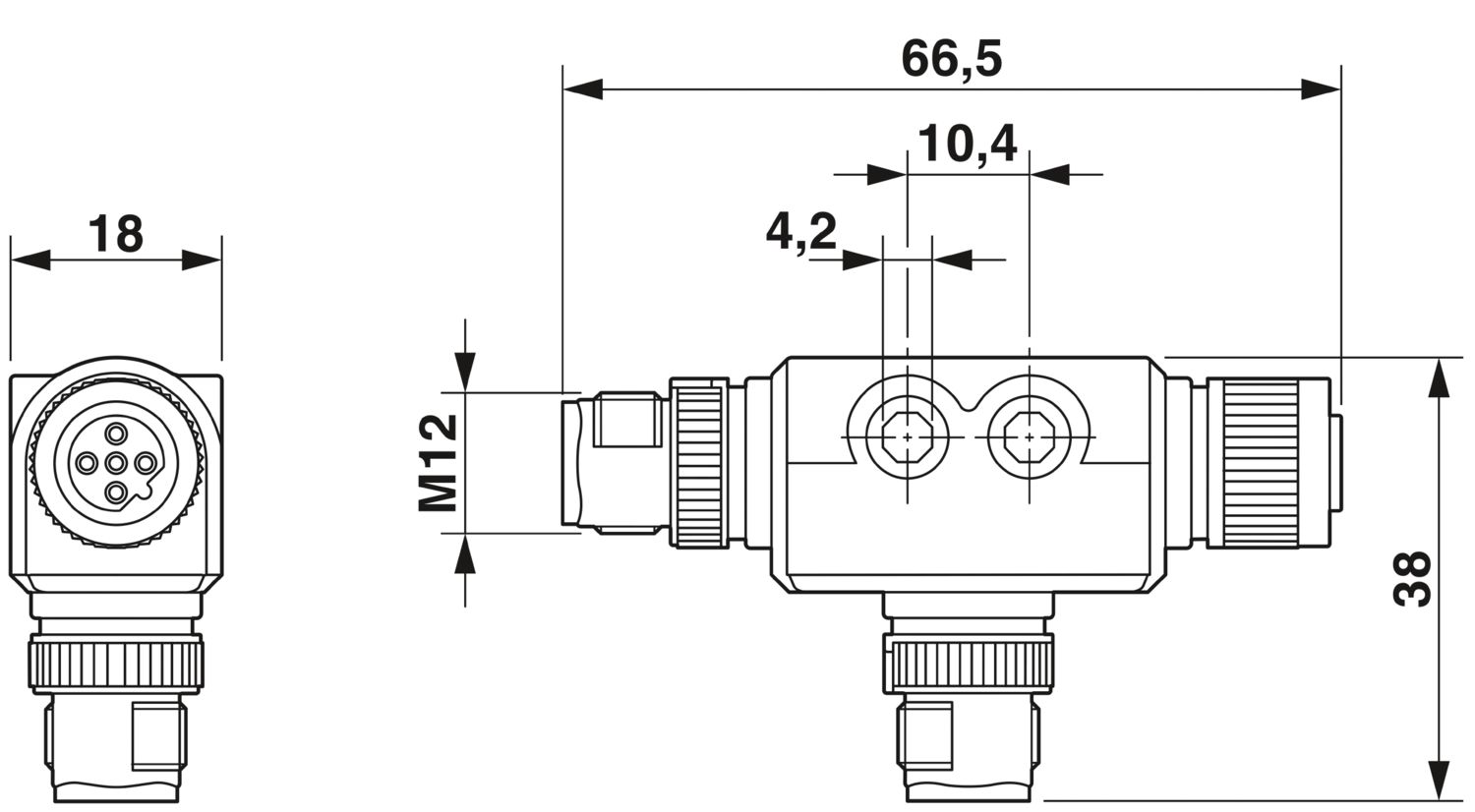

| Dimensional drawing |
|
| Height | 18 mm |
| Length | 66.5 mm |
| Material | PBT (Female connector contact carrier) |
| (Pin contact carrier) | |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Material of grip body | PBT |
| Contact material | CuZn (pin) / CuSn (socket) |
| Contact surface material | Ni/Au |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Connection 1 | |
| Type | Socket straight M12 |
| Coding type | B |
| Connection 2 | |
| Type | Plug straight M12 |
| Coding type | B |
| Connection 3 | |
| Type | Plug straight M12 |
| Coding type | B |
| Signal type/category | PROFIBUS DP, 12 Mbps |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) (male connector/female connector) | -25 °C ... 85 °C (Plug / socket) |
| Standard designation | M12 connector |
| Standards/specifications | according to IEC 61076-2-101 |
Your advantages
Safe use in the field, thanks to a high degree of protection
Reliable signal transmission – 360° shielding in environments with electromagnetic interference
