Ambient temperature (operation) (fixed installation)
-40 °C ... 70 °C (fixed installation)
Ambient temperature (operation) (flexible installation)
-10 °C ... 70 °C (flexible installation)
Ambient temperature (storage/transport)
-40 °C ... 80 °C
Altitude
≤ 2000 m
Operating voltage (AC)
≤ 30 V AC
Operating voltage (DC)
≤ 60 V DC
Nominal operating mode
100% operating factor
Current (Per path, 50°C)
≤ 1 A (Uncoiled, see derating)
Current (Per path, 70°C)
≤ 0.6 A (Uncoiled, see derating)
Supported controller EMERSON DeltaV
Suitable I/O card
VE4001S5T2B5
Cable length
variable
16X0.14 [PVC]
UL AWM Style
2464/1061
Number of positions
16
Shielded
no
Cable type
16X0.14 [PVC]
Conductor type
Round cable set
Conductor structure signal line
7x 0.16 mm
AWG signal line
26
Conductor cross section
16x 0.14 mm²
Wire diameter incl. insulation
1 mm ±0.03 mm
External cable diameter
6.80 mm ±0.4 mm
Outer sheath, material
Semi-rigid PVC
External sheath, color
gray
Conductor material
Tin-plated Cu litz wires
Cable resistance
≤ 145 Ω/km (20 °C)
Insulation resistance
≥ 20 MΩ*km (20 °C)
Smallest bending radius, fixed installation
58 mm
Smallest bending radius, movable installation
108 mm
Dynamic load capacity (bending)
Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
Halogen-free
no
Flame resistance
IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1
Resistance to oil
can withstand occasional splashes (raw cable)

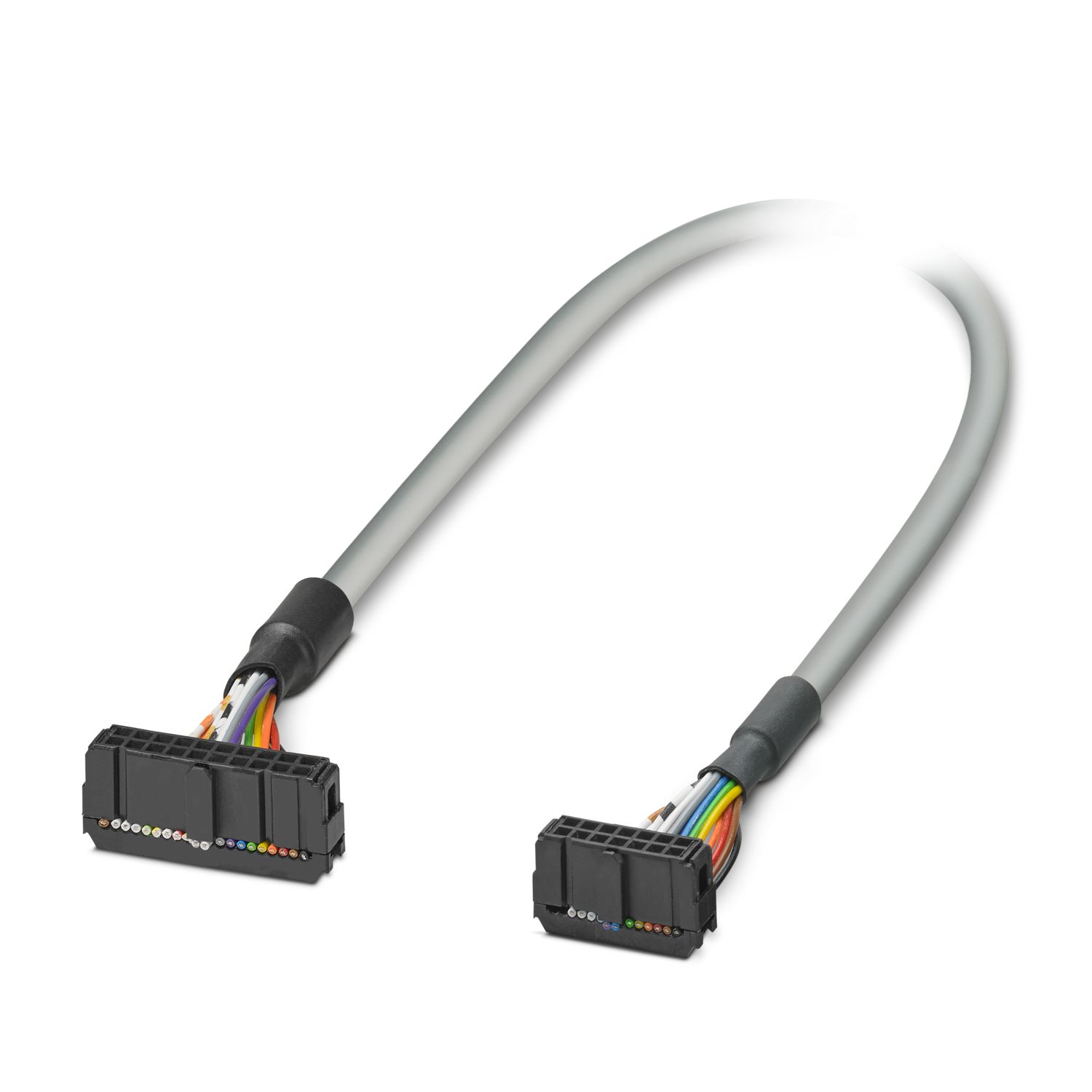

Connection 1
Connection in acc. with standard
IEC 60603-13 (in compliance)
Connection method
IDC/FLK socket strip
Number of connections
1
Number of positions
20
Insertion/withdrawal cycles
> 50
Pitch
2.54 mm
Connection 2
Connection in acc. with standard
IEC 60603-13 (in compliance)
Connection method
IDC/FLK socket strip
Number of connections
1
Number of positions
14
Insertion/withdrawal cycles
> 50
Pitch
2.54 mm
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
