Support - AB2/SS 0404431

Double support bracket, insulating material, optionally for use with 3 mm x 10 mm or 6 mm x 6 mm busbar, height: 48 mm


Product Details




Ambient conditions
Ambient temperature (operation) -60 °C ... 105 °C (max. short-term operating temperature 125°C)
Ambient temperature (assembly) -5 °C ... 70 °C
Ambient temperature (storage/transport) -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport) 30 % ... 70 %
Ambient temperature (actuation) -5 °C ... 70 °C

Nominal current IN 0 A

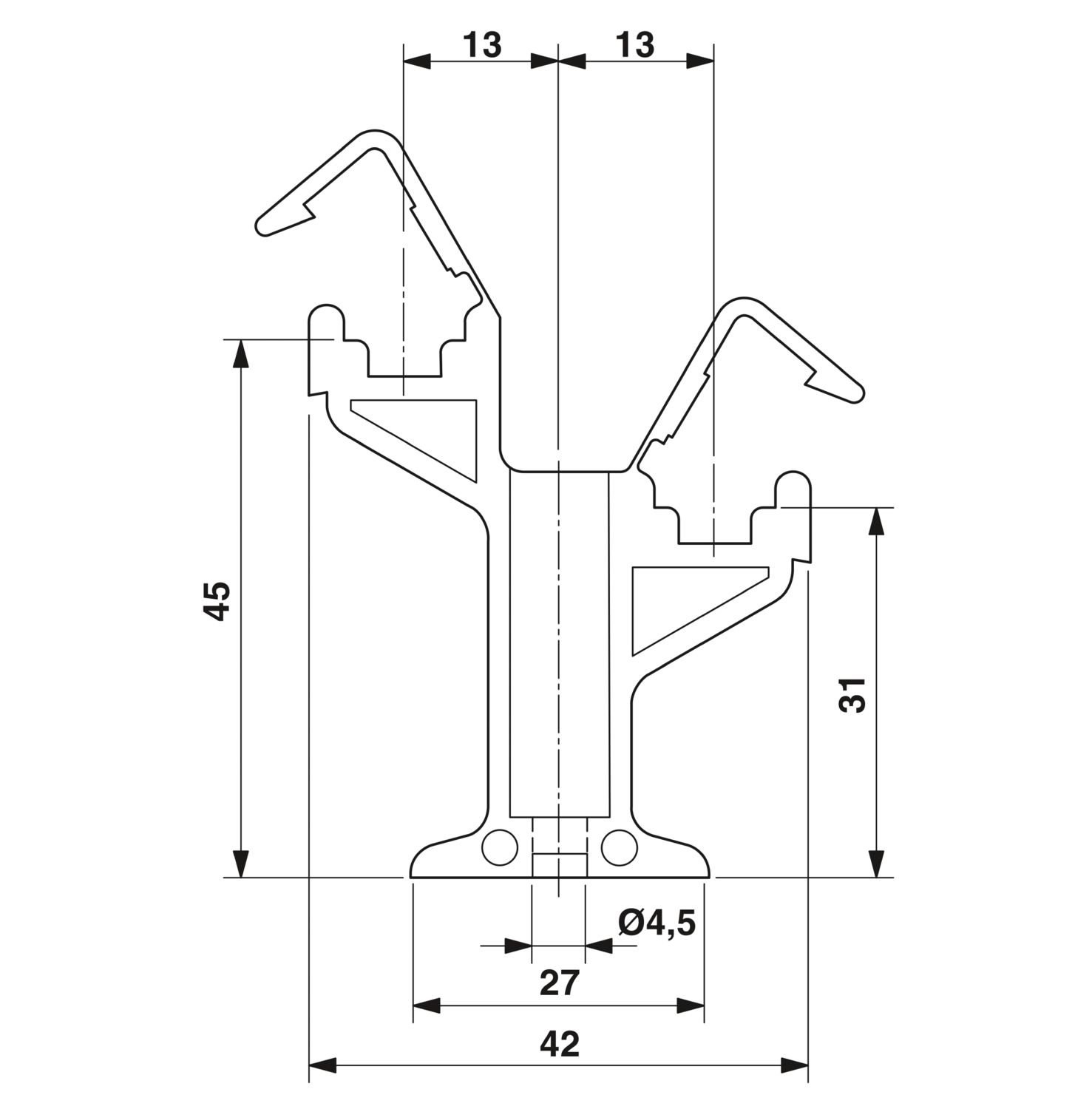

Dimensional drawing
Length 42 mm
Height 48 mm
Width 10 mm

Components free from silicone and halogen
Color gray
Material PA
Flammability rating according to UL 94 V0

Number of positions 2.00


Order Key 0404431
Packing unit 10 pc
Minimum order quantity 1 pc
Sales Key 032
Catalog Page Page 552 (C-3-2019)
GTIN 4017918001896
Weight per Piece (including packing) 6,7 GRM
Weight per Piece (excluding packing) 6,0 GRM
Customs tariff number 39269097
Country of origin PL



China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
