VC-AL-T4-Z-M32-S
-
Housing
1583759

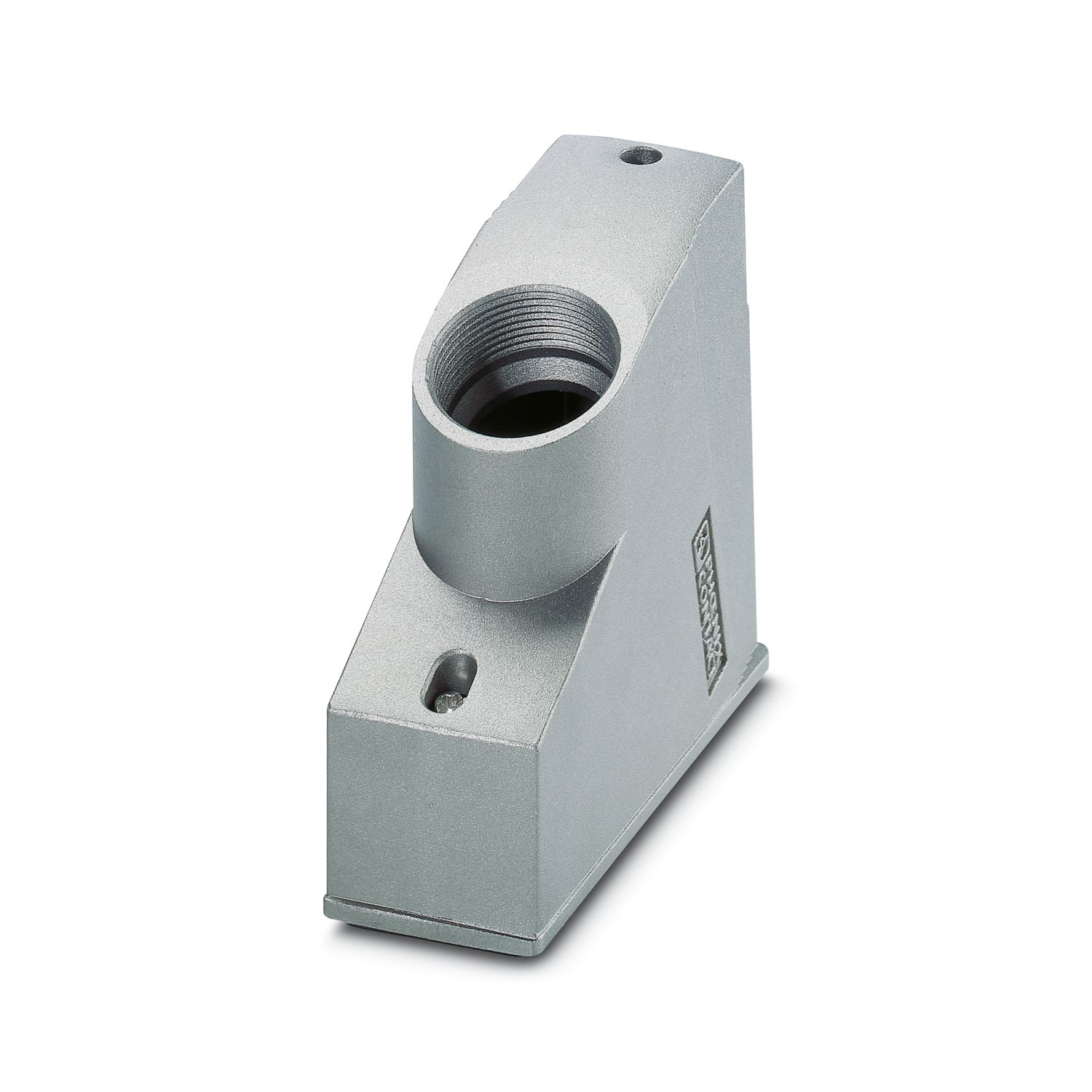

Aluminum die-cast sleeve housing, with grommet, locking screws with cylinder head, for a metric M32 cable gland, angled cable outlet, type VC4
Product details
| General | When using fiber optics, the bending radii of the cable manufacturers must be observed. |
| Product type | Sleeve housings |
| Product family | VARIOCON |
| Type | VC4 |
| No. of cable outlets | 1 |
| Type of the screw connection | M32 x 1.5 |
| Fixing screws | M4 |
| Shielded | no |
| Cable outlet | slanted |
| Dimensional drawing |
|
| Height | 90 mm |
| Color | gray aluminum |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR, conductive |
| Housing material | Die-cast aluminum |
| O-ring material | NBR |
| Material of locking screw | V2A |
| Mechanical data | |
| Type of the screw connection | M32 x 1.5 |
| Locking type | Screw |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Fixing screws | M4 |
