PSH 5-10 - Shield connection clamp

3040601

Shield connection clamp, nom. voltage: 300 V, color: black

Product details

Technical data

Product properties

Product type	Shield connection

Material specifications

Color	black (RAL 9005)
Material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (storage/transport)	30 % ... 70 %

Commercial data

Item number	3040601
Packing unit	50 pc
Minimum order quantity	1 pc
Sales key	016
Product key	BE214Z
Catalog page	Page 364 (C-1-2019)
GTIN	4017918832742
Weight per piece (including packing)	3,12 g
Weight per piece (excluding packing)	2,88 g
Customs tariff number	85444290
Country of origin	PL

Classifications

Approvals

Environmental product compliance

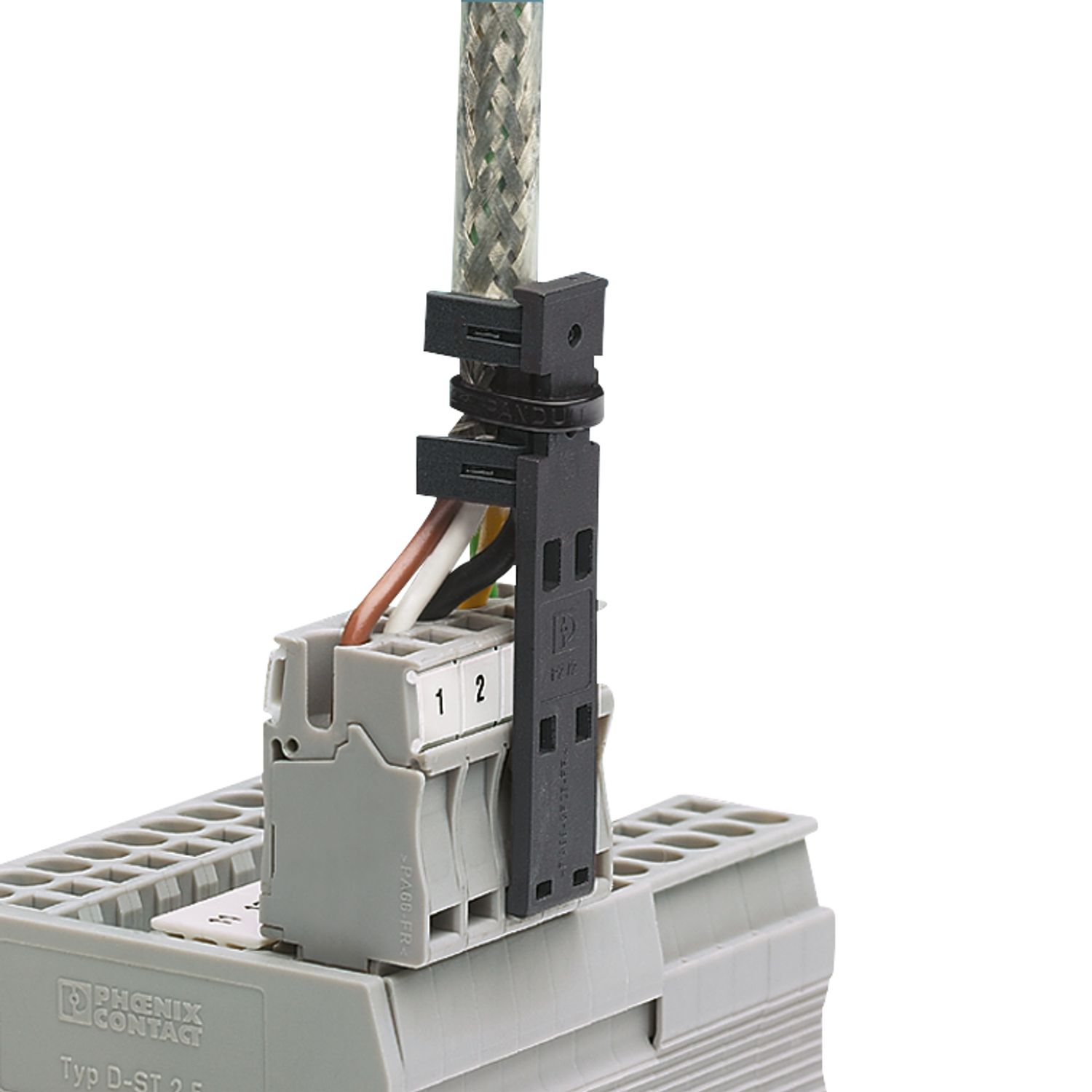

Connected shielded cable is fixed using a cable binder

The connecting cable for the shielding is connected via the plug and then makes direct contact with the terminal block when inserted

For connecting shielded cables

Snapped into strain relief once the plug has been wired

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
