CES-B16-WRG-BK
-
Flat gasket
0801726
Flat gasket made of NBR, size B16
Product details
| Product type | Seal |
| Type | B16 |

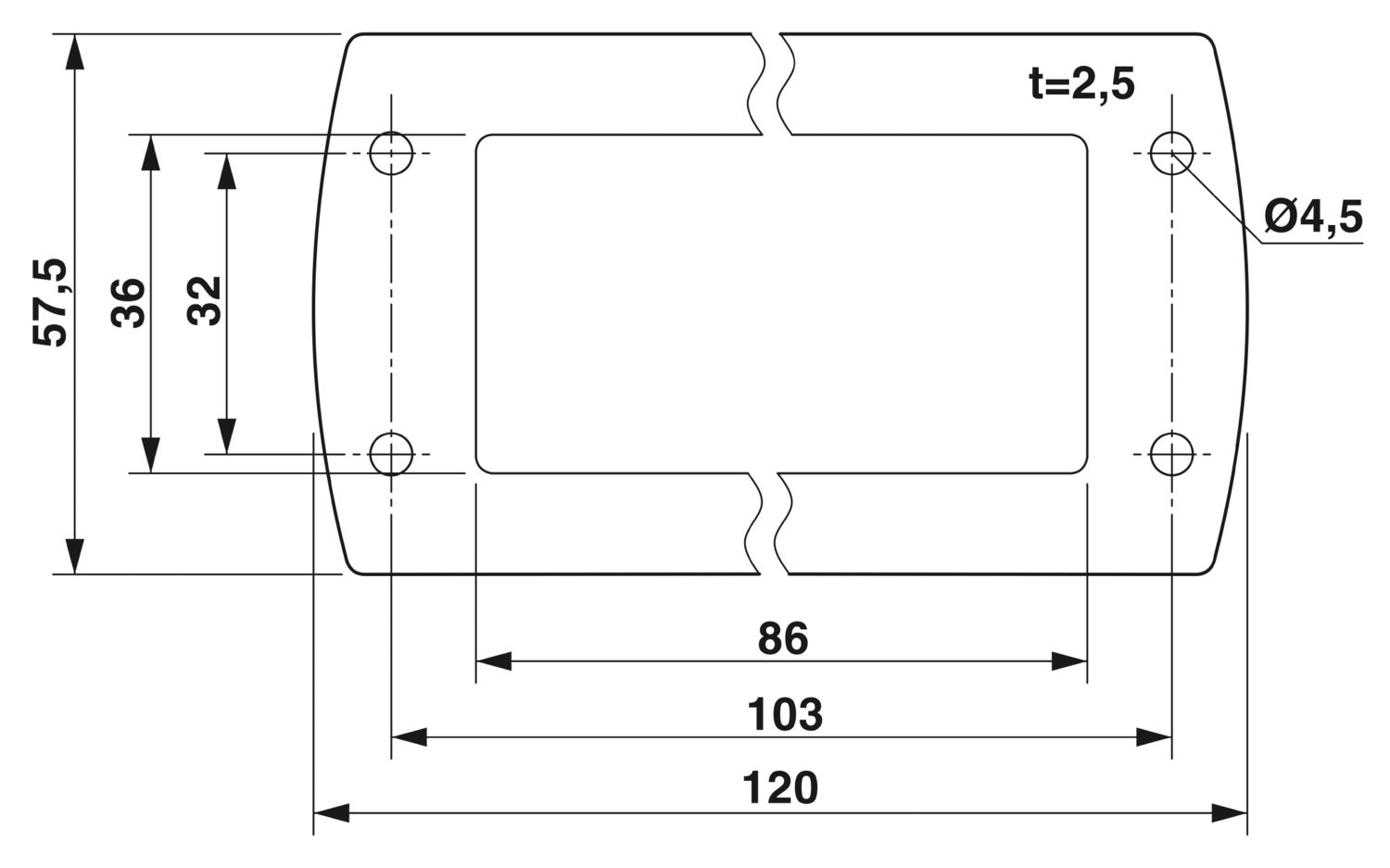

| Dimensional drawing |
|
| Width | 57.5 mm |
| Height | 2.5 mm |
| Length | 120 mm |
| Drill hole distance, horizontal | 103 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
| Seal material | NBR |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 80 °C (static) |
