MCR-R-U-V
-
Resistance/potiposition transducer
2769637

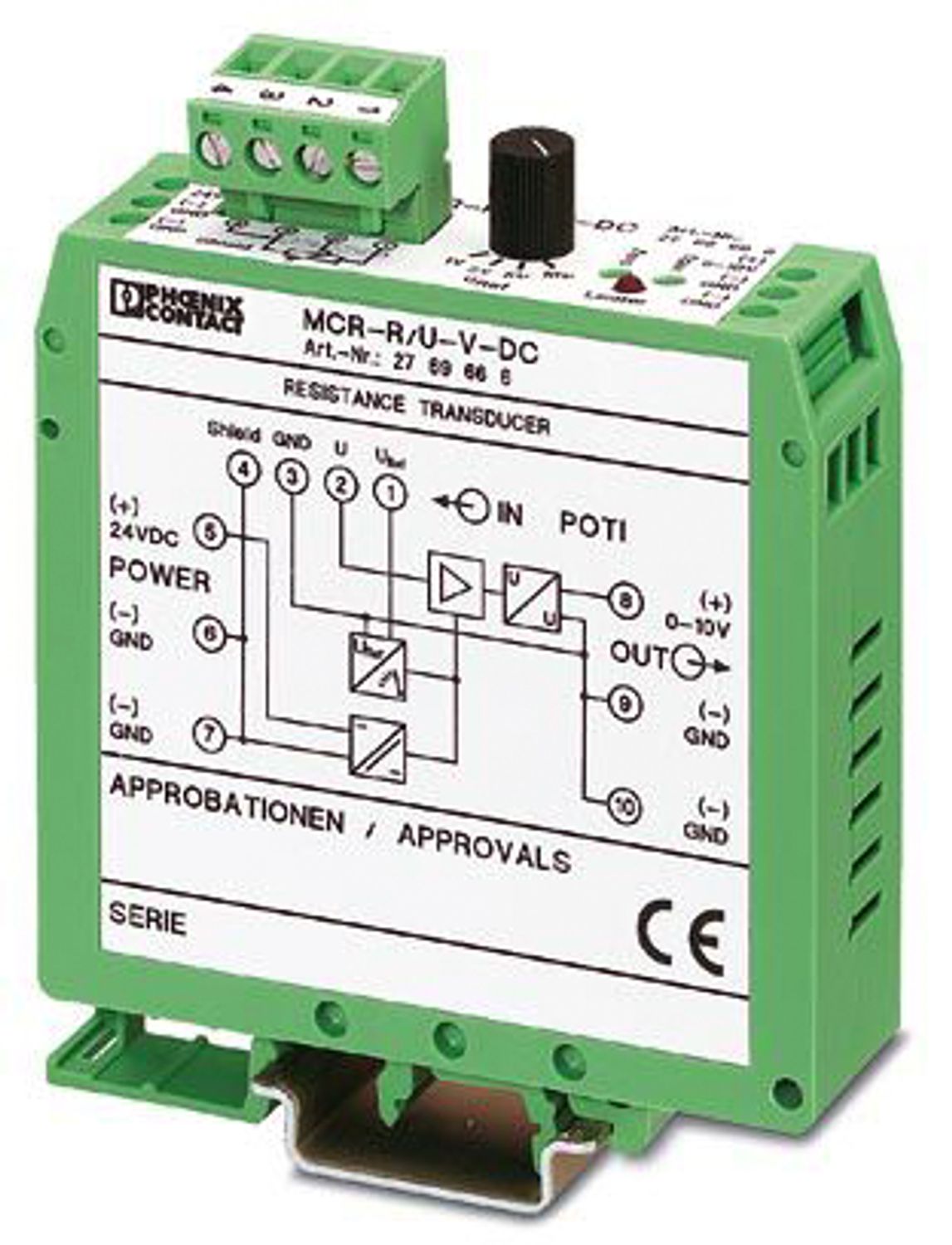

MCR potentiometer position indicator transducer, for slider position signaling on a potentiometer, input 0..100 Ω to 0..20 kΩ, output signal 0..10 V
Product details
| Product type | Potiposition transducer |
| Test voltage output/power supply | 1 kV AC (50 Hz, 60 s) |
| Step response (10-90%) | 1 ms |
| Maximum temperature coefficient | ≤ 0.02 % |
| Maximum transmission error | ≤ 0.2 % (of final value) |
| Supply | |
| Nominal supply voltage | 24 V DC ±10 % (electrically isolated) |
| Supply voltage range | 20 V DC ... 30 V DC |
| Typical current consumption | 40 mA (not electrically isolated) |
| 60 mA (electrically isolated) | |
| Potentiometer | |
| Potentiometer resistance range | 100 Ω ... 20000 Ω |
| Minimum use of potentiometer for ZERO/SPAN alignment | 60 % |
| Reference voltage source | Can be set via control knob 1 V, 2 V, 5 V or 10 V |
| Signal: Voltage output | |
| Voltage output signal | 0 V ... 10 V |
| Max. voltage output signal | approx. 11 V (signalized by LED) |
| Load/output load voltage output | ≥ 1000 Ω |
| Connection method | Pluggable screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |

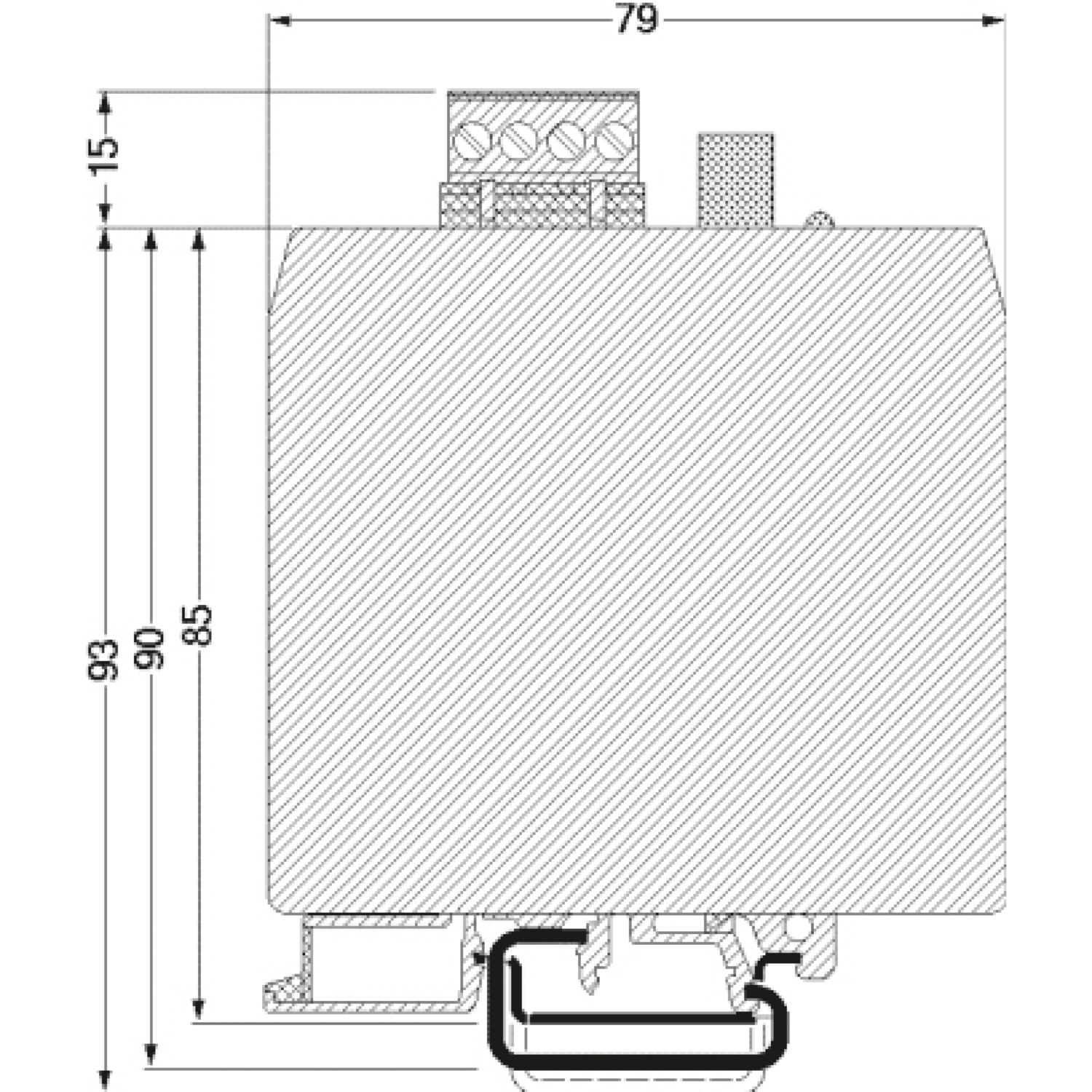

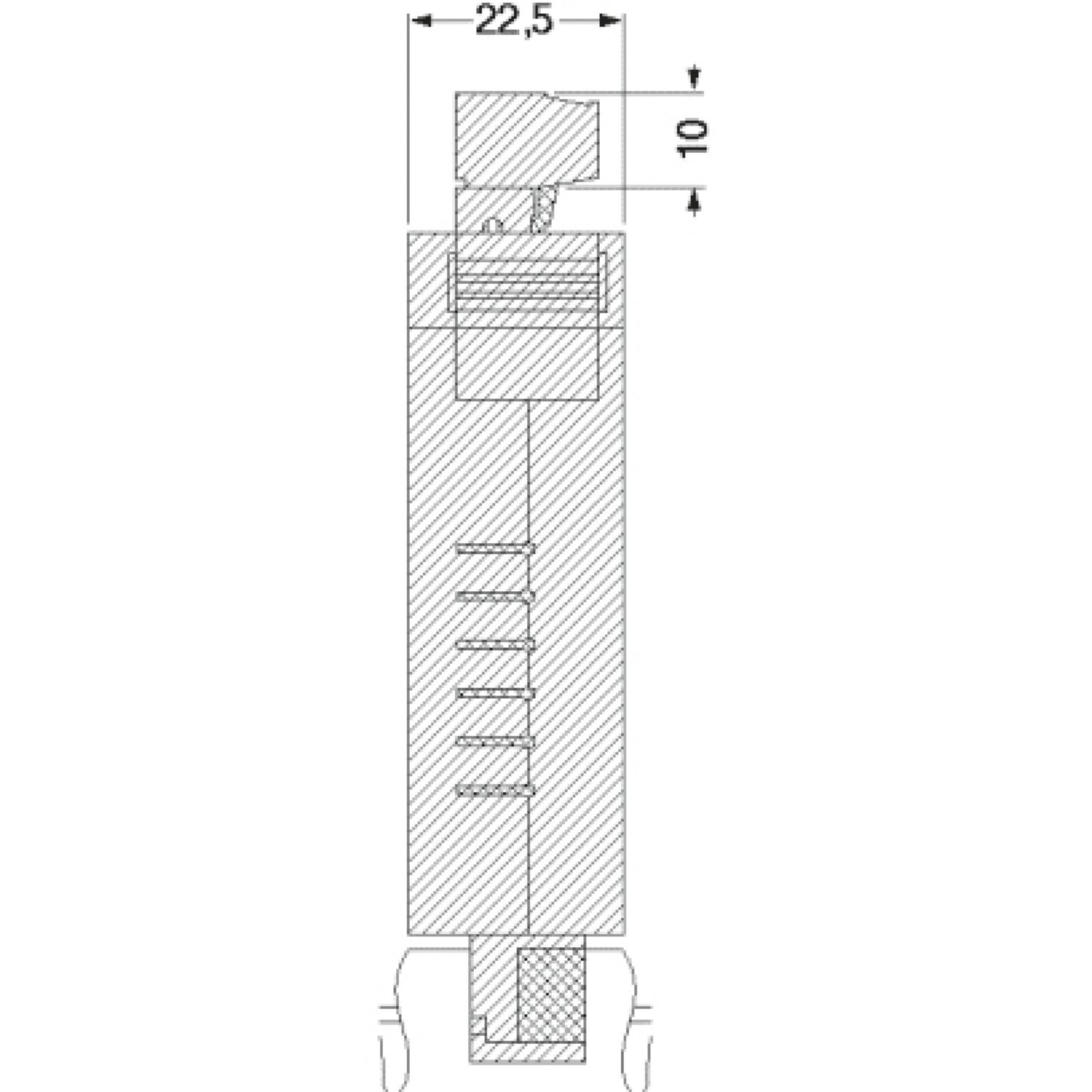

| Dimensional drawing |
|
| Width | 22.5 mm |
| Height | 79 mm |
| Depth | 93 mm |
| Color | green (RAL 6021) |
| Housing material | Polyamide PA non-reinforced |
| Ambient conditions | |
| Ambient temperature (operation) | 0 °C ... 55 °C |
| Electromagnetic compatibility | Conformance with EMC directive |
