MSTBO 2,5/ 3-6 ST SET KMGY - PCB connector

2713748

Kit consisting of COMBICON header and screw connectors for 6x3 positions (18-pos.), color: Light gray

Product details

Set consists of

Technical data

Product properties

Product type	PCB headers
Number of positions	3
Pitch	5 mm
Mounting flange	without

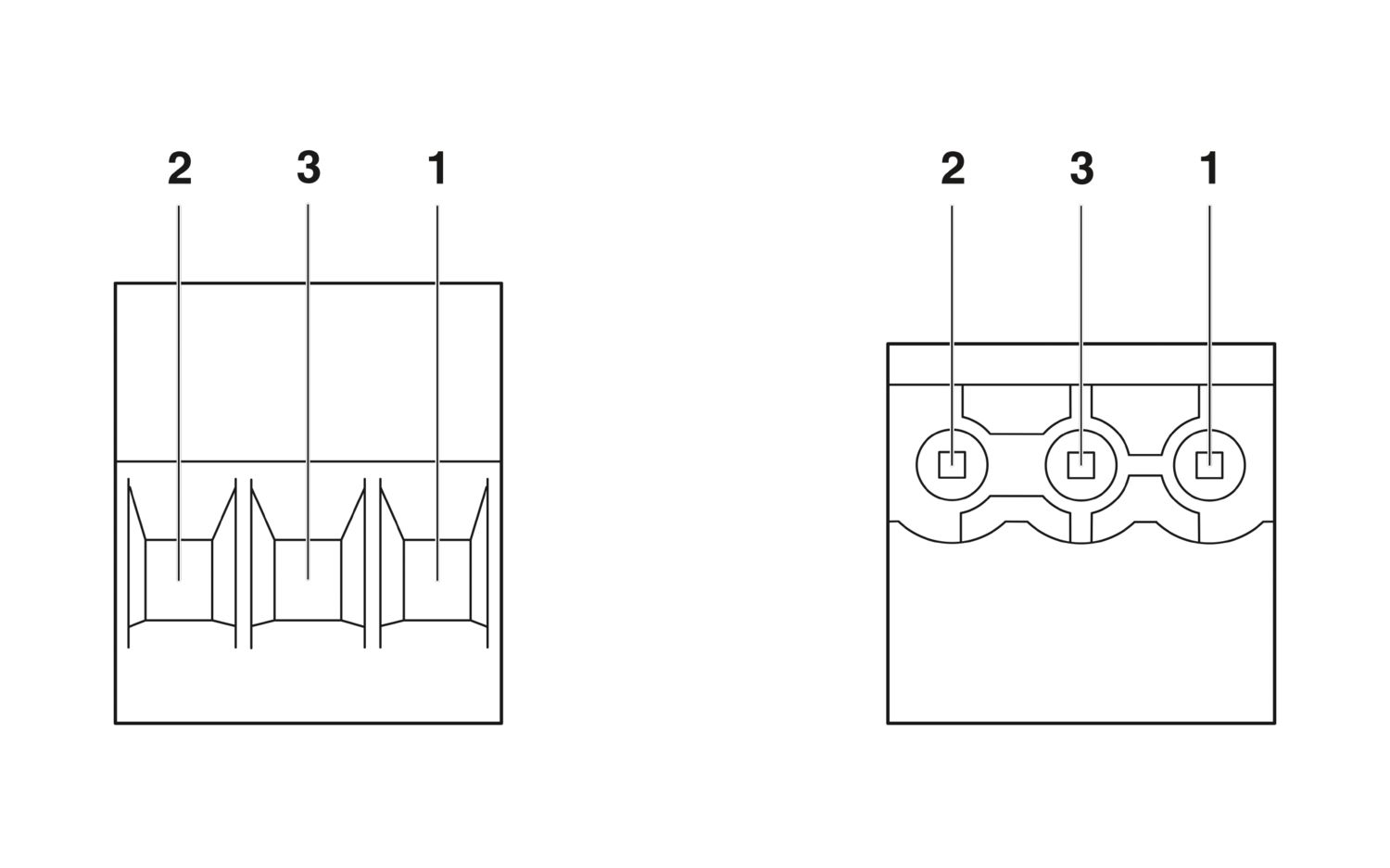

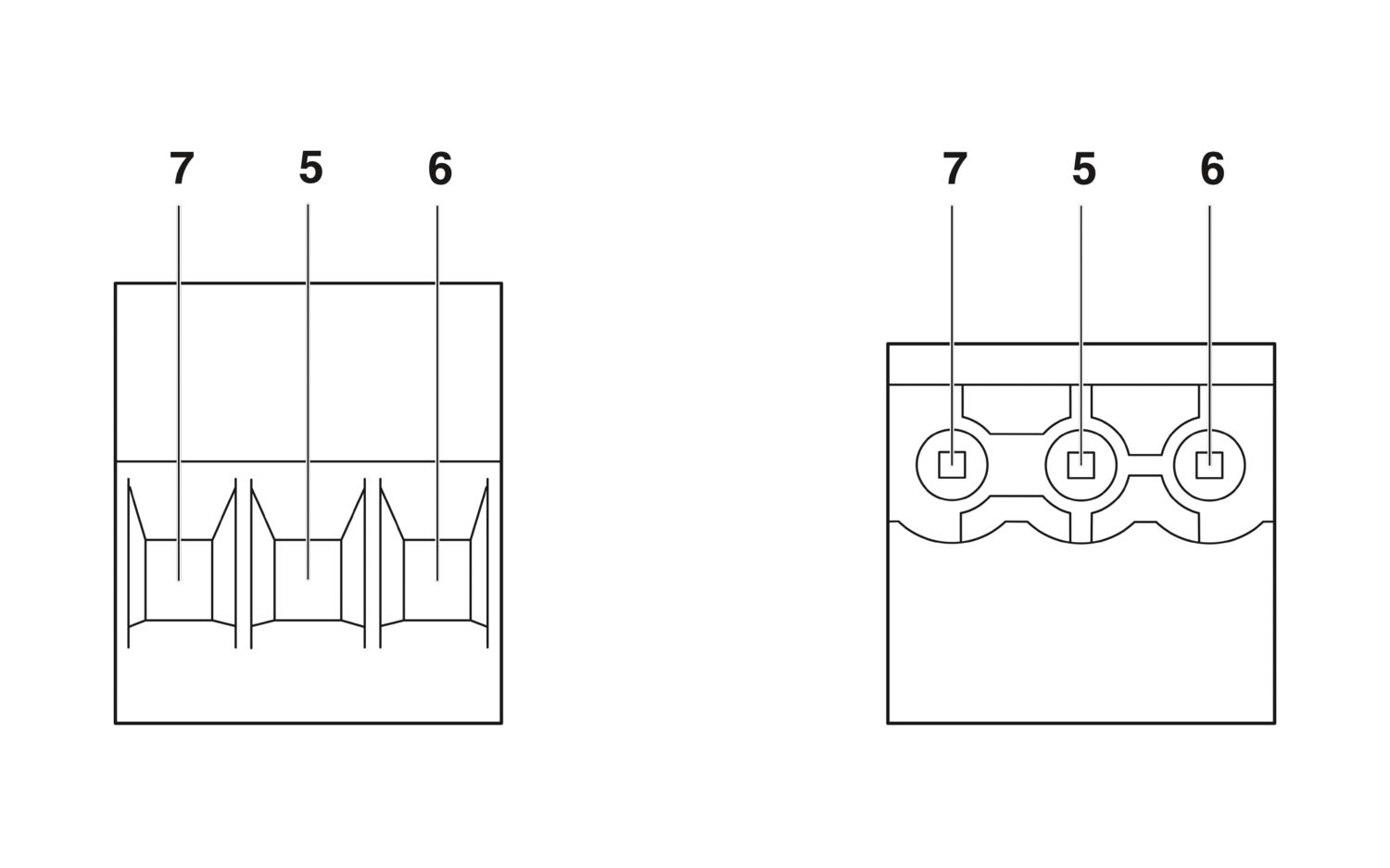

Pin layout	Linear pinning

Electrical properties

Rated voltage (II/2)	400 V
Rated voltage (III/2)	320 V
Rated surge voltage (II/2)	4 kV
Rated surge voltage (III/2)	4 kV
Rated surge voltage (III/3)	4 kV

Mounting

Mounting type	Soldering
Pin layout	Linear pinning

Material specifications

Color (Housing)	light gray (RAL 7035)
Insulating material	PA
Contact surface material	Sn

Dimensions

Pitch	5 mm

Commercial data

Item number	2713748
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	100
Product key	ACHADB
GTIN	4017918914486
Weight per piece (including packing)	42,3 g
Weight per piece (excluding packing)	39,94 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	10 A	28 - 12
Use group D
	300 V	10 A	28 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	250 V	8 A

Environmental product compliance

Compatible products

Accessories

ECLASS-13.0	27460201
ECLASS-15.0	27460201

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
