Panel feed-through terminal block - VDFK 6
0711027

Panel feed-through terminal block, connection method: Screw connection with tension sleeve, Solder connection, number of positions: 1, load current: 41 A, cross section: 0.2 mm2 - 10 mm2, connection direction of the conductor to plug-in direction: 0 °, width: 10 mm, color: gray


Product Details




Number of positions 1
Number of connections 2
Number of rows 1
Connector system VDFK 6
Insulation characteristics
Overvoltage category III
Degree of pollution 3

Rated surge voltage 6 kV
rated voltage (II/2) 1000 V
rated voltage (III/2) 1000 V
rated voltage (III/3) 500 V
Nominal current IN 41 A

Plate thickness 1 mm ... 4 mm

Material data - contact
Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material Cu alloy
Surface characteristics tin-plated
Material data - housing
Housing color gray (7042)
Insulating material PA
Insulating material group I
CTI according to IEC 60112 600
Flammability rating according to UL 94 V0
Glow wire flammability index GWFI according to EN 60695-2-12 850
Glow wire ignition temperature GWIT according to EN 60695-2-13 775
Temperature for the ball pressure test according to EN 60695-10-2 125 °C

Connection technology
Connector system VDFK 6
Nominal cross section 6 mm²
Conductor connection exterior
Connection method Screw connection with tension sleeve
Connection direction of the conductor to plug-in direction 0 °
Conductor cross section solid 0.2 mm² ... 10 mm²
Conductor cross section flexible 0.2 mm² ... 6 mm²
Conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² ... 6 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve 0.25 mm² ... 6 mm²
2 conductors with same cross section, solid 0.2 mm² ... 4 mm²
2 conductors with same cross section, flexible 0.2 mm² ... 4 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 0.25 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² ... 4 mm²
Internal cylindrical gage A5
Stripping length 9 mm
Torque 1.5 Nm ... 1.8 Nm
Conductor connection interior
Connection method Solder connection
Connection direction of the conductor to plug-in direction 0 °
Stripping length 9 mm
Torque 1.5 Nm ... 1.8 Nm

Safety note
Safety note • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• The cable entry funnel is not safe to touch. Never connect or disconnect the terminal when it is energized. Take appropriate steps to ensure touch protection.
• To maintain the nominal voltage, cast the terminals on the inside.
 There is no electrical contact to the housing. Make sure that protective grounding is provided for green/yellow color variants and articles marked with PE.

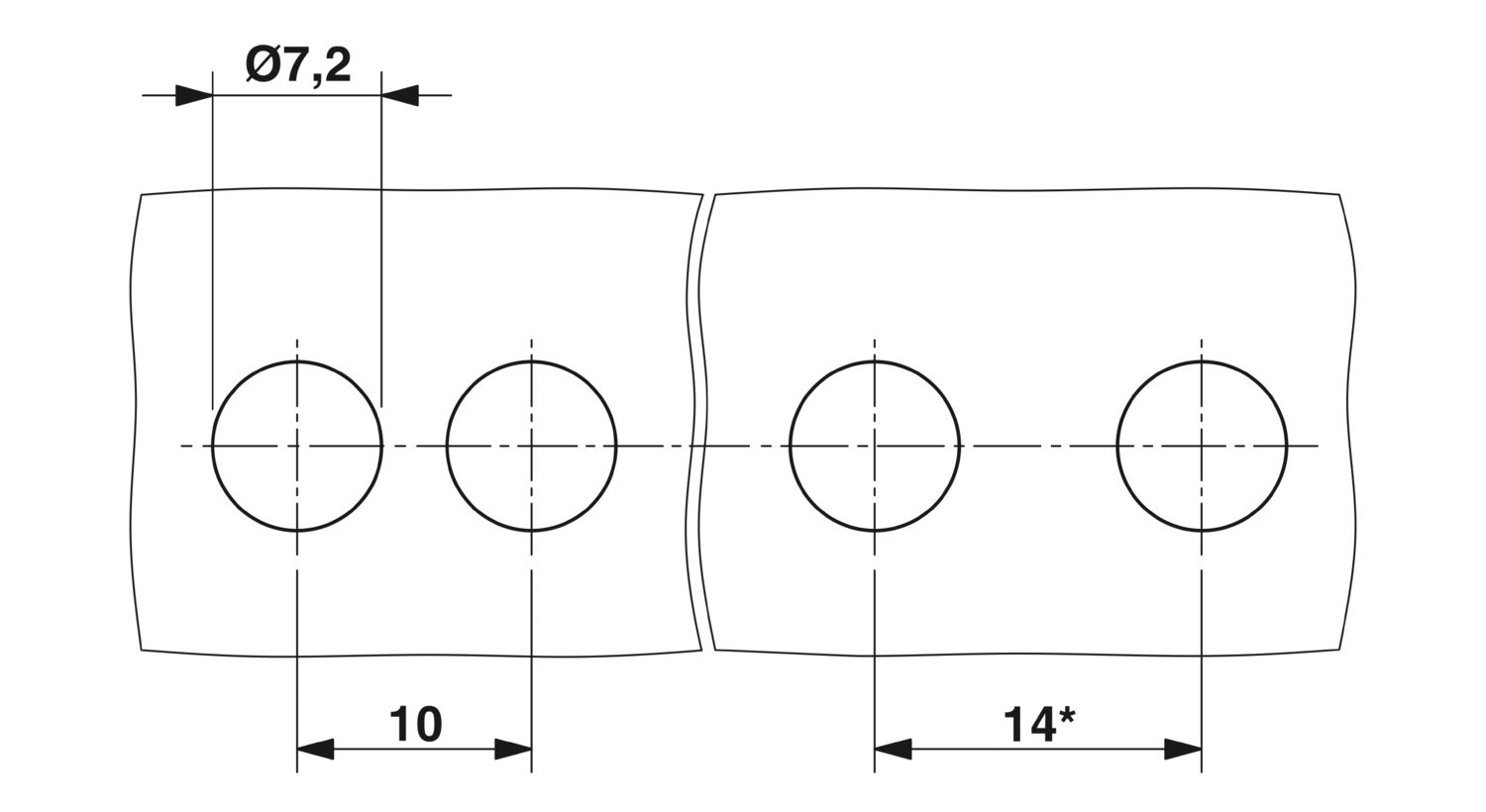

Dimensional drawing
Width 10 mm
Height 31.5 mm
Length 30.2 mm
Pitch 10 mm
Plate thickness 1 mm ... 4 mm
External dimensions
Width 10 mm
Height_external 31.5 mm
Length_external 15.5 mm
Internal dimensions
Width_inside 10 mm
Length_inside 10.4 mm

Electrical properties
Rated voltage (III/3) 500 V
Rated surge voltage (III/2) 6 kV
Pollution degree 3
Air clearances and creepage distances | 1. Insulation coordination
Application Internal part molded
Insulating material group I
Comparative tracking index (IEC 60112:2003-01) CTI 600
Rated insulation voltage (III/3) 500 V
Rated surge voltage (III/3) 6 kV
minimum clearance value - non-homogenous field (III/3) 5.5 mm

Type of packaging packed in cardboard


Order Key 0711027
Packing unit 50 pc
Minimum order quantity 1 pc
Sales Key 014
Catalog Page Page 645 (C-1-2013)
GTIN 4017918005351
Weight per Piece (including packing) 7,6 GRM
Weight per Piece (excluding packing) 6,8 GRM
Customs tariff number 85369010
Country of origin PL



CSA

Approval Specification Data
Usegroup B C D
Nominal voltage UN 300 V 150 V 300 V
Nominal current IN 50 A 50 A 10 A
AWG/kcmil 26-8 26-8 26-8
Min. cross section 26 mm² 26 mm² 26 mm²
Max. cross section 8 mm² 8 mm² 8 mm²

KEMA-KEUR

Approval Specification Data
Nominal voltage UN 500 V
Nominal current IN 41 A
AWG/kcmil 26-8
Max. cross section 6 mm²

IECEE CB Scheme

Approval Specification Data
Nominal voltage UN 500 V
Nominal current IN 41 A
AWG/kcmil 26-8
Max. cross section 6 mm²

EAC

cULus Recognized

Approval Specification Data
Usegroup B C D
Nominal voltage UN 300 V 150 V 300 V
Nominal current IN 50 A 50 A 10 A
AWG/kcmil 26-8 26-8 26-8
Min. cross section 26 mm² 26 mm² 26 mm²
Max. cross section 8 mm² 8 mm² 8 mm²

China RoHS Environmentally Friendly Use Period = 50 years
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”


Your advantages

Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
