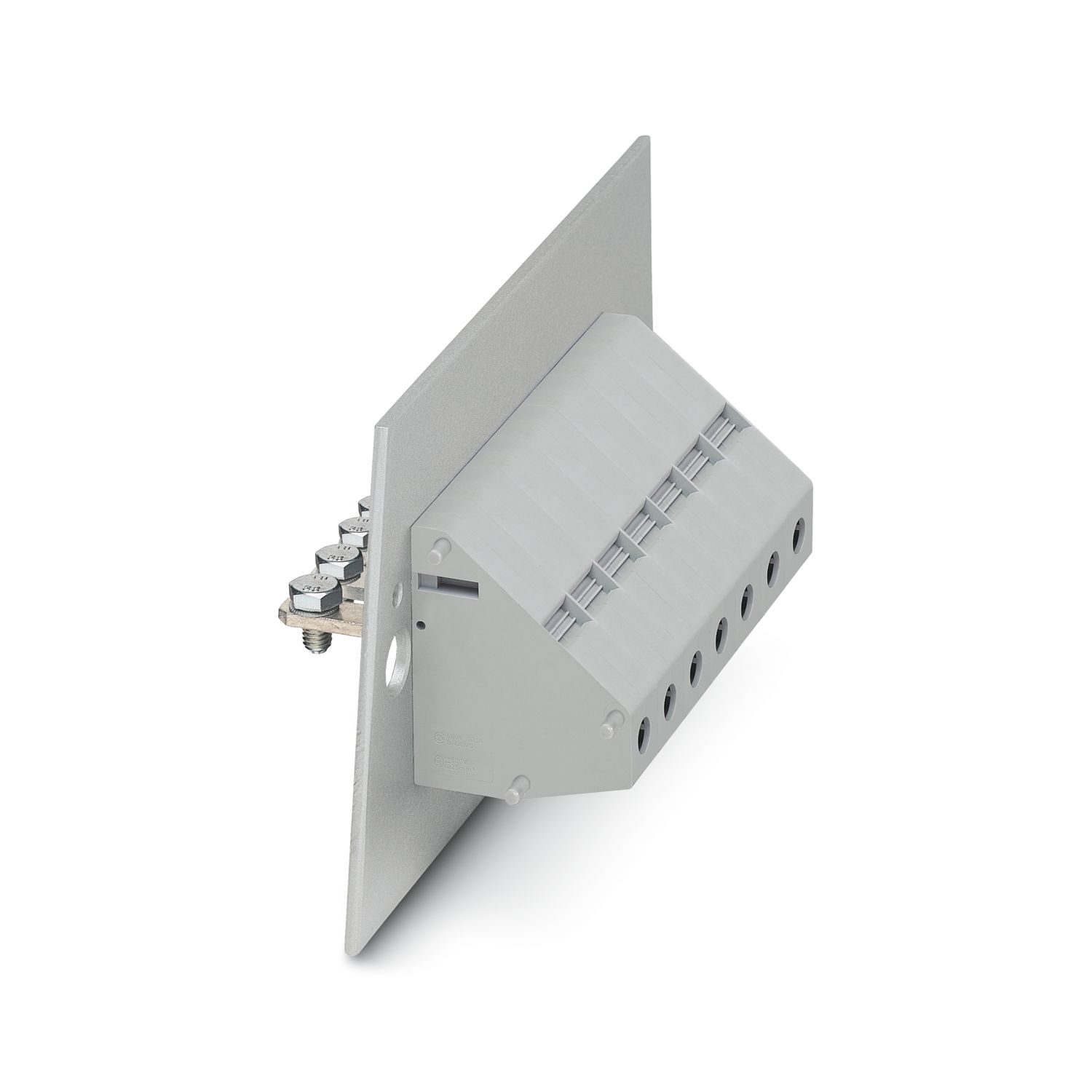

Panel feed-through terminal block - HDFKV 25-VP/Z 0714150

Panel feed-through terminal block, connection method: Screw connection with tension sleeve, Cable lug connection, number of positions: 1, load current: 101 A, cross section: 6 mm2 - 35 mm2, connection direction of the conductor to plug-in direction: -90 °, width: 15.1 mm, color: gray


Product Details




Electrical properties
Rated surge voltage (III/2) 6 kV
Pollution degree 3
Rated voltage (III/3) 500 V
Air clearances and creepage distances | 1․ Insulation coordination
Rated surge voltage (III/3) 6 kV
minimum creepage distance (III/3) 6.3 mm
minimum clearance value - non-homogenous field (III/3) 5.5 mm
Insulating material group I
Comparative tracking index (IEC 60112:2003-01) CTI 600
Rated insulation voltage (III/3) 500 V

Rated surge voltage 6 kV
Nominal current IN 101 A
Maximum load current 125 A

Type of packaging packed in cardboard

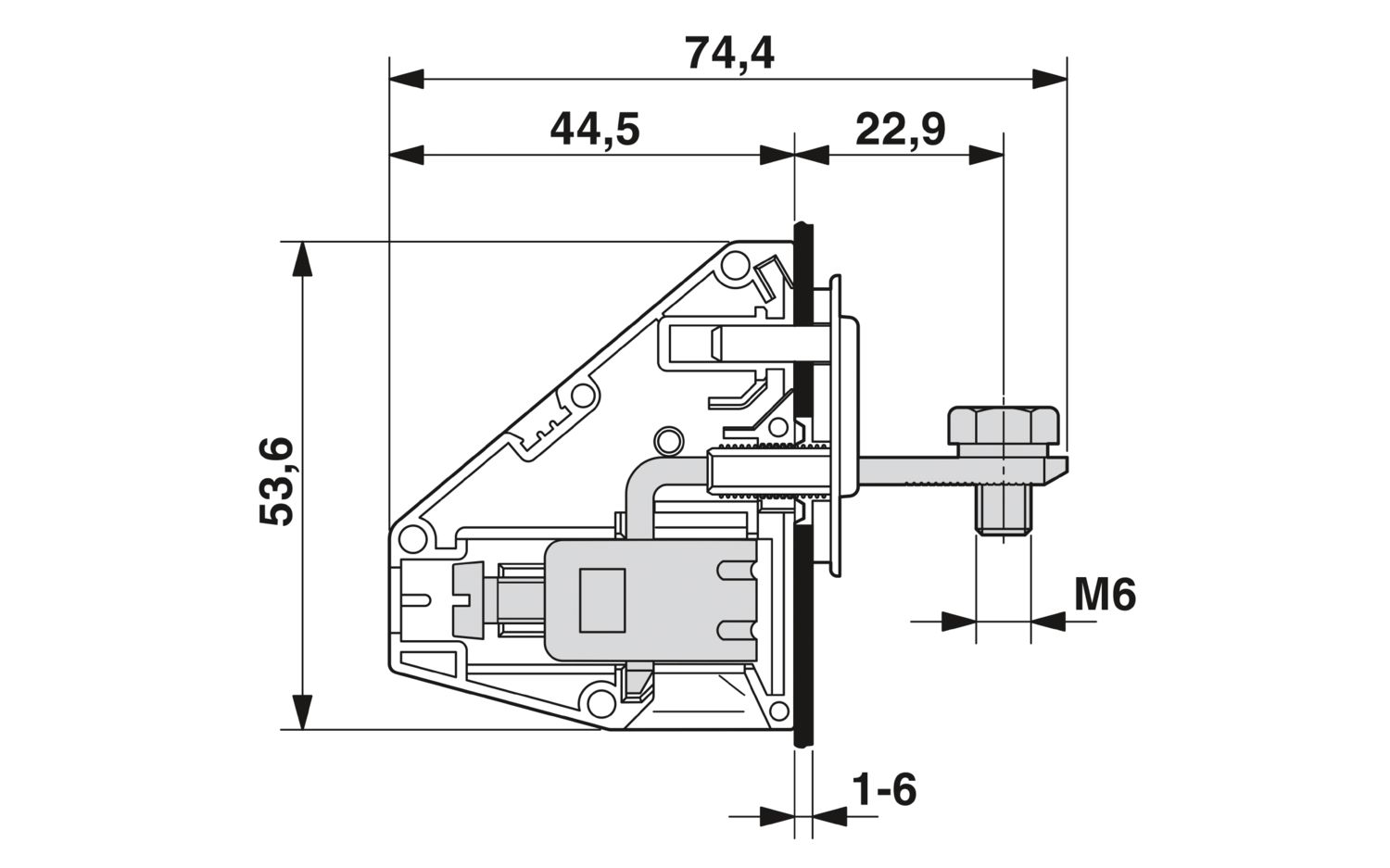

Dimensional drawing
Length 74 mm
Pitch 15.1 mm
Height 53.6 mm
Width 15.1 mm

Safety note
Safety note • Only electrically qualified personnel may install and operate the product.
To recognize and prevent danger, the qualified personnel must be familiar with the basics of electrical engineering.
• Observe the technical data provided here and refer to the documents listed under “Downloads”. The download area contains important information, such as installation notes, technical drawings, and 3D data.
• The cable entry funnel is not safe to touch. Never connect or disconnect the terminal when it is energized. Take appropriate steps to ensure touch protection.
• To maintain the nominal voltage, align the cable lugs straight and centered, and cast the terminals on the inside.

Connection technology
Nominal cross section 25 mm2
Conductor connection exterior
2 conductors with same cross section, solid 2.5 mm2 ... 10 mm2
Torque 4 Nm ... 4.5 Nm
Conductor cross section flexible, with ferrule without plastic sleeve 4 mm2 ... 25 mm2
Internal cylindrical gage B8
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 2.5 mm2 ... 10 mm2
Conductor cross section solid 6 mm2 ... 35 mm2
Stripping length 19 mm
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 2.5 mm2 ... 10 mm2
Connection method Screw connection with tension sleeve
2 conductors with same cross section, flexible 4 mm2 ... 10 mm2
Conductor cross section, flexible, with ferrule, with plastic sleeve 4 mm2 ... 25 mm2
Conductor cross section flexible 10 mm2 ... 25 mm2
Connection direction of the conductor to plug-in direction -90 °
Conductor connection interior
Torque 4 Nm ... 4.5 Nm
Stripping length 19 mm
Connection method Cable lug connection
Connection direction of the conductor to plug-in direction 0 °

Material data - housing
Insulating material group I
Temperature for the ball pressure test according to EN 60695-10-2 125 °C
Glow wire flammability index GWFI according to EN 60695-2-12 850
CTI according to IEC 60112 600
Housing color gray (7042)
Insulating material PA
Flammability rating according to UL 94 V0
Glow wire ignition temperature GWIT according to EN 60695-2-13 775
Material data - contact
Contact material Cu alloy
Surface characteristics tin-plated
Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201

Number of positions 1
Number of potentials 1
Number of levels 1
Number of connections 2
Insulation characteristics
Overvoltage category III
Degree of pollution 3


Order Key 0714150
Packing unit 25 pc
Minimum order quantity 1 pc
Sales Key 014
Catalog Page Page 639 (CC-2009)
GTIN 4046356180245
Weight per Piece (including packing) 50,2 GRM
Weight per Piece (excluding packing) 50,2 GRM
Customs tariff number 85369010
Country of origin GR



CSA

Approval Specification Data
Usegroup B C
Nominal voltage UN 600 V 600 V
Nominal current IN 100 A 100 A
AWG/kcmil 8-2 8-2
Min. cross section 8 mm² 8 mm²
Max. cross section 2 mm² 2 mm²

UL Recognized

Approval Specification Data
Usegroup B C
Nominal voltage UN 600 V 600 V
Nominal current IN 115 A 115 A
AWG/kcmil 8-2 8-2
Min. cross section 8 mm² 8 mm²
Max. cross section 2 mm² 2 mm²

EAC


China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values


Your advantages

Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
Reliable seal even with low-viscosity molding compounds
