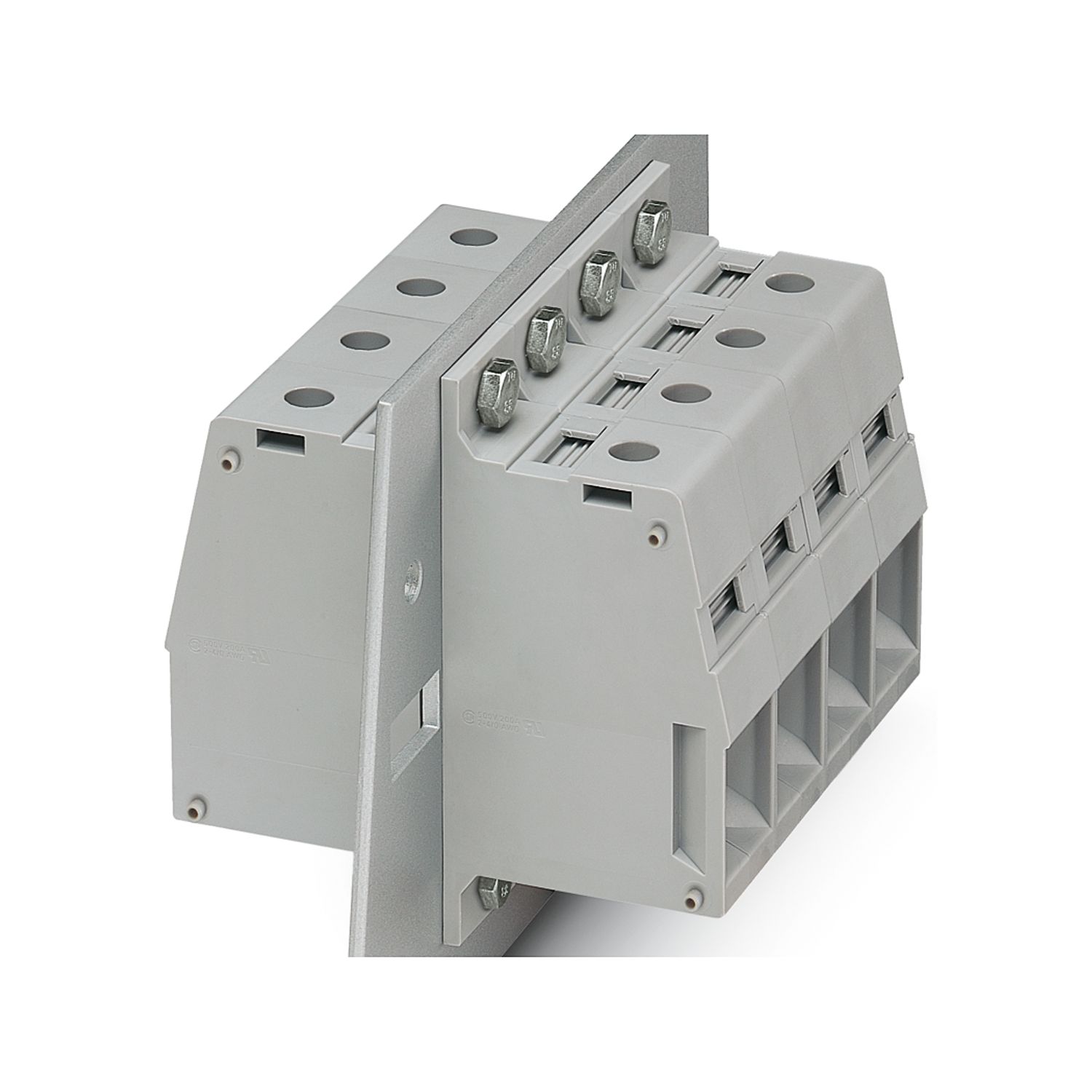

Panel feed-through terminal block - HDFK 95-F/Z 0714037

Panel feed-through terminal block, connection method: Screw connection with tension sleeve, Screw connection with tension sleeve, number of positions: 1, load current: 232 A, cross section: 25 mm2 - 95 mm2, connection direction of the conductor to plug-in direction: 0 °, width: 25 mm, color: gray


Product Details




Plate thickness 1 mm ... 6 mm

Electrical properties
Rated surge voltage (III/2) 8 kV
Pollution degree 3
Rated voltage (III/3) 1000 V
Short-time withstand current
Specification IEC 60947-7-1:2009-04
Temperature-rise test
Specification IEC 60947-7-1:2009-04
Requirement temperature-rise test Increase in temperature ≤ 45 K
Air clearances and creepage distances | 4․ Insulation coordination
Rated surge voltage (III/3) 8 kV
minimum creepage distance (III/3) 12.5 mm
minimum clearance value - non-homogenous field (III/3) 8 mm
Insulating material group I
Comparative tracking index (IEC 60112:2003-01) CTI 600
Rated insulation voltage (III/3) 1000 V
Specification IEC 60947-7-1:2009-04
Application Plastic panel 1.0 ... 6.0 mm
Air clearances and creepage distances | 3․ Insulation coordination
Rated surge voltage (III/3) 8 kV
minimum creepage distance (III/3) 8 mm
minimum clearance value - non-homogenous field (III/3) 8 mm
Insulating material group I
Comparative tracking index (IEC 60112:2003-01) CTI 600
Rated insulation voltage (III/3) 690 V
Specification IEC 60947-7-1:2009-04
Application Metal panel > 5.0 mm ... 6.0 mm
Air clearances and creepage distances | 2․ Insulation coordination
Rated surge voltage (III/3) 8 kV
minimum creepage distance (III/3) 10 mm
minimum clearance value - non-homogenous field (III/3) 8 mm
Insulating material group I
Comparative tracking index (IEC 60112:2003-01) CTI 600
Rated insulation voltage (III/3) 800 V
Specification IEC 60947-7-1:2009-04
Application Metal panel > 2.5 mm ... 5.0 mm
Air clearances and creepage distances | 1․ Insulation coordination
Rated surge voltage (III/3) 8 kV
minimum creepage distance (III/3) 12.5 mm
minimum clearance value - non-homogenous field (III/3) 8 mm
Insulating material group I
Comparative tracking index (IEC 60112:2003-01) CTI 600
Rated insulation voltage (III/3) 1000 V
Specification IEC 60947-7-1:2009-04
Application Metal wall 1.0 mm ... 2.5 mm

rated voltage (III/3) 1000 V
rated voltage (III/2) 1000 V
rated voltage (II/2) 1000 V
Rated surge voltage 8 kV
Nominal current IN 232 A
232 A
Maximum load current 232 A

Type of packaging packed in cardboard

Glow-wire test
Temperature 960 °C
Time of exposure 30 s
Specification IEC 60695-2-11:2000-10

Dimensional drawing
Length 94.5 mm
Pitch 25 mm
Height 74 mm
Plate thickness 1 mm ... 6 mm
Width 25 mm

Test for conductor damage and slackening
Specification IEC 60947-7-1:2009-04
Result Test passed
Pull-out test
Conductor cross section/conductor type/tractive force setpoint/actual value 25 mm2 / stranded / > 135 N
35 mm2 / flexible / > 190 N
95 mm2 / stranded / > 351 N
95 mm2 / flexible / > 351 N
Specification IEC 60947-7-1:2009-04

Safety note
Safety note • Only electrically qualified personnel may install and operate the product.
To recognize and prevent danger, the qualified personnel must be familiar with the basics of electrical engineering.
• Observe the technical data provided here and refer to the documents listed under “Downloads”. The download area contains important information, such as installation notes, technical drawings, and 3D data.
• The cable entry funnel is not safe to touch. Never connect or disconnect the terminal when it is energized. Take appropriate steps to ensure touch protection.

Connection technology
Nominal cross section 95 mm2
Conductor connection exterior
2 conductors with same cross section, solid 16 mm2 ... 35 mm2
Torque 15 Nm ... 20 Nm
Conductor cross section flexible, with ferrule without plastic sleeve 25 mm2 ... 95 mm2
Internal cylindrical gage B12
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 16 mm2 ... 35 mm2
Conductor cross section solid 25 mm2 ... 95 mm2
Stripping length 27 mm
Connection method Screw connection with tension sleeve
2 conductors with same cross section, flexible 16 mm2 ... 35 mm2
Conductor cross section, flexible, with ferrule, with plastic sleeve 25 mm2 ... 95 mm2
Conductor cross section flexible 35 mm2 ... 95 mm2
Connection direction of the conductor to plug-in direction 0 °
Conductor connection interior
2 conductors with same cross section, solid 16 mm2 ... 35 mm2
Torque 15 Nm ... 20 Nm
Conductor cross section flexible, with ferrule without plastic sleeve 25 mm2 ... 95 mm2
Internal cylindrical gage B12
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 16 mm2 ... 35 mm2
Conductor cross section solid 25 mm2 ... 95 mm2
Stripping length 27 mm
Connection method Screw connection with tension sleeve
2 conductors with same cross section, flexible 16 mm2 ... 35 mm2
Conductor cross section, flexible, with ferrule, with plastic sleeve 25 mm2 ... 95 mm2
Conductor cross section flexible 35 mm2 ... 95 mm2
Connection direction of the conductor to plug-in direction 0 °

Material data - housing
Insulating material group I
Temperature for the ball pressure test according to EN 60695-10-2 125 °C
Glow wire flammability index GWFI according to EN 60695-2-12 850
CTI according to IEC 60112 600
Housing color gray (7042)
Insulating material PA
Flammability rating according to UL 94 V0
Glow wire ignition temperature GWIT according to EN 60695-2-13 775
Material data - contact
Contact material Cu alloy
Surface characteristics tin-plated
Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201

Number of positions 1
Number of levels 1
Number of connections 2
Insulation characteristics
Overvoltage category III
Degree of pollution 3


Order Key 0714037
Packing unit 10 pc
Minimum order quantity 1 pc
Sales Key 014
Catalog Page Page 621 (C-1-2013)
GTIN 4046356180146
Weight per Piece (including packing) 248,6 GRM
Weight per Piece (excluding packing) 100,0 GRM
Customs tariff number 85369010
Country of origin GR



CSA

Approval Specification Data
Usegroup B C
Nominal voltage UN 600 V 600 V
Nominal current IN 230 A 230 A
AWG/kcmil 2 2
Min. cross section 2 mm² 2 mm²

UL Recognized

Approval Specification Data
Usegroup B C
Nominal voltage UN 600 V 600 V
Nominal current IN 230 A 230 A
AWG/kcmil 2 2
Min. cross section 4 mm² 4 mm²

EAC


REACh SVHC Lead 7439-92-1
China RoHS Environmentally Friendly Use Period = 50 years
China RoHS For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”


Your advantages

Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Tool-free snap-in principle enables easy mounting on the device panel
Automatic panel thickness compensation enables universal use
