QPD W 5X1,5 M25 1,0 BK B-S
-
Panel feed-through
1424877
Panel feed-through, product family: QPD, connection method: Single wires, M25, 690 V, 17.5 A, PA, black, without QUICKON nut, coding: Coding profile, 1.5 mm2, cable length: 1 m, pin assignment: 1 = RD, 2 = BK, 3 = WH, 4 = BN, 5 = VT
Product details
| Product type | Panel feed-through |
| Product family | QPD |
| Type | QPD 5x1,5 |
| Number of positions | 5 |
| Position marking | 1, 2, 3, 4, 5 |
| Number of connections | 10 |
| Number of connections per position | 1 |
| Coding | Coding profile |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Connection method On the device side | Single wires |
| Frequency of connections between conductors of the same cross section | max. 10 |

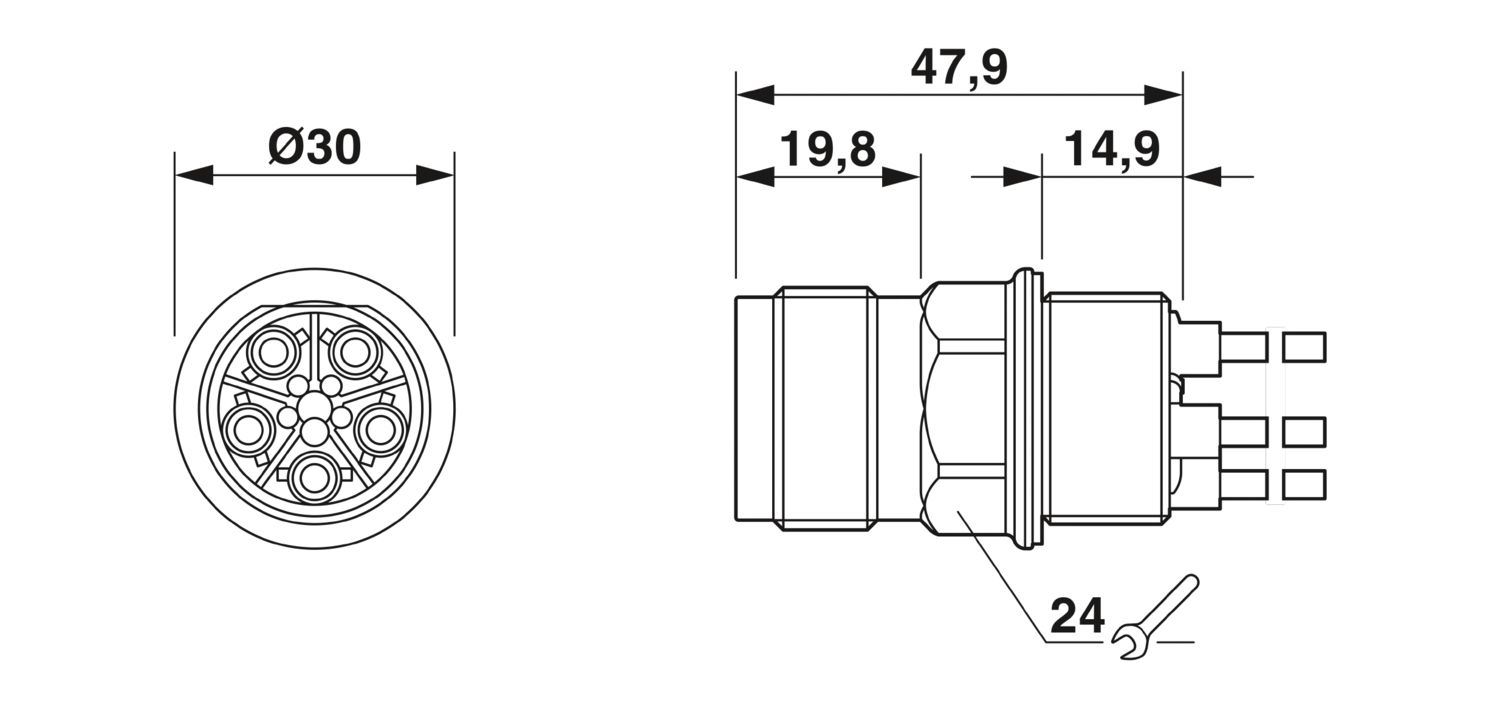

| Dimensional drawing |
|
| Width | 30 mm |
| Height | 30 mm |
| Length | 47.9 mm |
| Diameter | 30 mm |
| Rated surge voltage (II/2) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 17.5 A |
| Contact resistance | < 3 mΩ |
| rated voltage (II/2) | 1000 V |
| rated voltage (III/2) | 1000 V |
| Rated voltage (III/3) | 690 V |
| Nominal voltage UN | 690 V |
| Nominal current IN | 17.5 A |
| Mechanical data | |
| Insertion/withdrawal cycles | max. 50 |
| Color | black (RAL 9005) |
| Material Housing | PA |
| Material Contact | Cu |
| Material Contact surface | silver-plated |
| Flammability rating according to UL 94 | V0 |
| Cable length | 1 m |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| Wire diameter including insulation | 1.6 mm ... 3 mm |
| Position marking | 1, 2, 3, 4, 5 |
| Single wire, color | red, black, white, violet, brown |
| Cable cross section | 1.5 mm² |
| Material wire insulation | PVC / PE |
| Mounting type | Front mounting M25 |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (2 m / 24 h) | |
| IP69K | |
| Impact strength | IK07 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
