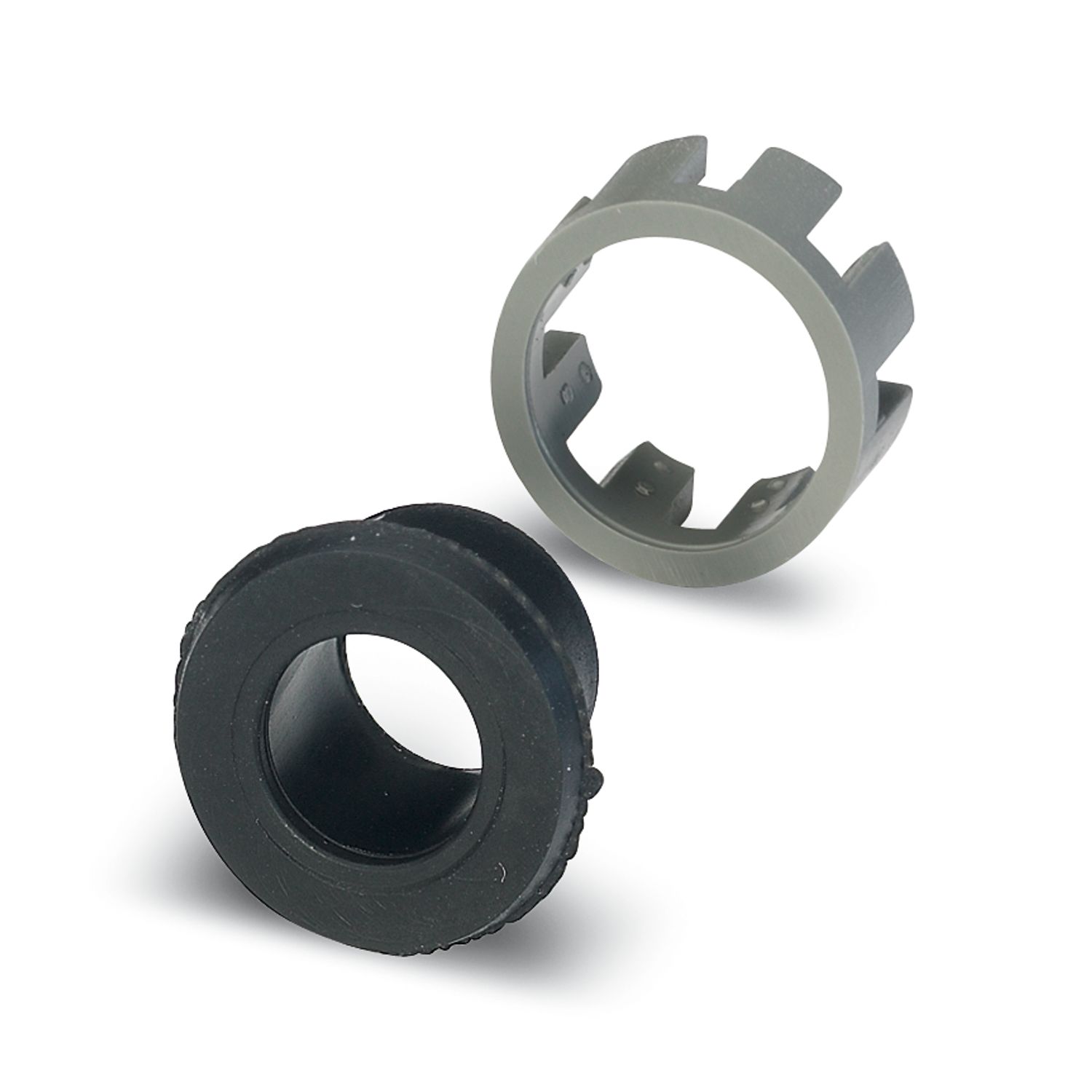

QUICKON panel feed-through, for external panel mounting with manual solder/slip-on connection, 2.8 x 0.8 mm, 3-pos.
Product details
Product type
Panel feed-through
Number of positions
3
Number of connections
3
Connection technology
Connection method On the device side
Manual solder/slip on connection
Frequency of connections between conductors of the same cross section
10 (if the conductor is connected more than once, seal and cap may need to be replaced.)
Conductor connection
Conductor cross section flexibel
0.34 mm² ... 0.75 mm²
Conductor cross section solid
0.34 mm² ... 0.75 mm²
Tightening torque Union nut
2.5 Nm
Tightening torque Contact carrier
3.75 Nm
Tightening torque Locking nut
3.75 Nm

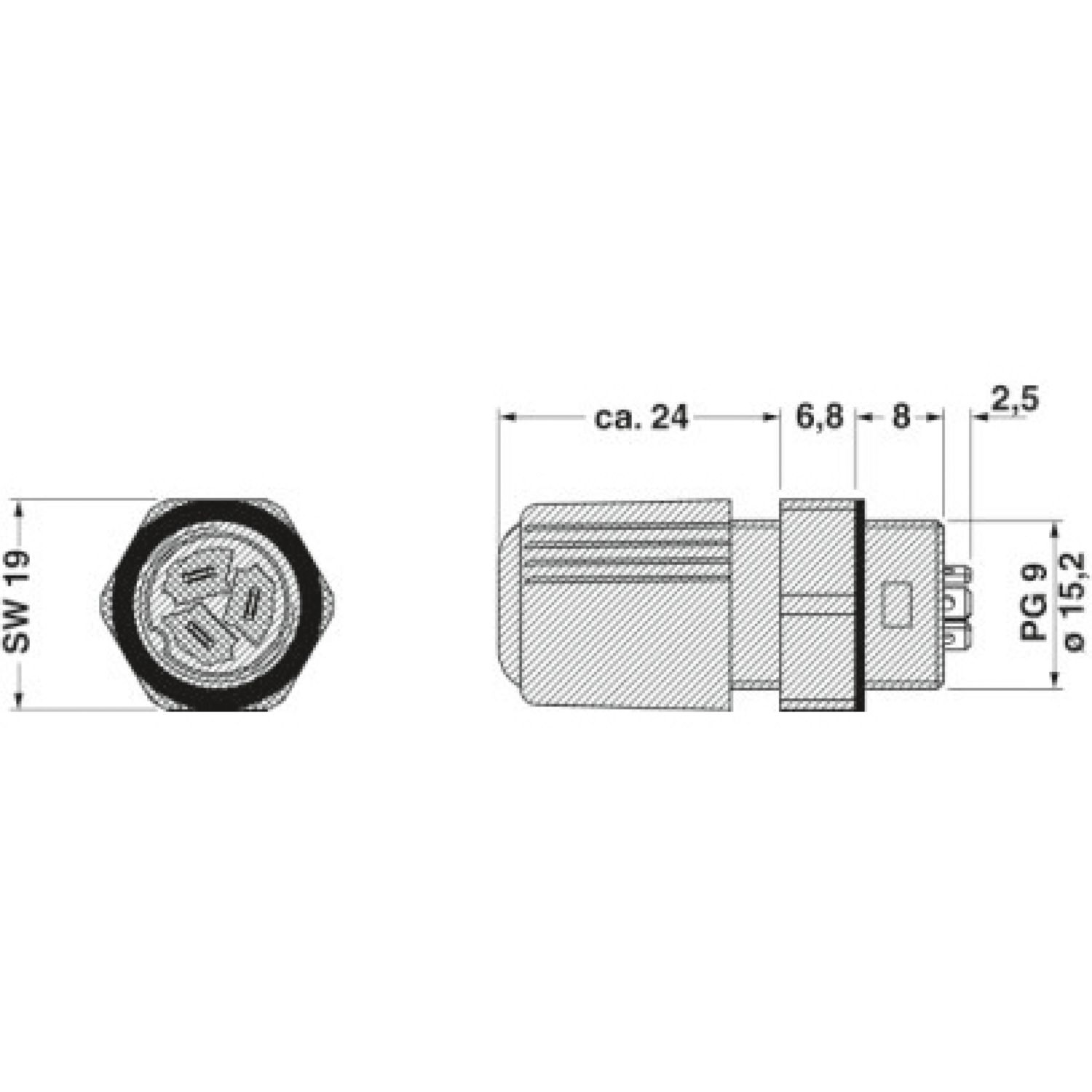

Wrench size Union nut
19 mm
Wrench size Contact carrier
19 mm
Rated voltage (III/3)
160 V (with insulating sleeve)
Nominal current IN
9 A
Color
black (RAL 9005)
Flammability rating according to UL 94
V0
Material wire insulation
PVC / PE
Contact material
Cu alloy
Contact surface material
Pre-nickel plated and tin-plated
Contact carrier material
PA
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
Class 2-6 // 0.34 mm²: 0.1 mm; 0.5 - 0.75 mm²: 0.15 mm
Wire diameter including insulation
2.5 mm
Mounting type
Pg9
Assembly note
If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load.
Ambient conditions
Degree of protection
IP65
IP67
Impact strength
IK06
Ambient temperature (operation)
-25 °C ... 80 °C (Specifications of the cable manufacturer must be observed.)
-25 °C ... 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.)
Item number
1640595
Packing unit
10 pc
Minimum order quantity
1 pc
Product key
AF6HAA
GTIN
4017918173371
Weight per piece (including packing)
16,69 g
Weight per piece (excluding packing)
16,31 g
Country of origin
PL
ECLASS
ECLASS-13.0
27440602
ETIM
ETIM 8.0
EC003569
UNSPSC
UNSPSC 21.0
39121400
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
