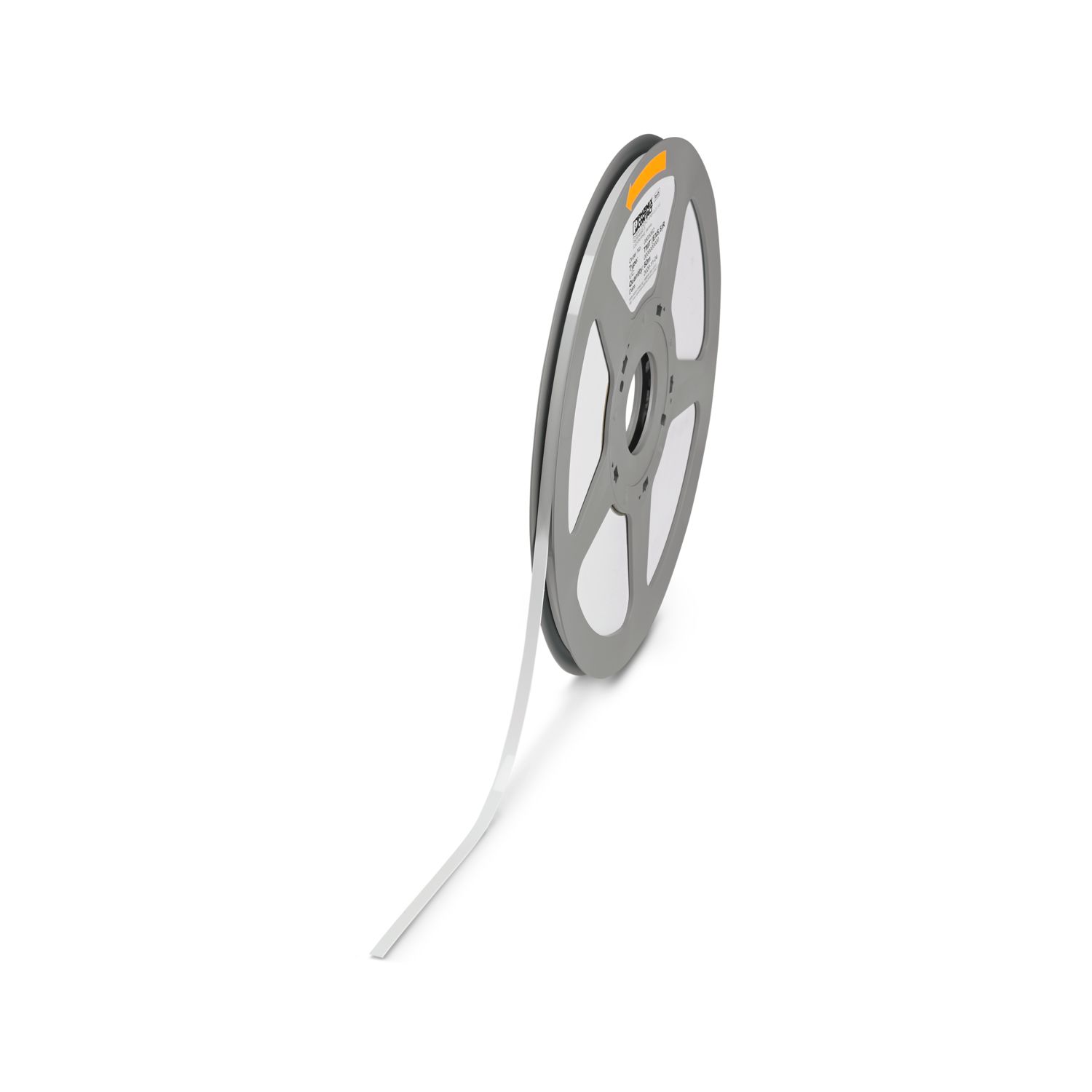

Labeled terminal marker - TMT (EX5,5)R CUS 0803072

Marker for terminal blocks, can be ordered: by line, white, labeled according to customer specifications, mounting type: snap into universal marker groove, snap into flat marker groove, for terminal block width: 50000 mm, lettering field size: 5.5 x 50,000 mm


Product Details




Mounting type snap into universal marker groove

Salt spray test
Test duration 96 h
Specification DIN EN 60068-2-11:2000-02
Result Test passed
Weathering-resistance
Test duration 96 h
Specification Following ISO 4892-2:2013-03
Result Test passed
Wipe resistance of inscriptions
Specification DIN EN 61010-1 (VDE 0411-1):2011-07
Result Test passed
Test for substances that would hinder coating with paint or varnish
Specification VW PV 3.10.7:2005-02
Result Test passed
Ambient conditions
Recommended storage conditions 10 ... 30 °C / 40 ... 70 % relative humidity. Storage in the original packaging is recommended prior to processing.
Ambient temperature (operation) -30 °C ... 80 °C

Length 50 m
Pitch 50000 mm
Width 5.5 mm

Recommended storage conditions 10 ... 30 °C / 40 ... 70 % relative humidity. Storage in the original packaging is recommended prior to processing.
Ambient temperature (operation) -30 °C ... 80 °C

Wipe resistance DIN EN 61010-1 (VDE 0411-1)

Components Silicone-free
RoHS compliant Yes
Color white
Material PVC

Type flat


Order Key 0803072
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BG8
Catalog Page Page 266 (NTK-2014)
GTIN 4046356935708
Weight per Piece (including packing) 1,0 GRM
Weight per Piece (excluding packing) 1,0 GRM
Customs tariff number 49119900
Country of origin PL


Your advantages

The markers that are supplied in roll format can be labeled quickly and cost-effectively using THERMOMARK printers
Labeling service: Phoenix Contact can custom-label all TMT markers according to your requirements
