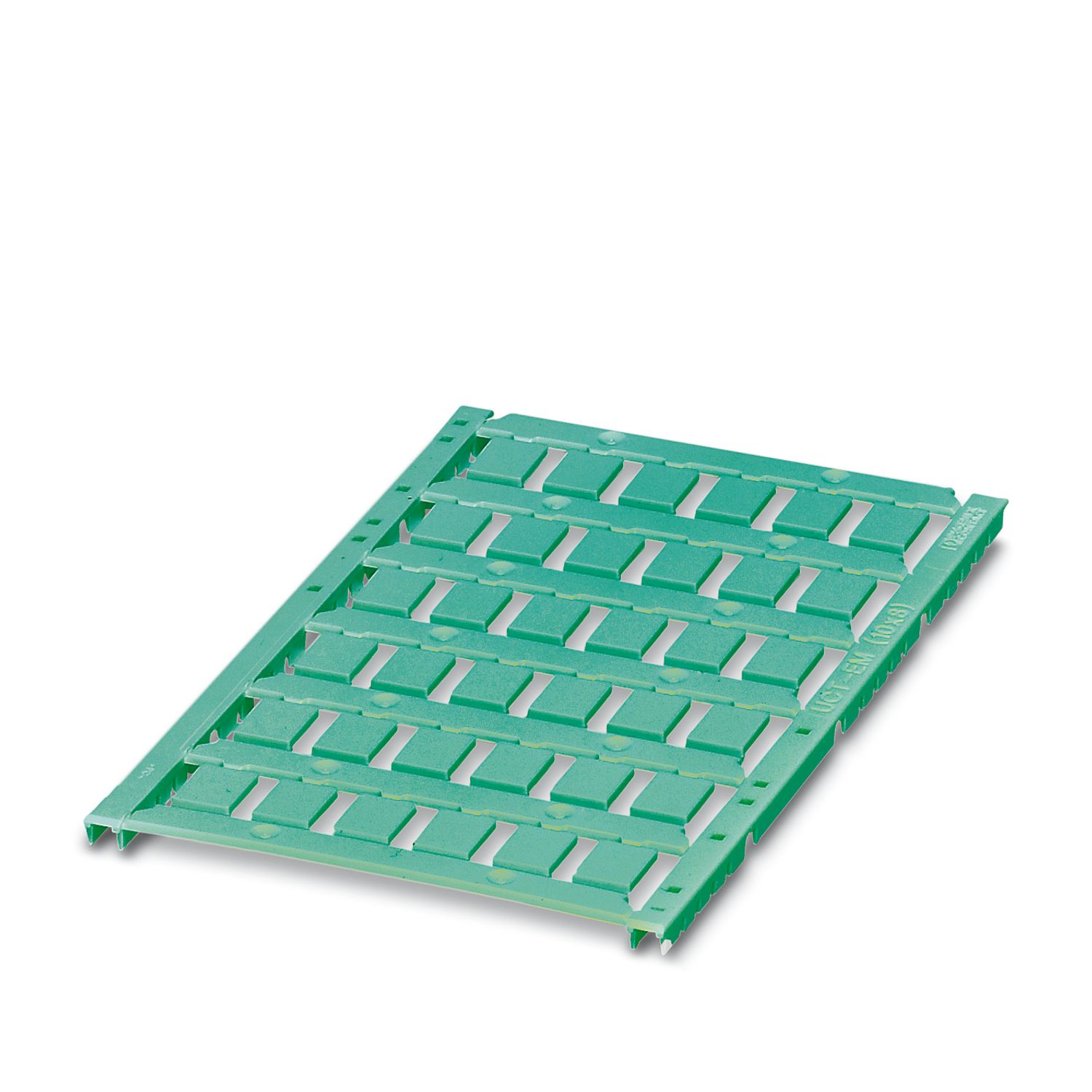

Labeled device marker - UCT-EM (10X8) TQ CUS 0801572

Snap-in markers, can be ordered: by sheet, turquoise, labeled according to customer specifications, mounting type: snapped into marker carrier, lettering field size: 10 x 8 mm, Number of individual labels: 36

Show Product Details (PDF)

Product Details

Marking
Number of individual labels 36
Number of individual labels per row 6
Ambient temperature (operation) -40 °C ... 120 °C
Mounting type snapped into marker carrier
Color turquoise
RoHS compliant Yes
Material PC
Flammability rating according to UL 94 V0
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 - HL 3
Components free from silicone and halogen
Test for substances that would hinder coating with paint or varnish
Specification VW PV 3.10.7:2005-02
Result Test passed
Weathering-resistance
Specification Following ISO 4892-2:2013-03
Result Test passed
Test duration 96 h
Wipe resistance of inscriptions
Specification IEC 61010-1:2010-06
Result Test passed
Salt spray test
Specification DIN EN 60068-2-11:2000-02
Result Test passed
Test duration 96 h
Ambient conditions
Ambient temperature (operation) -40 °C ... 120 °C
Width 10 mm
Length 8 mm
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Order Key 0801572
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BG8
Catalog Page Page 249 (C-5-2013)
GTIN 4046356683111
Weight per Piece (including packing) 14,9 GRM
Weight per Piece (excluding packing) 10,9 GRM
Customs tariff number 49119900
Country of origin PL
