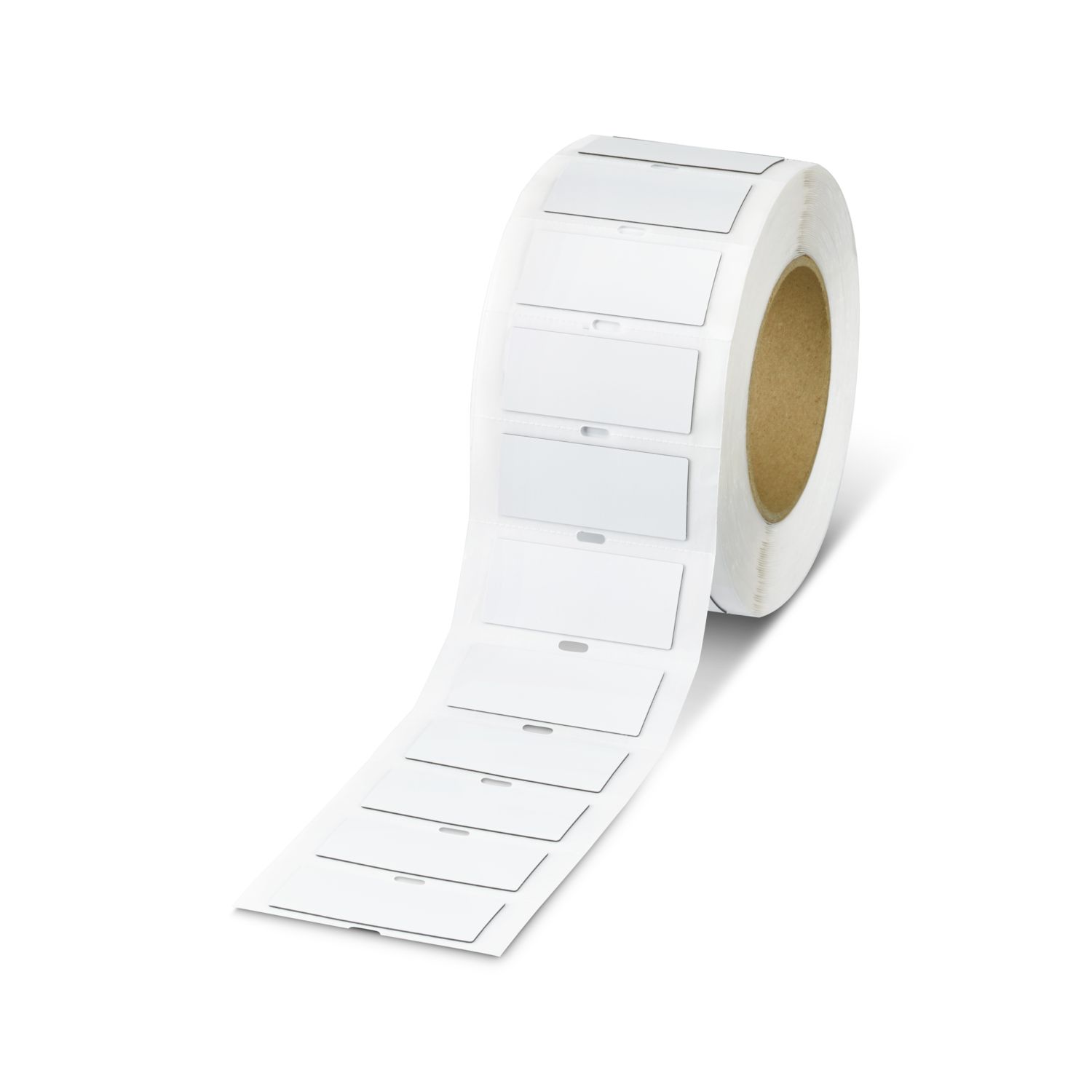

Labeled device marker - EMLP (65X25)R CUS 0802731

Plastic label, can be ordered: by line, white, labeled according to customer specifications, can be labeled with: THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: adhesive, lettering field size: 65 x 25 mm, Number of individual labels: 500


Product Details




Marking
Number of individual labels 500
Number of individual labels per row 1
Marking technology
Device 5146477 THERMOMARK ROLL
5146723 THERMOMARK ROLL X1
5146231 THERMOMARK X1.2
0804501 THERMOMARK ROLLMASTER 300
0804663 THERMOMARK ROLLMASTER 600
Ink ribbon 5145384 THERMOMARK-RIBBON 110
Printability Thermal transfer

Ambient temperature (operation) -40 °C ... 120 °C
Ambient temperature (storage/transport) 4 °C ... 38 °C
Ambient temperature (assembly) 18 °C ... 40 °C
Recommended storage conditions 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.

Mounting type adhesive

Color white
RoHS compliant Yes
Foil strength 50 µm
Adhesive strength 20 µm
Adhesive Acrylic
Material Polyester
Components free from silicone and halogen

Test for substances that would hinder coating with paint or varnish
Specification VW PV 3.10.7:2005-02
Result Test passed
Weathering-resistance
Specification Following ISO 4892-2:2013-03
Result Test passed
Test duration 96 h
Wipe resistance of inscriptions
Specification DIN EN 60068-2-11:2000-02
Result Test passed
Salt spray test
Specification DIN EN 60068-2-11:2000-02
Result Test passed
Test duration 96 h
Ambient conditions
Ambient temperature (operation) -40 °C ... 120 °C
Ambient temperature (storage/transport) 4 °C ... 38 °C
Ambient temperature (assembly) 18 °C ... 40 °C
Recommended storage conditions 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.

Width 65 mm
Length 25 mm

Wipe resistance DIN EN 61010-1 (VDE 0411-1)


Order Key 0802731
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BG8
Catalog Page Page 274 (C-5-2013)
GTIN 4046356845908
Weight per Piece (including packing) 2,0 GRM
Weight per Piece (excluding packing) 2,0 GRM
Customs tariff number 49119900
Country of origin PL



Your advantages

The EMLP ... self-adhesive markers are particularly suited to marking electrical components, devices, and buttons
The markers meet the same standards as the engraved labels. They provide high-quality visuals.
Quick and inexpensive marking with THERMOMARK ... roll printers from PHOENIX CONTACT
When combined with the right ink ribbon, the marking is highly resistant to solvents and mechanical influences. The marking is even suitable for use under harsh industrial conditions.
Labeling service: Phoenix Contact can custom-label all EMLP ... markers in accordance with your requirements
