Housing - HC-HPR-B16-HHWH-1STM32-EM-BK
1411058

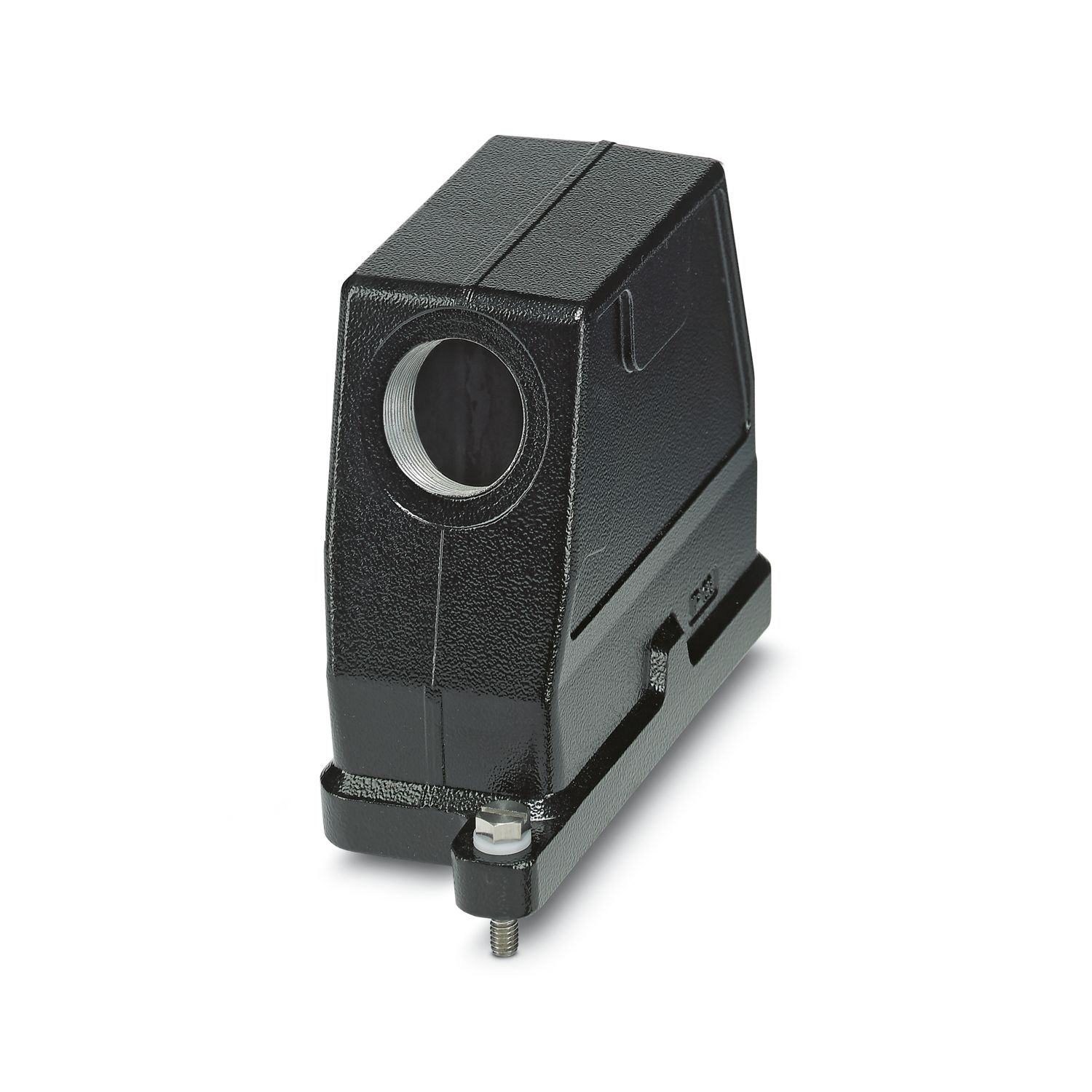

HEAVYCON B16 sleeve housing, HPR series, with screw locking, with M32 thread, lateral outlet, for increased environmental and EMC requirements


Product Details




General For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K

Type B16
Product type Housing with screw locking
Application Railway applications
No. of cable outlets 1
Type of the screw connection 1x M32
Housing type Sleeve housing
Protective cover no
Locking type with screw locking
Series HPR-B16
Cable outlet lateral
Pg screw connection none

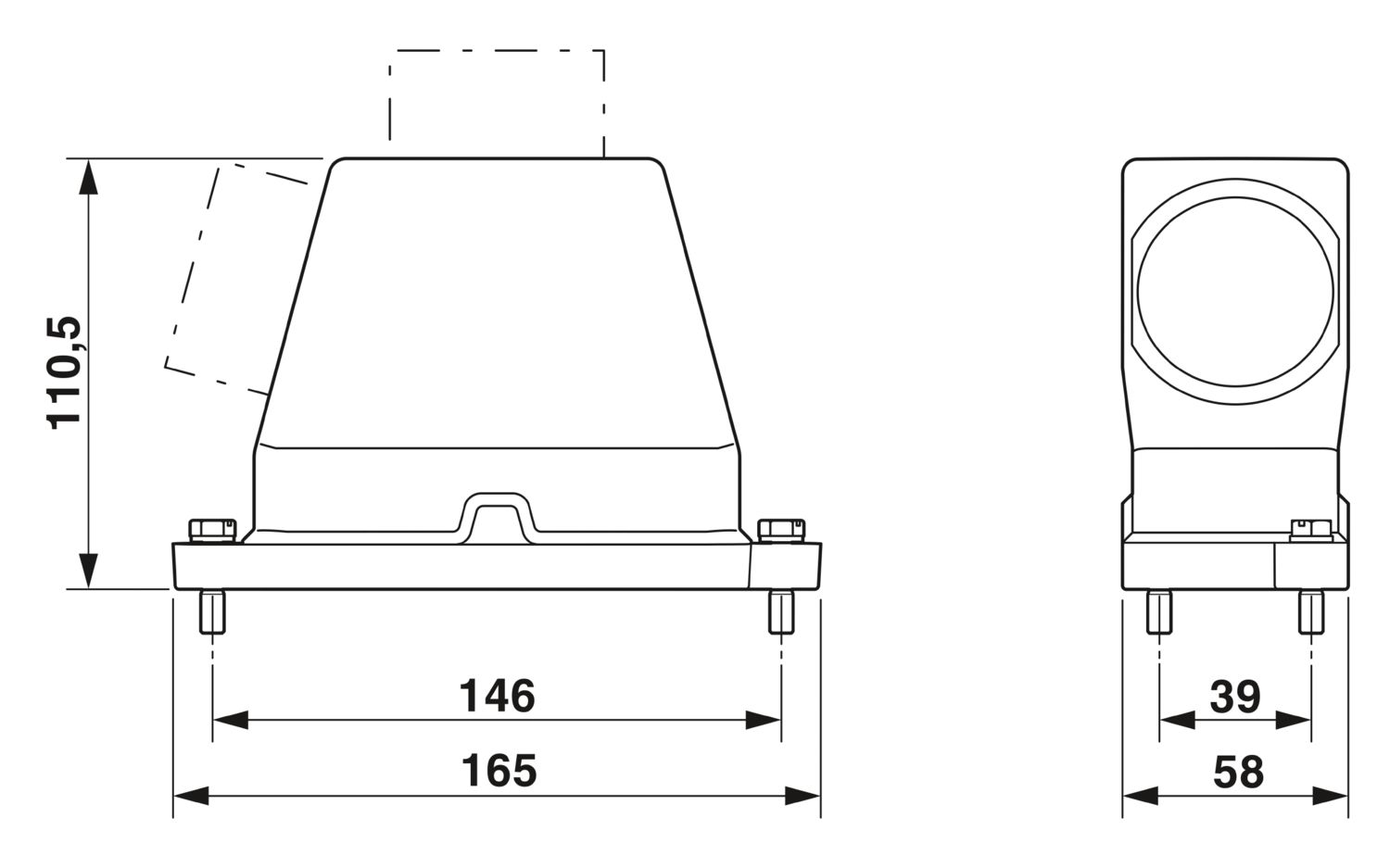

Dimensional drawing
Width 59.2 mm
Height 110.5 mm
Length 166.2 mm

Color black
Housing surface material Powder-coated, black
Material of locking screw Stainless steel
Impact strength IK09
Housing material die-cast aluminum

Degree of protection IP66
IP68 (0.5 bar / 24 h)
IP69 (ISO 20653:2013-02)
Impact strength IK09
Ambient temperature (operation) -40 °C ... 125 °C

Mechanical data
Type of the screw connection 1x M32
Locking type Screw

Assembly instructions M6 locking screw, slotted hexagon head screw (SW10), tightening torque: 4 Nm

Item number 1411058
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BF7
Product Key BF7AAI
Catalog Page Page 628 (C-4-2015)
GTIN 4046356921596
Weight per Piece (including packing) 639,6 g
Weight per Piece (excluding packing) 626,28 g
Customs tariff number 85389099
Country of origin CN


ECLASS

ECLASS-9.0 27440202
ECLASS-10.0.1 27440202
ECLASS-11.0 27440202

ETIM

ETIM 8.0 EC000437

UNSPSC

UNSPSC 21.0

DNV

Approval ID: TAE000037S

EAC

Approval ID: RU C-DE.AI30.B.01102

EAC

Approval ID: RU C-DE.BL08.B.00511

China RoHS Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”

Your advantages

Vibration and shock: IEC 61373/EN 50155, category 1, class 1B
