Housing - HC-ADV-B16-HHWH-1TTM32-EMC-AL
1413416

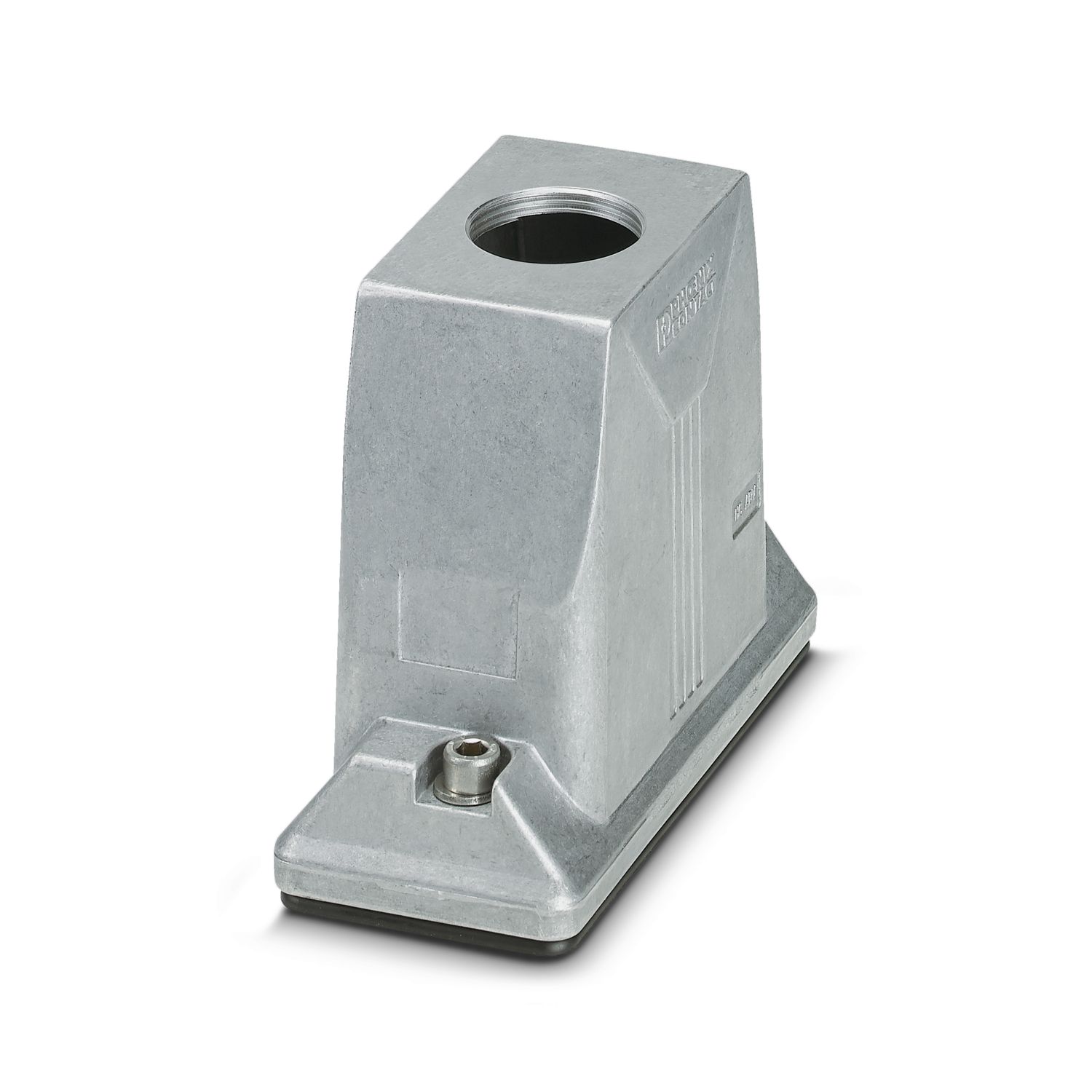

HEAVYCON ADVANCE sleeve housing, B16, with stainless steel screw locking (Allen screw), salt-water-resistant aluminum, height 93.7 mm, with thread, 1x M32 straight cable outlet, without surface; conductive seal (EMC properties)


Product Details




General For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K

Type B16
Product type Housing with screw locking
Application Offshore/EMC
No. of cable outlets 1
Type of the screw connection 1x M32
Fixing screws M6 (screw head: 5 mm Allen screw)
Housing type Sleeve housing
Locking type with screw locking
Cable outlet straight
Pg screw connection none

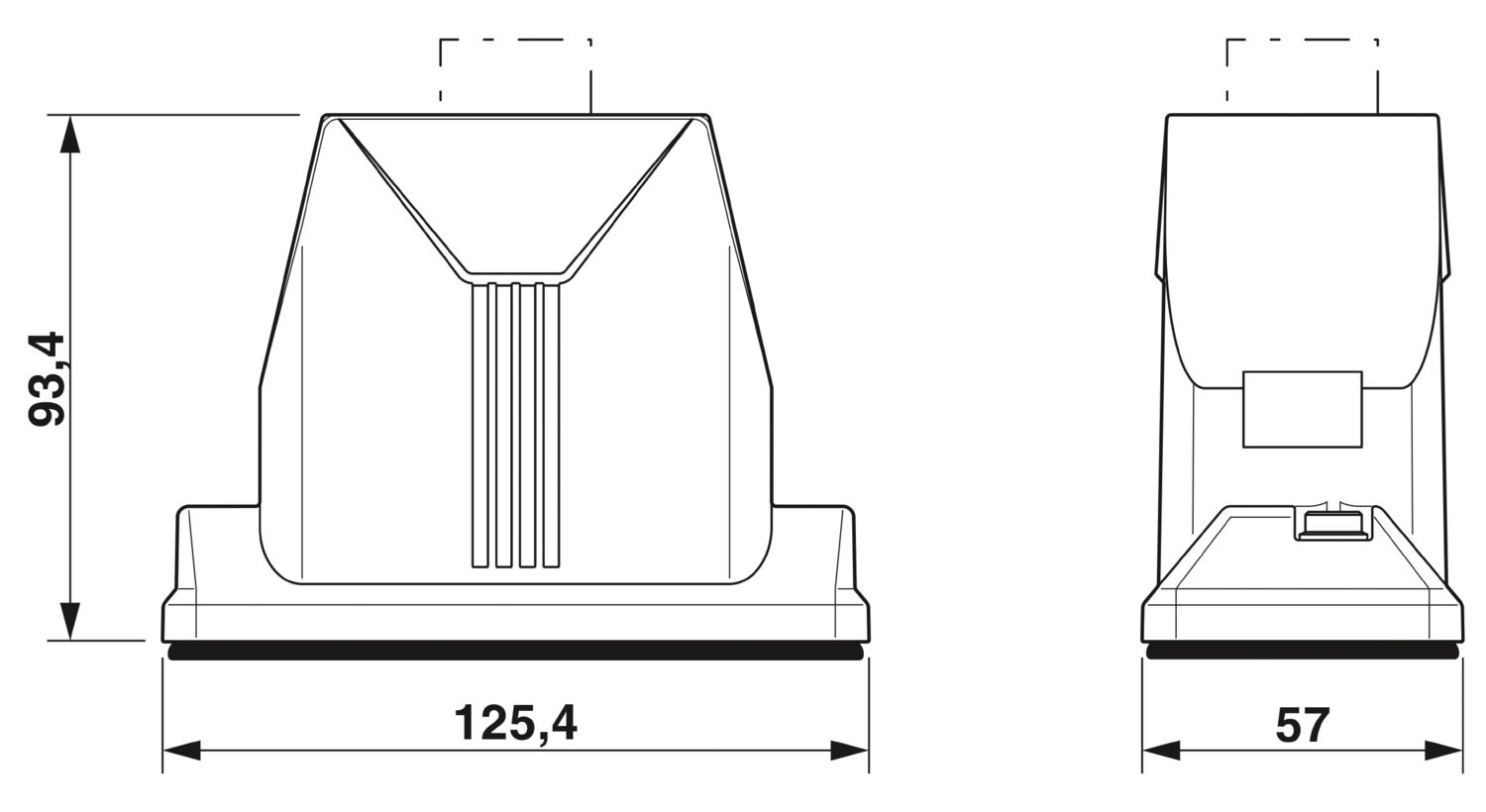

Dimensional drawing
Width 57 mm
Height 93.7 mm
Length 125.5 mm
Installation dimensions
Width of the assembly cutout 35 mm
Length of the assembly cutout 86 mm

Color gray aluminum
Sealing material NBR, conductive
Housing surface material uncoated
Locking latch material Stainless steel
Impact strength IK09
Housing material Die-cast aluminum, salt water resistant

Degree of protection IP66
IP68 (0.2 bar/24 h)
IP69 (ISO 20653:2013-02)
Degree of protection 4 (UL 50e)
4X (UL 50e)
12 (UL 50e)
Impact strength IK09
Ambient temperature (operation) -40 °C ... 125 °C

Mechanical data
Type of the screw connection 1x M32
Locking type Screw

Assembly instructions In order to guarantee that the ground conductor contact functions even when plugged in at an angle, the two panel mounting flanges must have sufficient electrical contact with the metal mounting panel.
To ensure optimum shielding, any insulating power coating must be removed from the profile gasket area on the control cabinet panel. Tightening torque of locking screw: 3 Nm.
Fixing screws M6 (screw head: 5 mm Allen screw)

Item number 1413416
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BF7
Product Key BF7APH
Catalog Page Page 617 (C-2-2019)
GTIN 4055626030388
Weight per Piece (including packing) 311,4 g
Weight per Piece (excluding packing) 311,4 g
Customs tariff number 85389099
Country of origin PL


ECLASS

ECLASS-9.0 27440202
ECLASS-10.0.1 27440202
ECLASS-11.0 27440202

ETIM

ETIM 8.0 EC000437

UNSPSC

UNSPSC 21.0

DNV

Approval ID: TAE000037S

cUL Recognized

Approval ID: E255026

UL Recognized

Approval ID: E255026

EAC

Approval ID: RU C-DE.AI30.B.01102

EAC

Approval ID: RU C-DE.BL08.B.00511

cULus Recognized


China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
