HC-HV 3-TFL-52/M1PG16S - Housing

HC-HV 3-TFL-52/M1PG16S - Housing

1773501

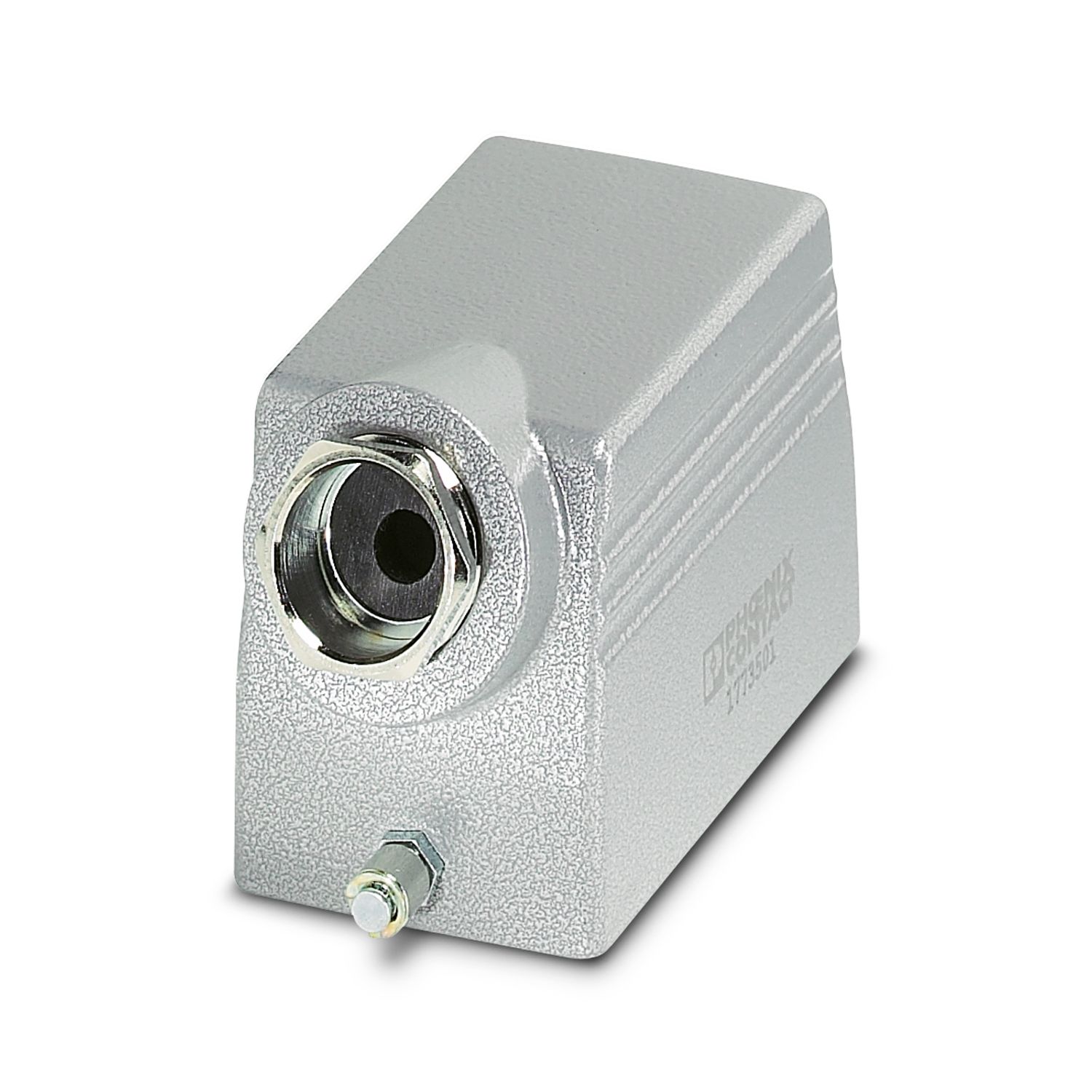

Sleeve housing, for single locking latch, height 52 mm, with screw connection, 1x Pg16, lateral cable entry

Product details

Expand all Collapse all

Technical data

Notes

General	For contact inserts HV-HV3

Product properties

Product type	Housing with locking latch
Housing type	Sleeve housing
Application	Standard
Type	HV3
No. of cable outlets	1
Type of the screw connection	1x Pg16
Cable outlet	lateral
Pg screw connection	with

Dimensions

Width	43 mm
Height	52 mm
Length	73 mm
Wrench size, union nut	22 mm

Material specifications

Material Screw connection	Brass, nickel-plated
Seal material Cable seal	NBR
Housing material	Die-cast aluminum
Housing surface material	Powder-coated, gray

Mechanical properties

Mechanical data
Type of the screw connection	1x Pg16

Cable/line

External cable diameter	7.5 mm ... 15 mm

Connection data

External cable diameter	7.5 mm ... 15 mm

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP65
Ambient temperature (operation)	-40 °C ... 125 °C

Commercial data

Item number	1773501
Packing unit	10 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	020
Product key	AF7AAB
GTIN	4017918115524
Weight per piece (including packing)	167,61 g
Weight per piece (excluding packing)	167,61 g
Customs tariff number	85389099
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0

27440202

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
