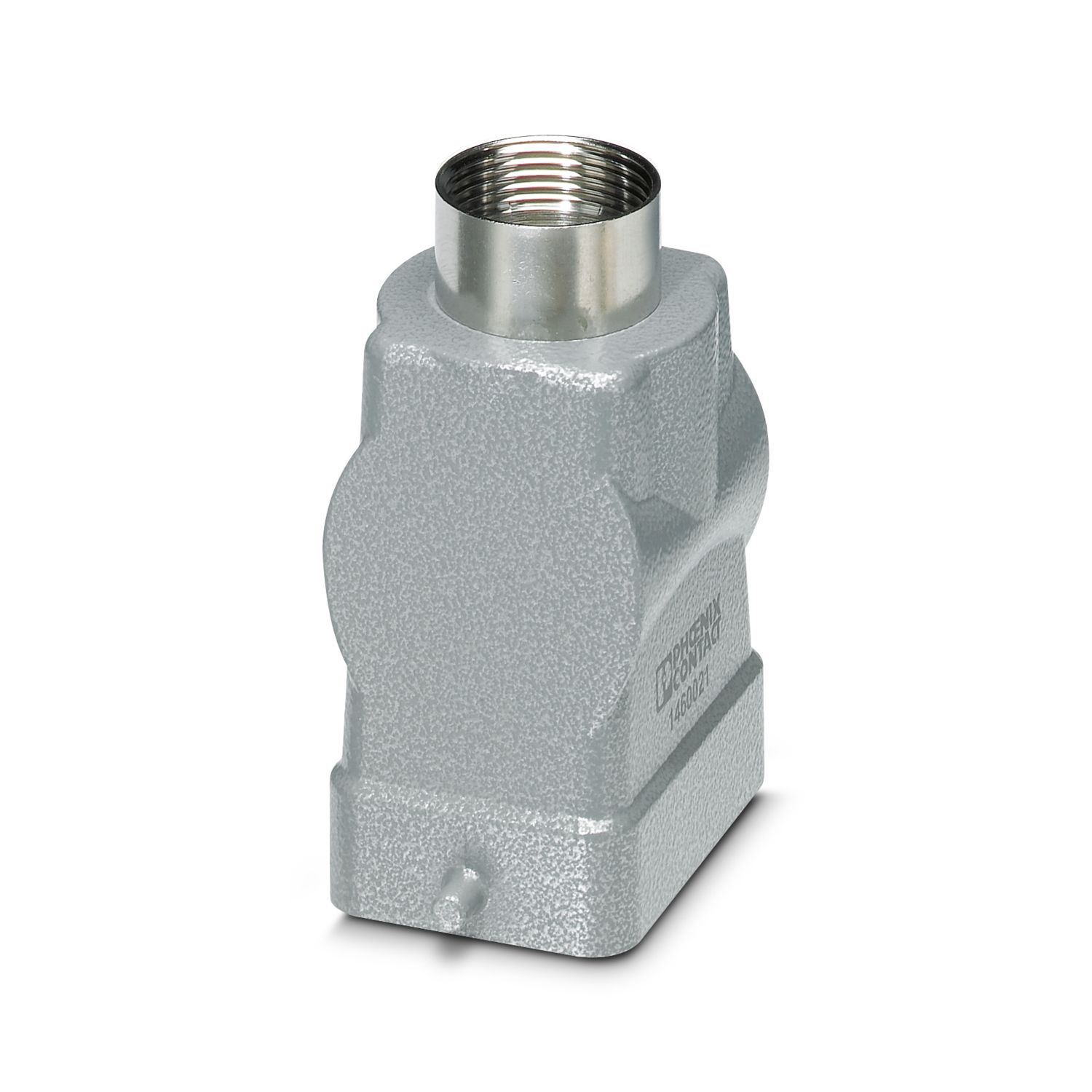

Housing with locking latch - HC-B 6-TFL-H-O1PG29G 1460023

HEAVYCON B6 sleeve housing, for single locking latch, height: 72 mm, with 1 x Pg29 gland, straight cable outlet

Product Details

Type B6
Application Standard
Type of the screw connection 1x Pg29
Housing type Sleeve housing
Locking type for single locking latch

Shielded no
No. of cable outlets 1
Cable outlet straight
Pg screw connection none

Degree of protection IP65
Degree of protection IP65
Ambient temperature (operation) -40 °C ... 125 °C

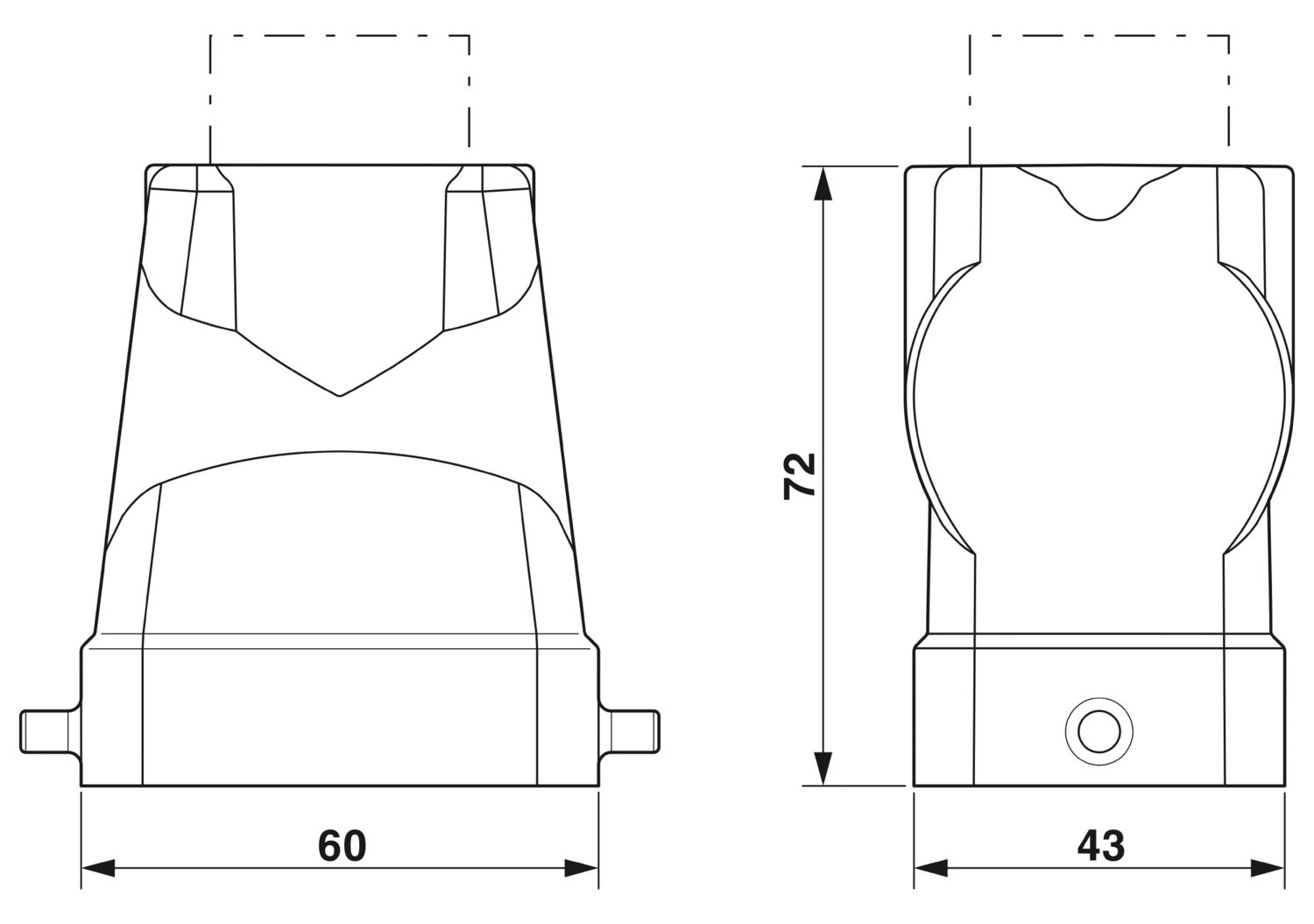

Dimensional drawing
Width 43 mm
Height 72 mm
Length 60 mm

Housing surface material Powder-coated, gray
Housing material die-cast aluminum

General For contact inserts HC-B6, BB10, DD24, M

Mechanical data
Type of the screw connection 1x Pg29
Locking type Pin
Locking type for single locking latch

Order Key 1460023
Packing unit 10 pc
Minimum order quantity 1 pc
Sales Key BF7
Catalog Page Page 486 (C-4-2013)
GTIN 4046356695152
Weight per Piece (including packing) 180,5 GRM
Weight per Piece (excluding packing) 108,0 GRM
Customs tariff number 85389099
Country of origin DE


China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
