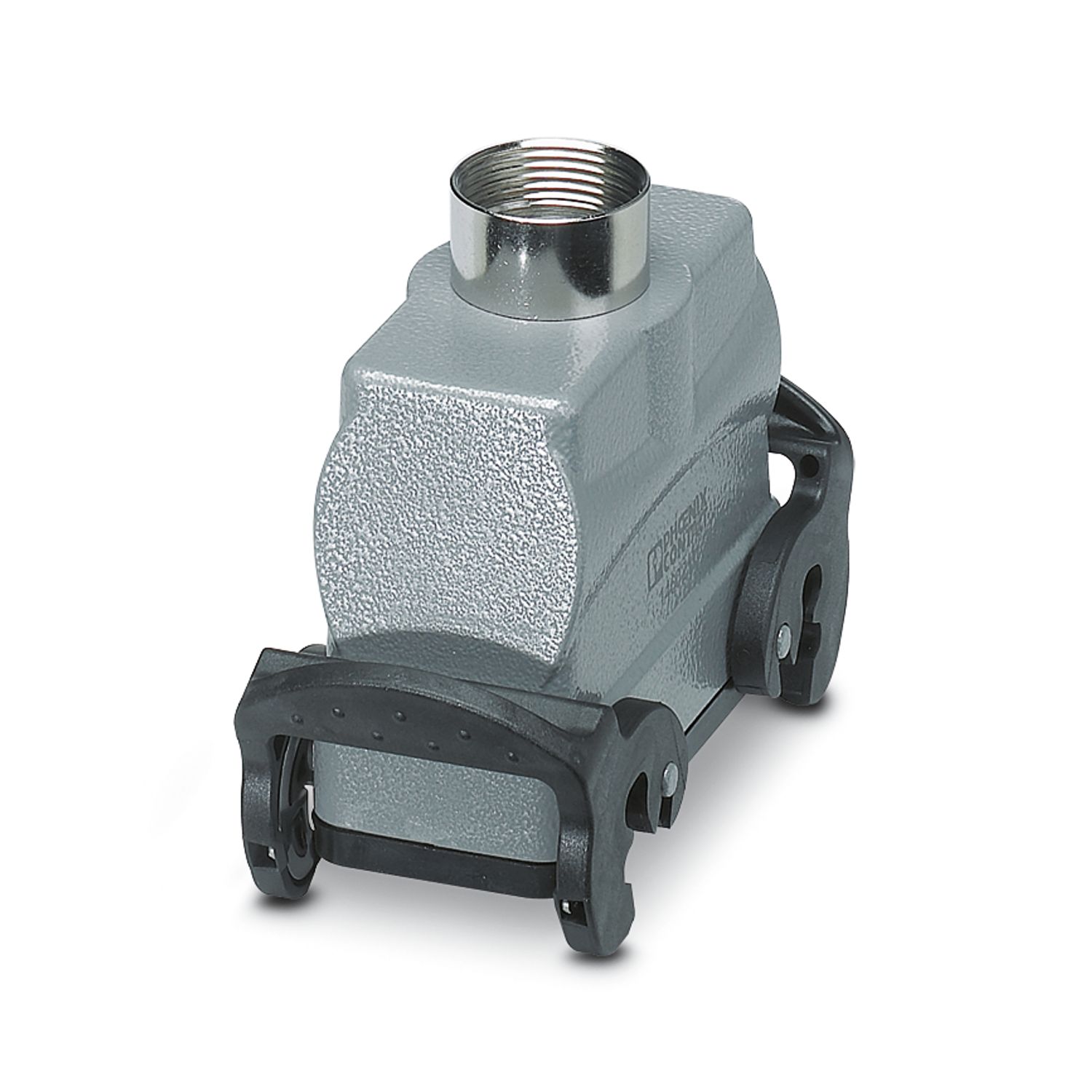

Housing with locking latch - HC-B 24-KMQ-H-O1PG29 1460330

HEAVYCON B24 coupling housing, with double locking latch, height: 81.5 mm, with 1 x Pg29 gland, straight cable outlet


Product Details




Type B24
Application Standard
Type of the screw connection 1x Pg29
Housing type Coupling housings
Locking type with double locking latch

Shielded no
No. of cable outlets 1
Cable outlet straight
Pg screw connection none

Degree of protection IP65
Degree of protection IP65
Ambient temperature (operation) -40 °C ... 125 °C

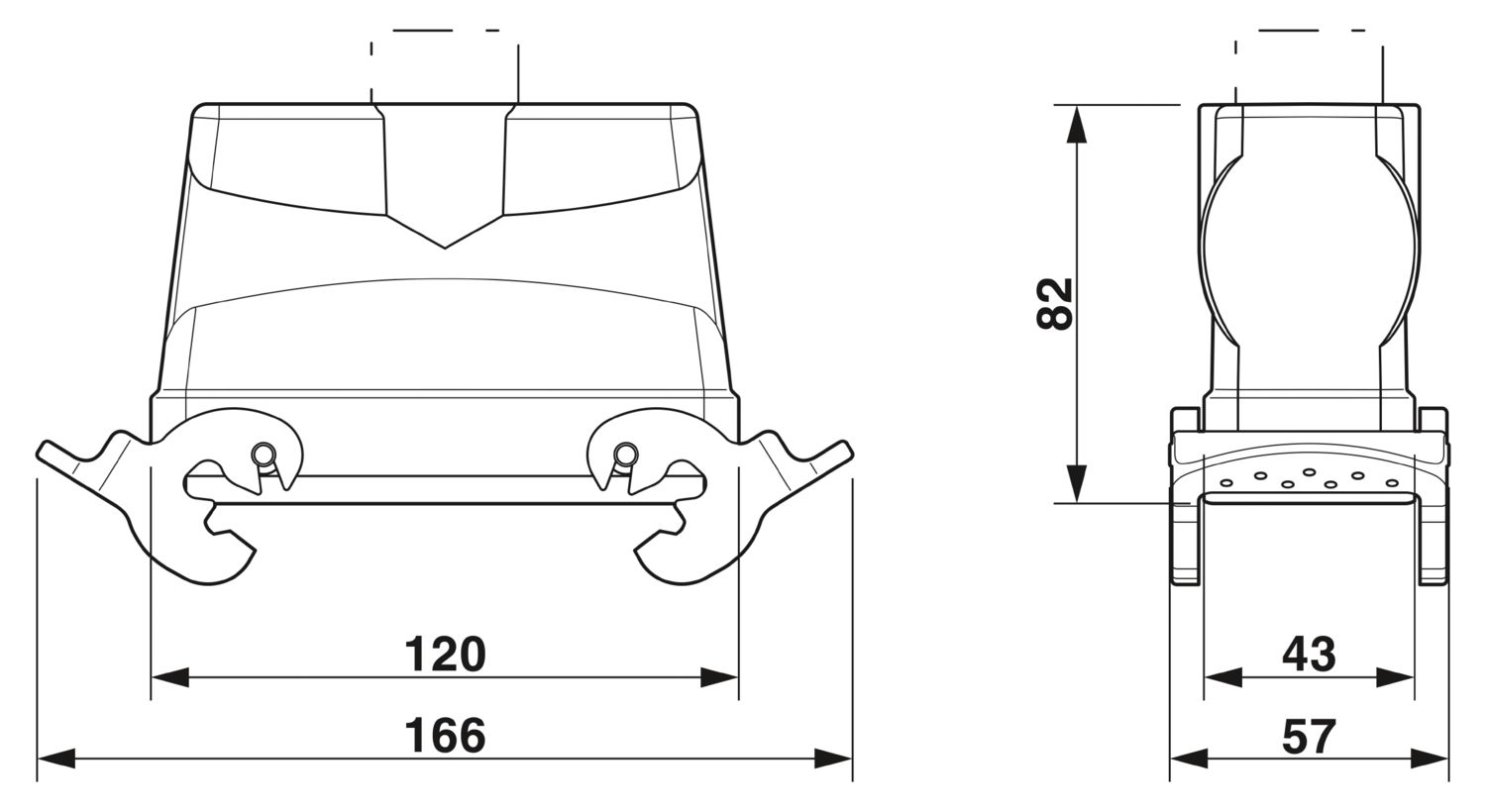

Dimensional drawing
Width 43 mm
Height 82 mm
Length 120 mm

Seal material NBR
Housing surface material Powder-coated, gray
Material grip body interlock PA
Locking latch material Stainless steel, handle: PA
Housing material die-cast aluminum

General For contact inserts HC-B24, BB46, BBB64, D64, DD108, M

Mechanical data
Type of the screw connection 1x Pg29
Locking type Latch
Interlock
Locking type with double locking latch


Order Key 1460330
Packing unit 10 pc
Minimum order quantity 1 pc
Sales Key BF7
Catalog Page Page 534 (C-4-2013)
GTIN 4046356696166
Weight per Piece (including packing) 330,6 GRM
Weight per Piece (excluding packing) 311,0 GRM
Customs tariff number 85389099
Country of origin DE



EAC


China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
