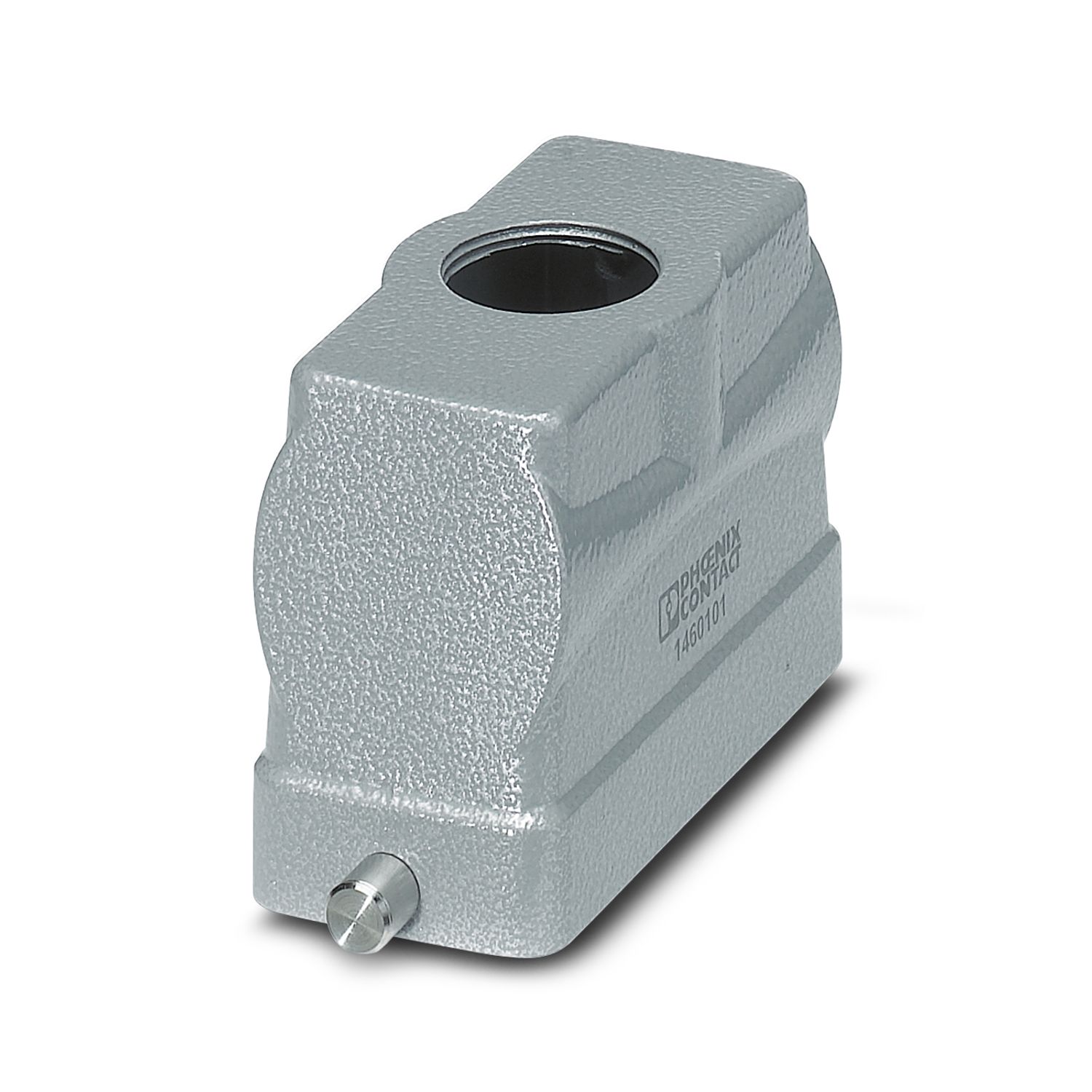

Housing with locking latch - HC-B 16-TFL-N-O1STM25G 1460100

HEAVYCON B16 sleeve housing, for single locking latch, height: 65 mm, with 1 x M25 thread, straight cable outlet

Product Details

Type B16
Application Standard
Type of the screw connection 1x M25
Housing type Sleeve housing
Locking type for single locking latch

Shielded no
No. of cable outlets 1
Cable outlet straight
Pg screw connection none

Degree of protection IP65 (When plugged in)
Degree of protection IP65
Ambient temperature (operation) -40 °C ... 125 °C

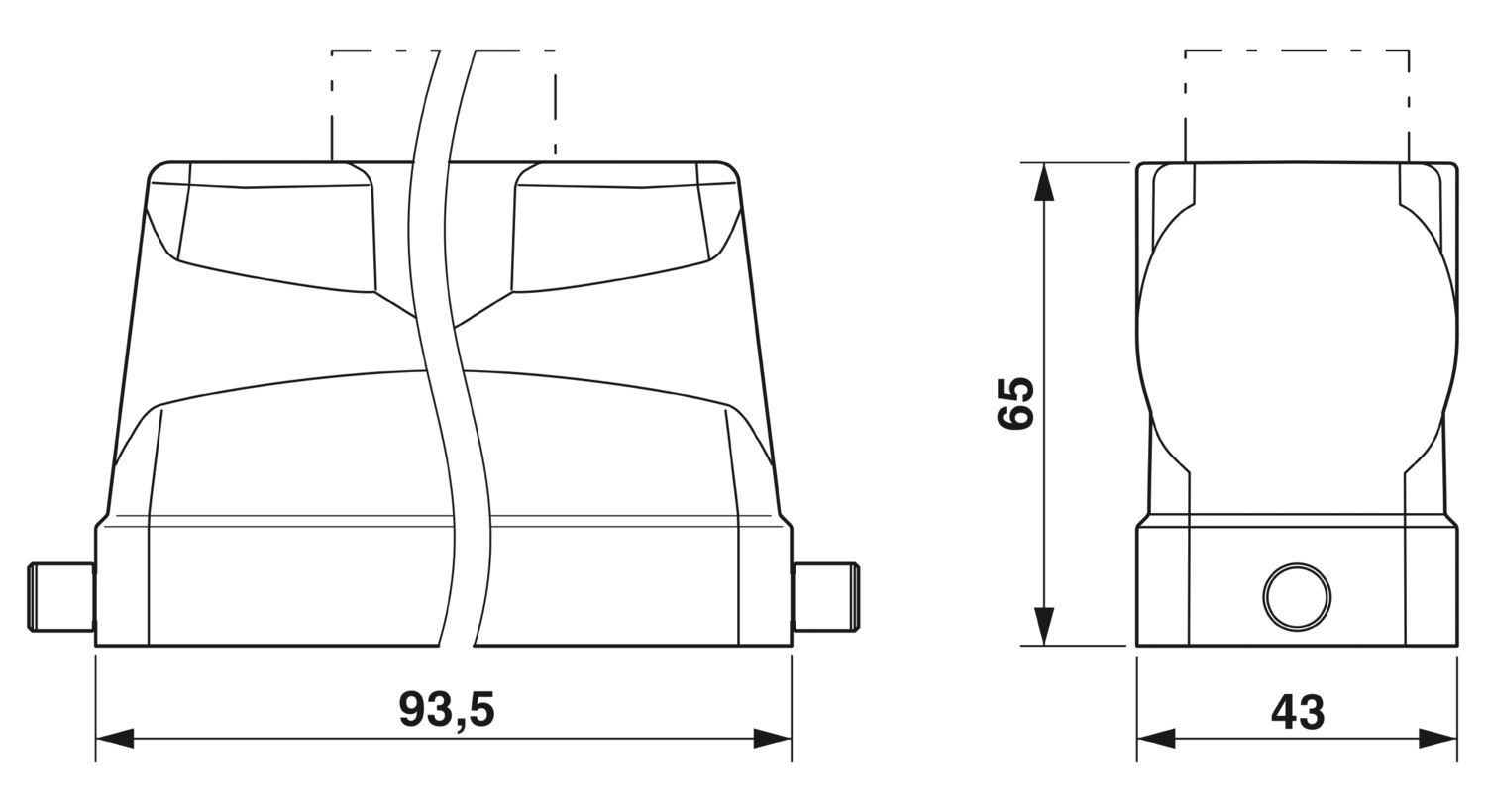

Dimensional drawing
Width 43 mm
Height 65 mm
Length 94 mm

Housing surface material Powder-coated, gray
Housing material die-cast aluminum

General For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K

Mechanical data
Type of the screw connection 1x M25
Locking type Pin
Locking type for single locking latch

Order Key 1460100
Packing unit 10 pc
Minimum order quantity 1 pc
Sales Key BF7
Catalog Page Page 510 (C-4-2013)
GTIN 4046356695930
Weight per Piece (including packing) 190,2 GRM
Weight per Piece (excluding packing) 187,9 GRM
Customs tariff number 85389099
Country of origin DE


China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
