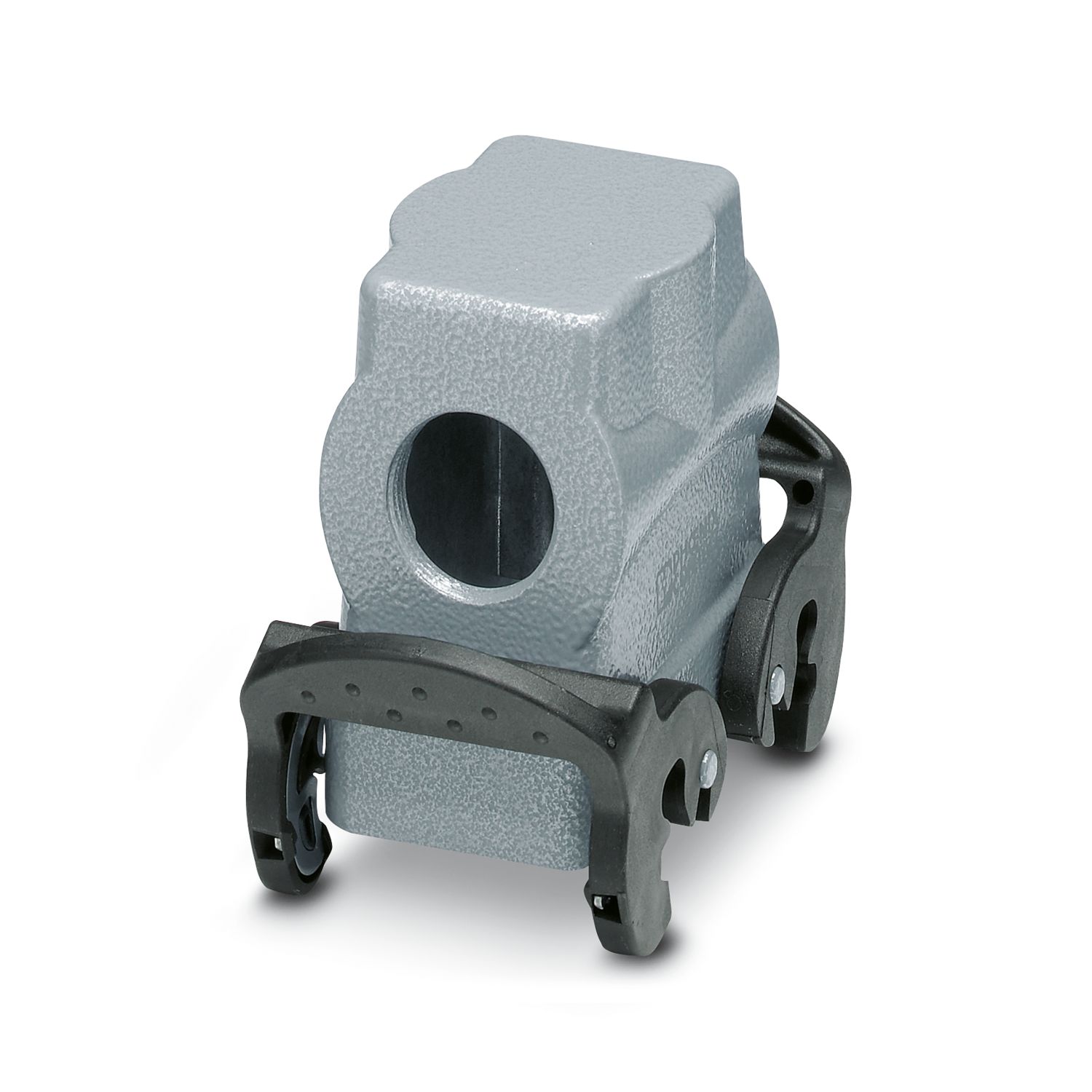

Housing with locking latch - HC-B 10-TMQ-H-O1STM25S 1460098

HEAVYCON sleeve housing B10, with double locking latch, height 72 mm, with thread 1x M25, lateral conductor exit


Product Details




Type B10
Application Standard
Type of the screw connection 1x M25
Housing type Sleeve housing
Locking type with double locking latch

No. of cable outlets 1
Cable outlet lateral
Pg screw connection none

Degree of protection IP65
Degree of protection IP65
Ambient temperature (operation) -40 °C ... 125 °C

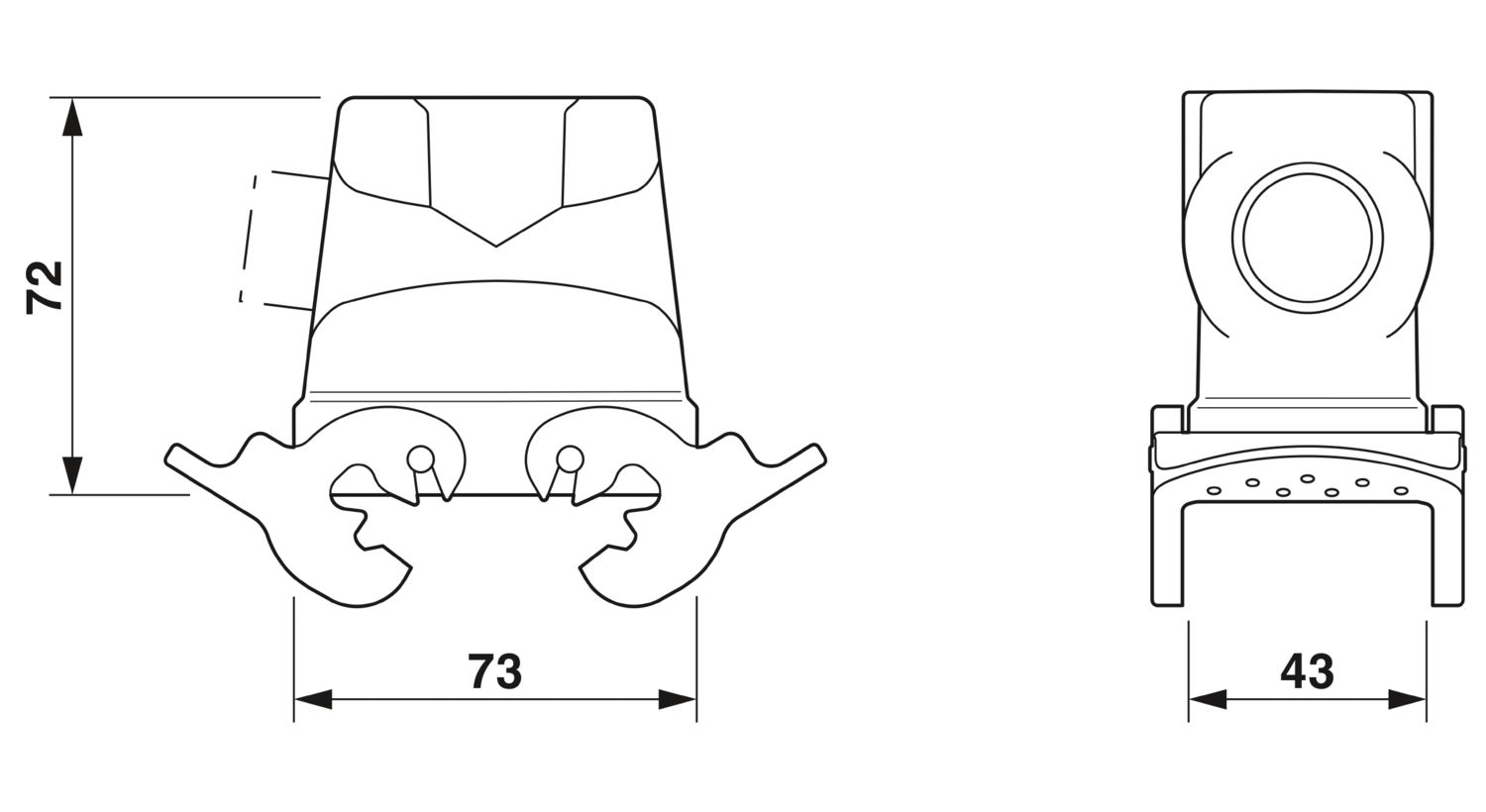

Dimensional drawing
Width 43 mm
Height 72 mm
Length 73 mm

Housing surface material Powder-coated, gray
Material grip body interlock PA
Locking latch material Stainless steel, handle: PA
Housing material die-cast aluminum

General For contact inserts HC-B10, BB18, DD42, M, K8/24

Mechanical data
Type of the screw connection 1x M25
Locking type Latch
Interlock
Locking type with double locking latch


Order Key 1460098
Packing unit 10 pc
Minimum order quantity 1 pc
Sales Key BF7
Catalog Page Page 502 (C-4-2013)
GTIN 4046356793469
Weight per Piece (including packing) 201,3 GRM
Weight per Piece (excluding packing) 201,3 GRM
Customs tariff number 85389099
Country of origin DE



EAC

EAC


China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
