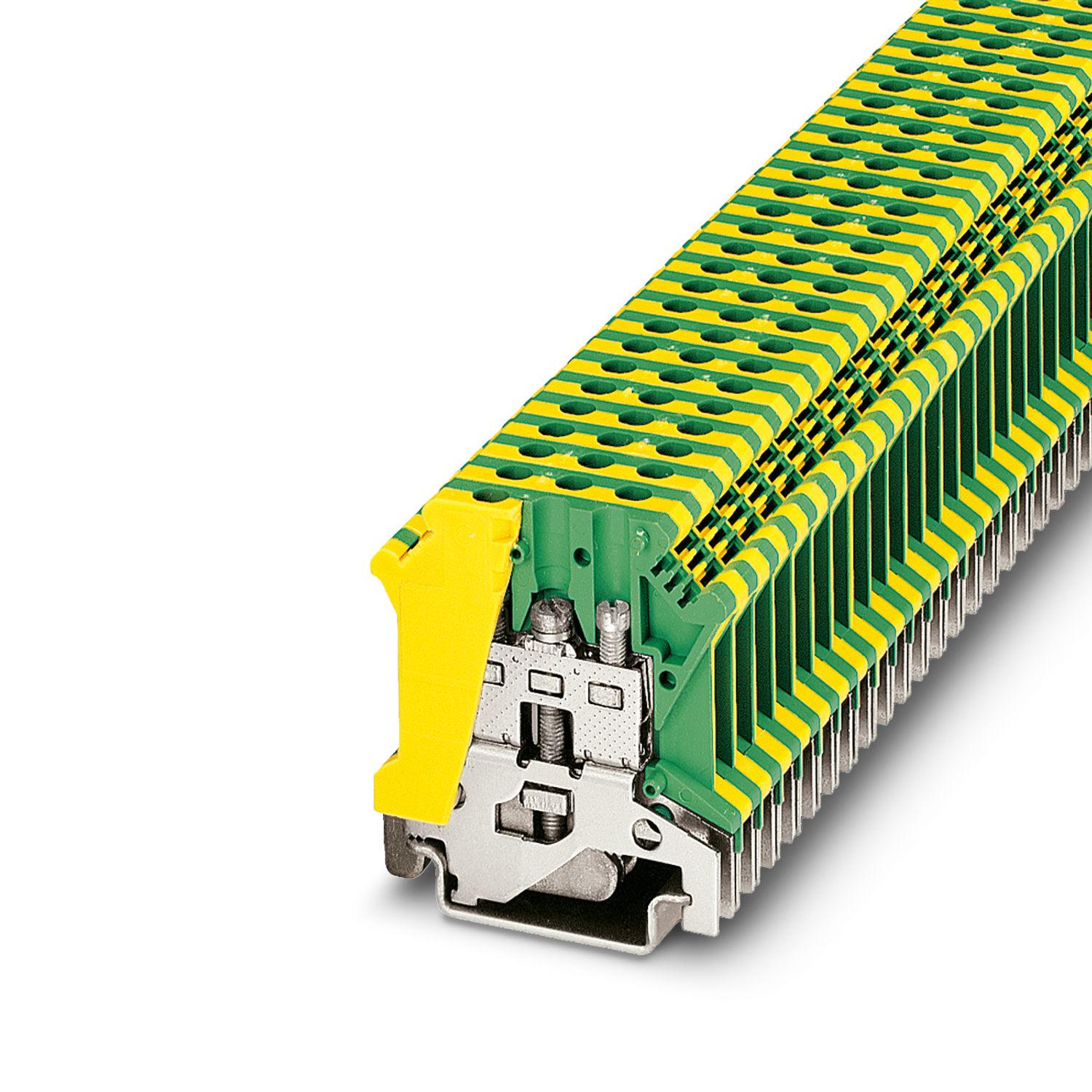

Ground terminal block - USLKG 4 0441012

Ground modular terminal block, connection method: Screw connection, number of connections: 2, number of positions: 1, cross section: 0.2 mm2 - 4 mm2, AWG: 24 - 12, width: 6.2 mm, color: green-yellow, mounting type: NS 35/7,5, NS 35/15, NS 32


Product Details




Ambient conditions
Ambient temperature (operation) -60 °C ... 105 °C (max. short-term operating temperature 130°C)
Ambient temperature (assembly) -5 °C ... 70 °C
Ambient temperature (storage/transport) -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport) 30 % ... 70 %
Ambient temperature (actuation) -5 °C ... 70 °C
Oscillation/broadband noise
Shocks

General When aligning with a feed-through terminal block with the same shape, an end cover must be interposed with insulation voltages of > 690 V

Rated surge voltage 8 kV

Mechanical data
Open side panel No

Height NS 35/15 54.5 mm
Height NS 32 52 mm
Length 42.5 mm
Height 1.85 "
Width 6.2 mm
Height NS 35/7,5 47 mm

Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Static insulating material application in cold -60 °C
Insulating material group I
Color green-yellow
Surface flammability NFPA 130 (ASTM E 162) passed
Calorimetric heat release NFPA 130 (ASTM E 1354) 28 MJ/kg
Smoke gas toxicity NFPA 130 (SMP 800C) passed
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 - HL 3
Insulating material PA
Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Flammability rating according to UL 94 V0
Specific optical density of smoke NFPA 130 (ASTM E 662) passed

Mounting type NS 35/7,5
NS 35/15
NS 32

Grounding foot Yes
Screw thread M3
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) 0.5 mm2 ... 2.5 mm2
Stripping length 9 mm
2 conductors with same cross section, flexible 0.2 mm2 ... 1 mm2
Conductor cross section flexible 0.2 mm2 ... 4 mm2
2 conductors with same cross section, solid 0.2 mm2 ... 1.5 mm2
Conductor cross section, flexible [AWG] 24 ... 12
Number of connections per level 2
Flexible conductor cross section flexible (ferrule, w/o plastic sleeve) 0.25 mm2 ... 2.5 mm2
2 conductors with same cross section, flexible, with ferrule without plastic sleeve 0.25 mm2 ... 1.5 mm2
Flexible conductor cross section (ferrule with plastic sleeve) 0.25 mm2 ... 1.5 mm2
Conductor cross section solid 0.2 mm2 ... 4 mm2
Nominal cross section 4 mm2
Note Please observe the current carrying capacity of the DIN rails.
Tightening torque 0.6 ... 0.8 Nm
Connection in acc. with standard IEC 60947-7-2
PEN function No
Cross section AWG 24 ... 12

Connection in acc. with standard IEC 60947-7-2

Number of positions 1
Number of levels 1
Number of connections 2
Insulation characteristics
Overvoltage category III
Degree of pollution 3


Order Key 0441012
Packing unit 50 pc
Minimum order quantity 1 pc
Sales Key 010
GTIN 4017918002121
Weight per Piece (including packing) 22,3 GRM
Weight per Piece (excluding packing) 21,8 GRM
Customs tariff number 85369010
Country of origin TR



DNV GL

CSA

Approval Specification Data
AWG/kcmil
Min. cross section 28 mm²
Max. cross section 12 mm²

KR

NK

UL Recognized

Approval Specification Data
AWG/kcmil
Min. cross section 24 mm²
Max. cross section 12 mm²

cUL Recognized

Approval Specification Data
AWG/kcmil
Min. cross section 24 mm²
Max. cross section 12 mm²

EAC

LR

EAC

cULus Recognized


REACh SVHC 4-Nonylphenol, ethoxylated
China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
