HC-M-KV-M20(1ASI)
-
Cable gland
1584017
Metal screw connection for an AS-Interface flat-ribbon conductor, thread type M20
Product details
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Type of the screw connection | M20 |
| Manufacturer | Jacob |
| Manufacturer Designation | 50.620 M/ASI/1 |
| Shielded | no |

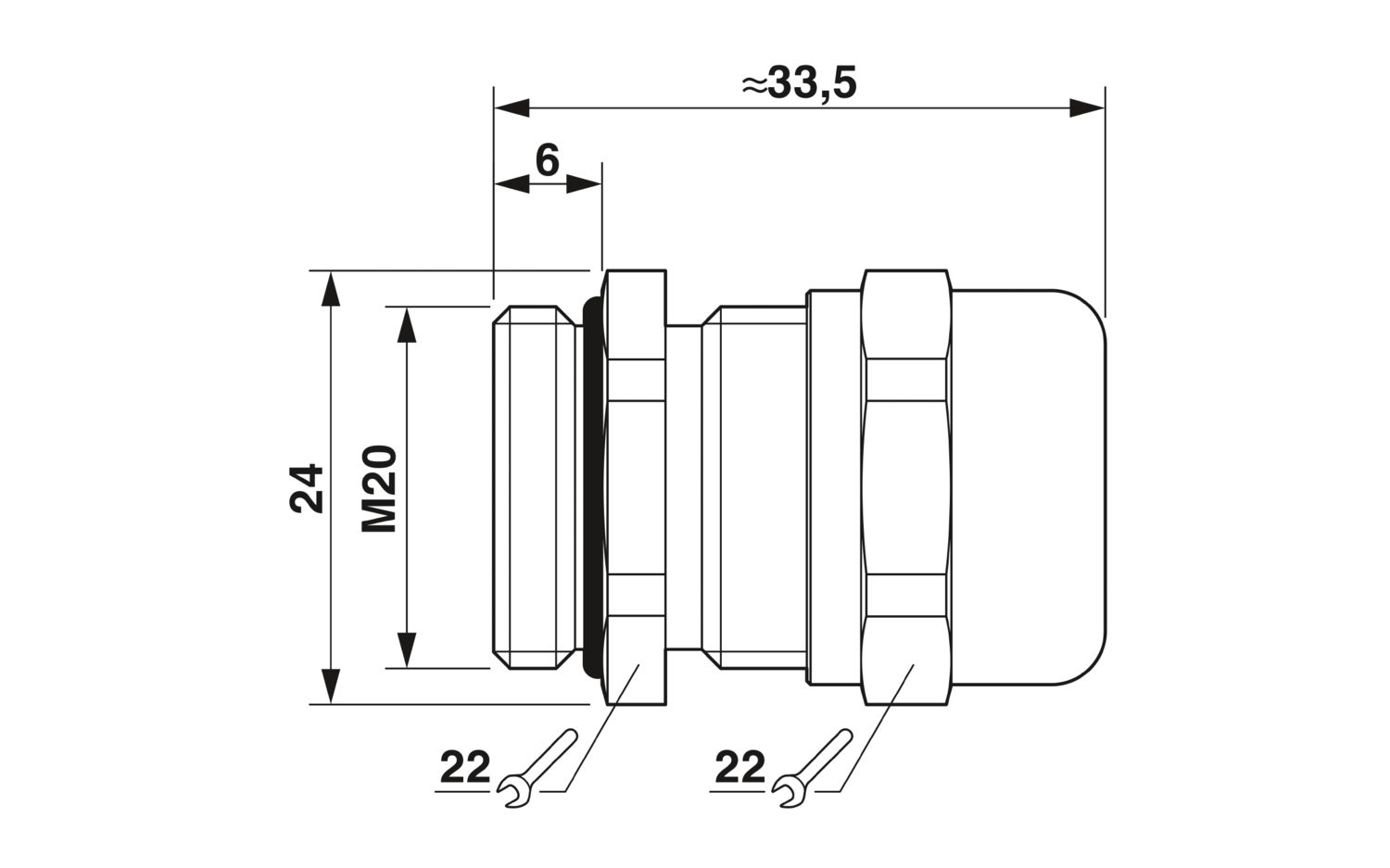

| Dimensional drawing |
|
| Length | 33.5 mm |
| Length of the connecting thread | 6 mm |
| Hole diameter | 20.1 mm ... 20.2 mm |
| Wrench size, union nut | 22 mm |
| Wrench size, support | 22 mm |
| Hexagon angular dimension | 24 mm |
| Thread type connection side | M20 x 1.5 |
| Thread pitch | 1.5 mm |
| Tightening torque | 7.5 Nm (Union nut) |
| 7.5 Nm (Support sleeve) |
| Material Compression ring | PA |
| Seal material O-ring | NBR |
| Seal material Cable seal | TPE |
| Material for screw connection | Brass, nickel-plated |
| External cable diameter Cable 1 | For AS-Interface flat-ribbon cable |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -20 °C ... 100 °C |
