A-INLE-M50-N-S
-
EMC nut
1411273
EMC nut, for threads M50 x 1.5, color: silver-colored
Product details
| Product type | Flat nut |
| Thread type | M50 |

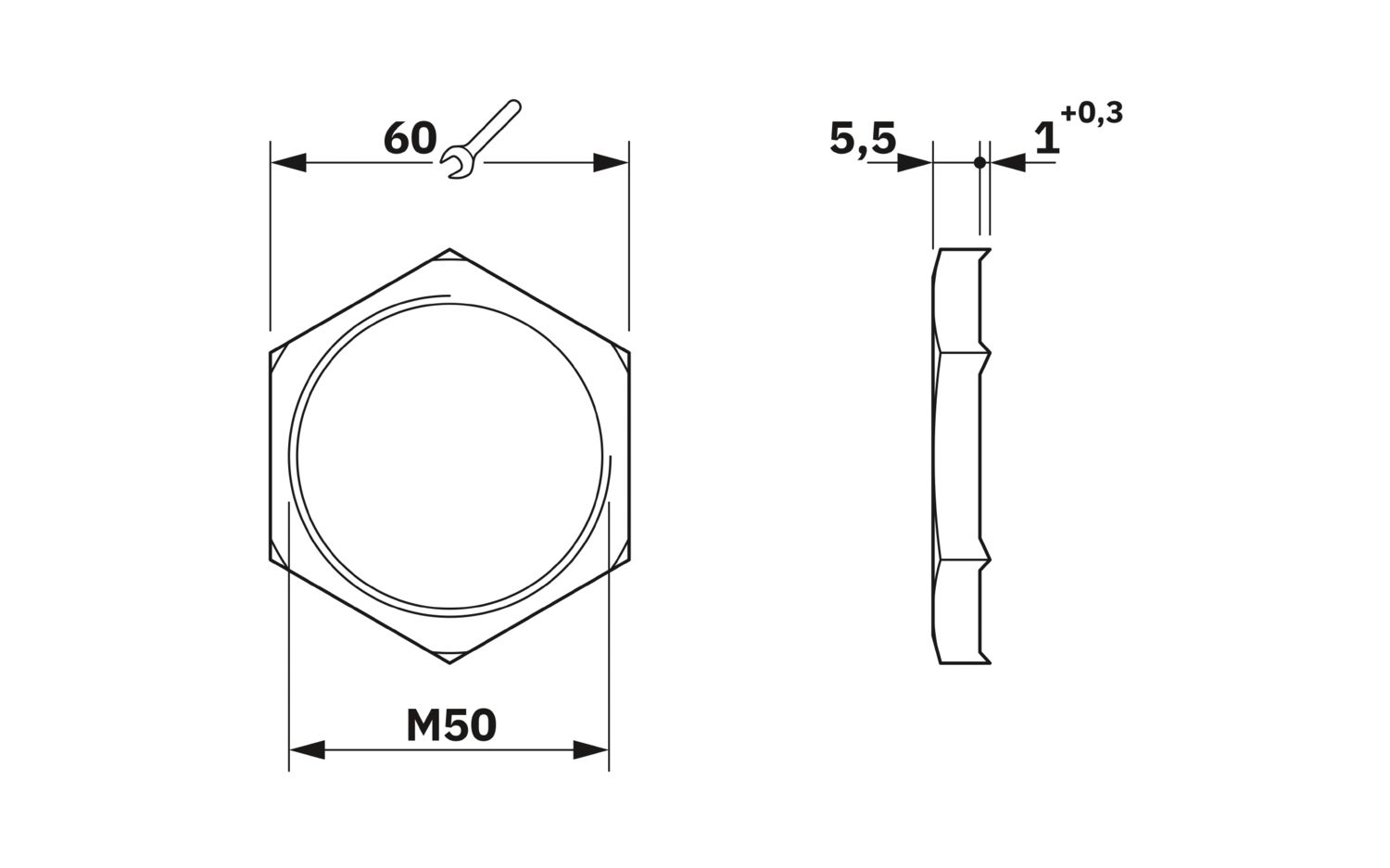

| Dimensional drawing |
|
| Length | 6.5 mm |
| Diameter | 50 mm |
| Connecting thread diameter | 50 mm |
| Wrench size, counter nut | 60 mm |
| Hexagon angular dimension | 65 mm |
| Thread type connection side | M50 x 1.5 |
| Thread pitch | 1.5 mm |
| Material | Brass, nickel-plated |
| Halogen-free | yes |
| Ambient conditions | |
| Ambient temperature (operation) | -70 °C ... 220 °C |
| Assembly note | for EMC cable glands, for removing a non-conductive surface coating |
