Counter nut - A-INL-PG16-N-S

Counter nut, material: Brass, nickel-plated, for threads Pg16, color: silver

Product Details

Product type Flat nut
Thread type Pg16

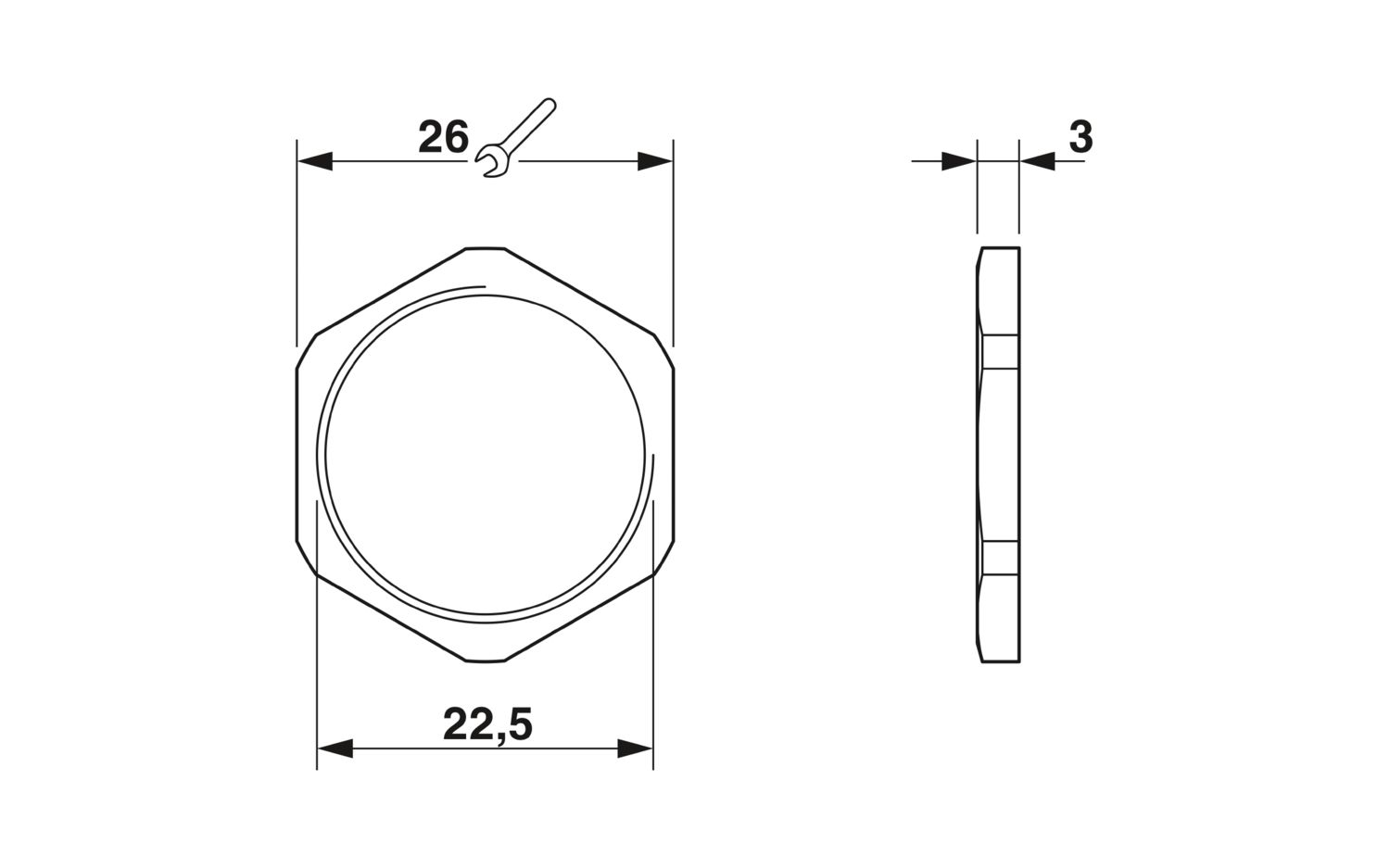

Dimensional drawing
Length 3 mm
Connecting thread diameter 22.5 mm
Wrench size, counter nut 26 mm
Hexagon angular dimension 29 mm
Thread type connection side Pg16

Color silver
Material Brass, nickel-plated

Ambient conditions
Halogen-free yes

Ambient conditions
Ambient temperature (operation) -70 °C ... 220 °C

Item number 1411260
Packing unit 100 pc
Minimum order quantity 1 pc
Sales Key BF7
Product Key BF7DZX
Catalog Page Page 689 (C-2-2019)
GTIN 4046356923927
Weight per Piece (including packing) 4,77 g
Weight per Piece (excluding packing) 4,653 g
Customs tariff number 74198090
Country of origin IN


ECLASS-9.0 27144424
ECLASS-10.0.1 27144424
ECLASS-11.0 27144424


ETIM 8.0 EC000940


UNSPSC 21.0 31161700

REACh SVHC Lead 7439-92-1
China RoHS Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”
