AI 16-18 BU-1000
-
Ferrule
2100035

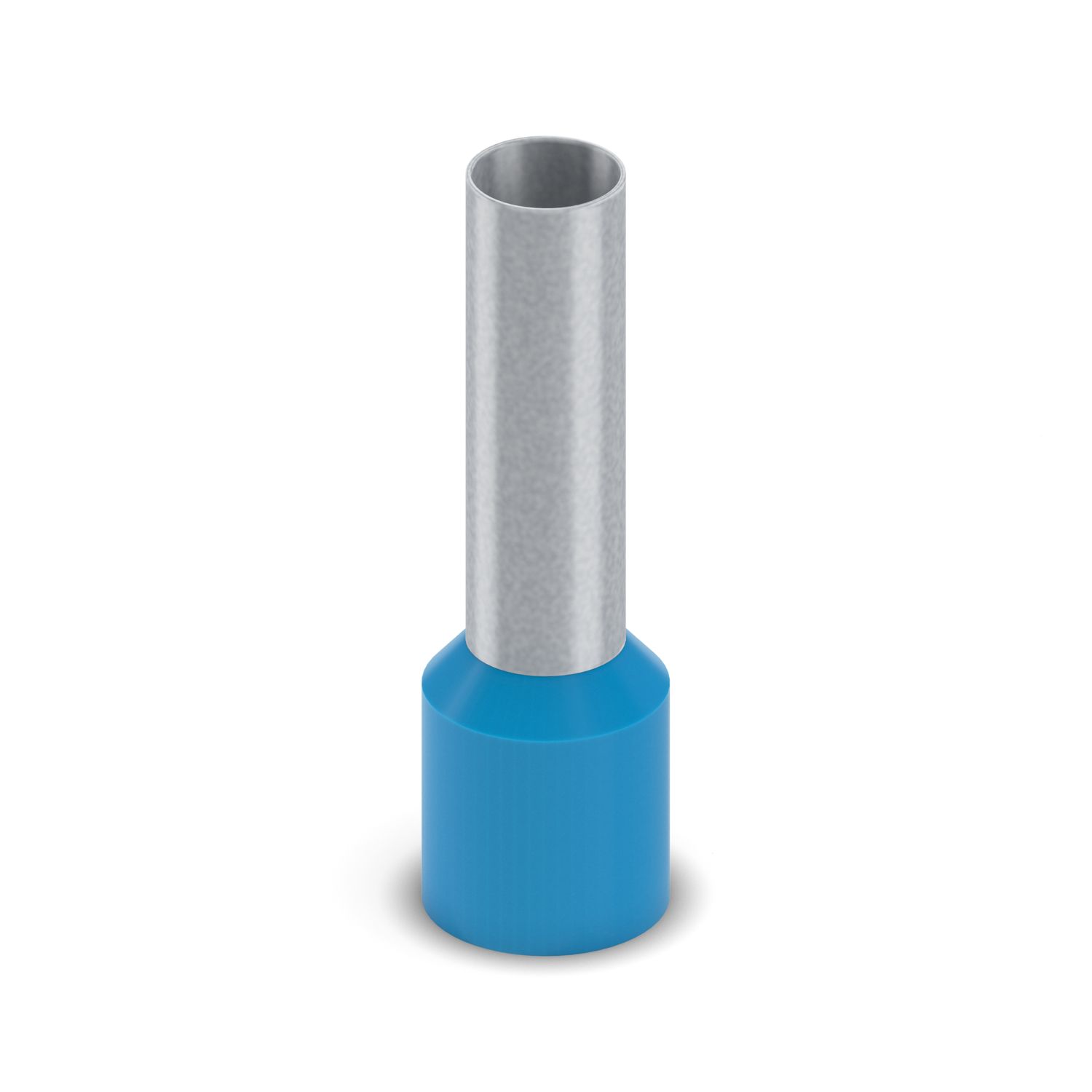

Ferrule, Length contact range: 18 mm, sleeve length: 28 mm, color: blue
Product details
| Product type | Cable end sleeve |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Product property | UL certified |
| Made from soft tin-plated electrolytic copper | |
| Correspond to the requirements of DIN 46228-1 and UL 486F in terms of size | |
| Plastic collar made of polypropylene | |
| Halogen-free | |
| Long/short-term temperature: +105°C/+120°C |
| Conductor connection | |
| Conductor cross-section flexible max. | 16 mm² |
| Conductor cross-section AWG max. | 6 |
| Stripping length | 22 mm |
| Dimensional drawing |
|
| Sleeve length | 28 mm |
| Length contact range | 18 mm |
| Maximum stripping length | 22 mm |
| Ferrule diameter | 5.8 mm |
| Sleeve wall thickness | 0.2 mm |
| Insulating collar thickness | 0.4 mm |
| Inner dimensions of the insulating collar | 8.8 mm |
| Color | blue (RAL 5015) |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
| Technical data | |
| Sleeve length | 28 mm |
| Design according to standard | Special color |
