HC-M-EMV-ST/3-9,5
-
Connector
1636088
HEAVYCON EMC connector, pin version, 4-pos., for connecting shielded conductors with 3 ... 9.5 mm external conductor diameter. For use in the HC-M-02-EMC-M plastic module
Product details
| General | The potential of the EMC connector housing is isolated from the potential of the heavy connector. |
| General | for CK 1,6...ED... crimp contacts (note in scope of delivery) |
| General | Clamps for the clamping range of 3 mm - 6 mm and 6 mm - 9.5 mm |
| Product type | EMC insert, modular |
| Series | HC-M-EMV |
| Application | Data/signal |
| Number of positions | 4 |
| Connection profile | 4 |
| Contact numbering | 1 - 4 |
| No. of cable outlets | 1 |
| No. of power contacts | 0 |
| No. of control contacts | 4 |
| Contact material type | turned |
| rolled | |
| Shielded | yes |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 48 V |
| Rated surge voltage | 0.8 kV |
| Rated current | 10 A |
| Transmission characteristics (category) | CAT5e |
| Connection technology | |
| Connection technology | Crimp connection |
| Conductor connection | |
| Conductor cross section | 0.14 mm² ... 2.5 mm² |
| Connection cross section AWG | 26 ... 14 |

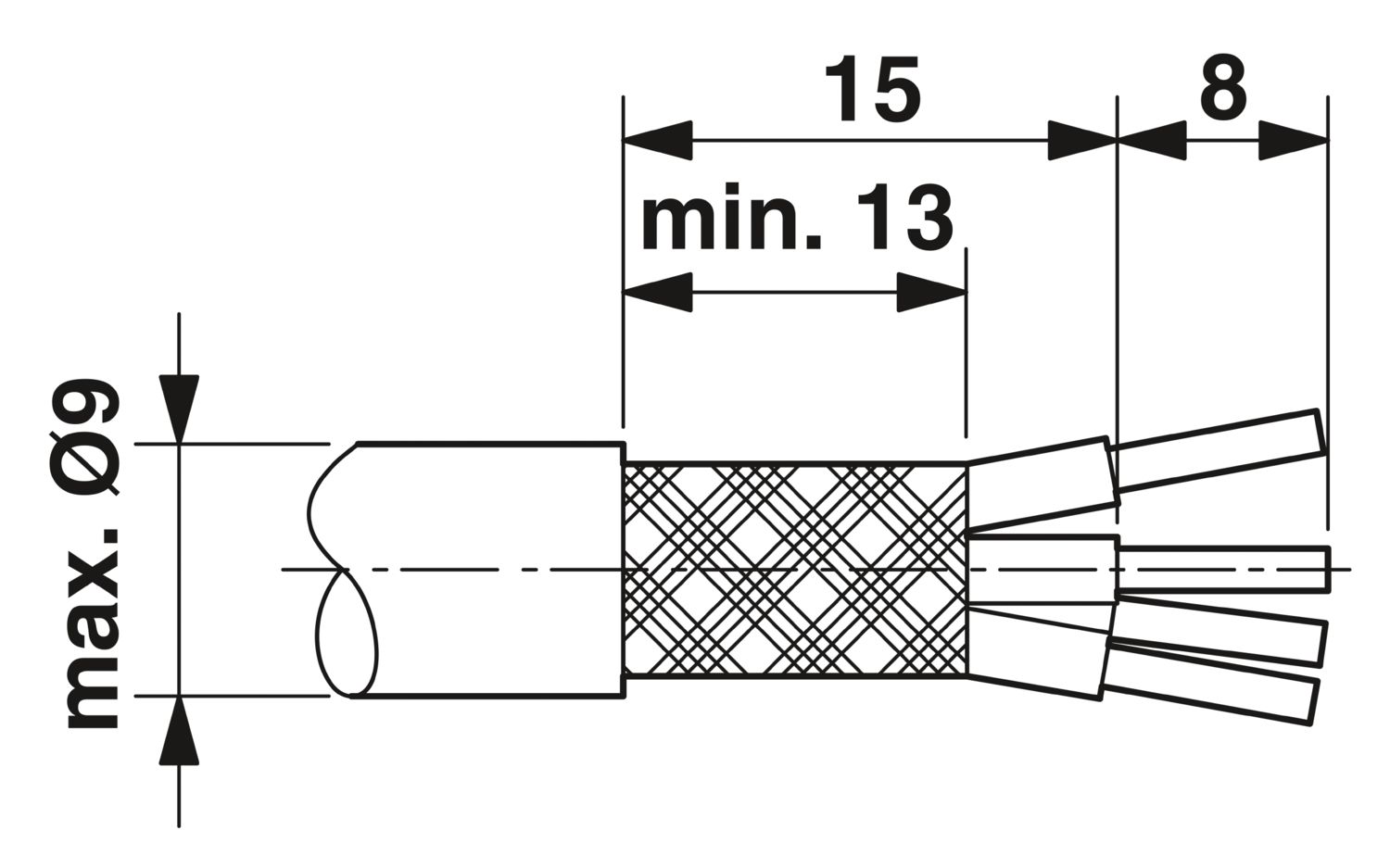

| Stripping length of the individual wire | 8 mm (6 mm with 2.5 mm²) |

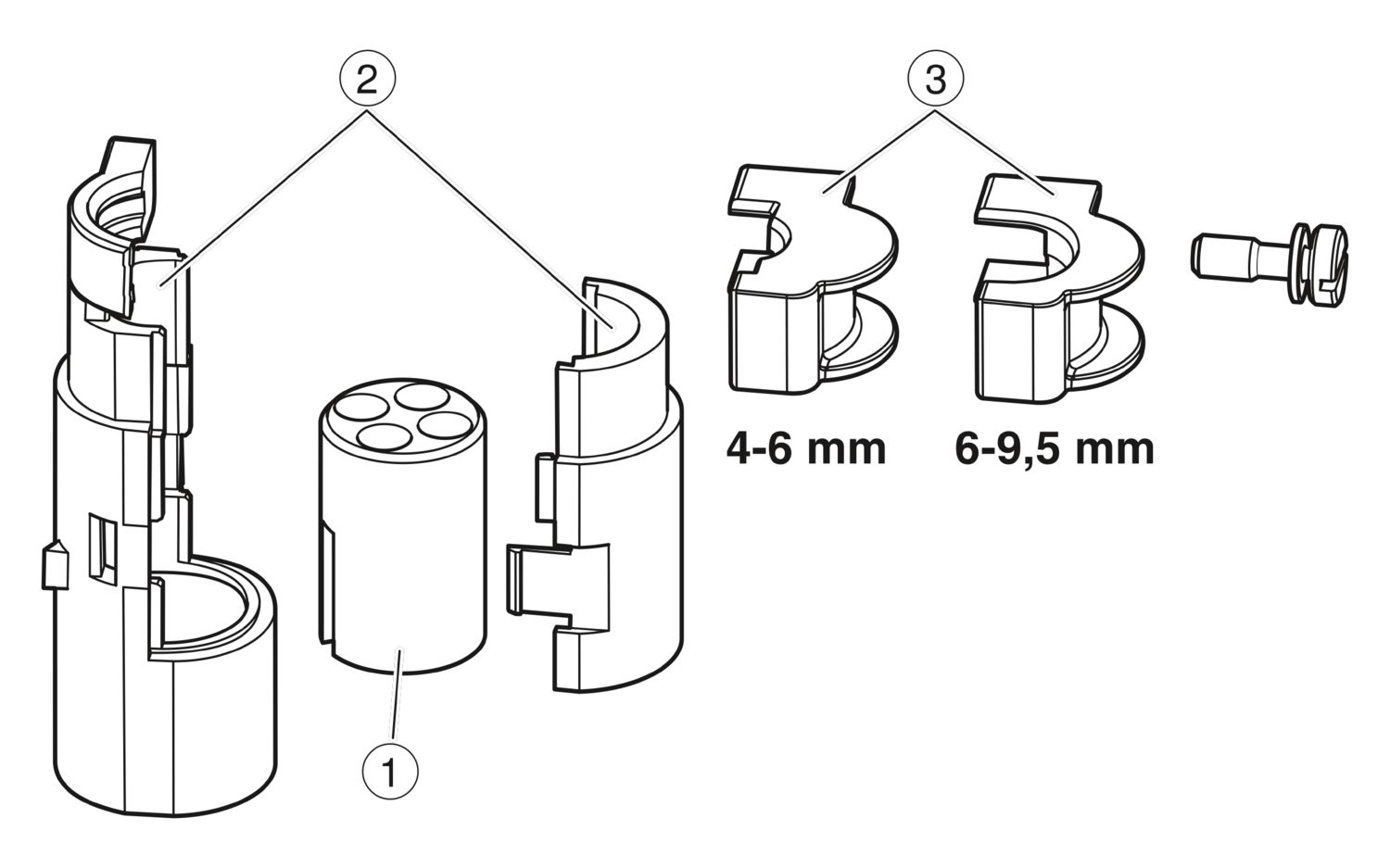

| Dimensional drawing |
|
| Width | 18 mm |
| Height | 15.5 mm |
| Length | 46 mm |
| Mechanical characteristics | |
| Contact diameter | 1.6 mm |
| Material | Zinc alloy |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Ag (alternatively Au) |
| Contact carrier material | PC |
| External cable diameter | 3 mm ... 9.5 mm |
| Wire diameter including insulation | 2.4 mm |
| Stripping length of the individual wire | 8 mm (6 mm with 2.5 mm²) |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Assembly note | Housing height ≥ 72 mm. Plug-in connections may only be operated only when there is no load/voltage. |
| For use in HC-M-EMV-MOD-ST plastic module, usable CK1,6-ED-... crimp contacts |
