GPE 13X 9 WH
-
Engraving material
0806932
Engraving material, Sheet, white, unlabeled, can be labeled with: PLOTMARK, ENGRAVING UNIT, CMS-P1-PLOTTER, P1 ENGRAVING UNIT, mounting type: adhesive, Number of individual labels: 120, text field height: 9 mm, text field width: 13 mm
Product details
| Product type | Device marking |
| Marking | |
| Number of individual labels | 120 |
| Number of individual labels per row | 6 |
| Mounting type | adhesive |
| Adhesive strength | 50 µm |
| Adhesive | Acrylic |
| Color | white (RAL 9010) |
| Material | TRANSPLY-ABS |
| Components | free from silicone and halogen |
| UV resistance | |
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Wipe resistance of inscriptions | |
| Specification | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Isopropyl [CAS No. 67-63-0] |
Test passed |
| n-Hexane [CAS No. 110-54-3] |
Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] |
Test passed |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 85 °C |
| Recommended storage conditions | 20°C/50% relative humidity. Storage in the original packaging is recommended. |
| Recommended ambient temperature (storage/transport) | 20 °C |
| Recommended humidity (storage/transport) | 50 % |
| Shelf life | 12 months |

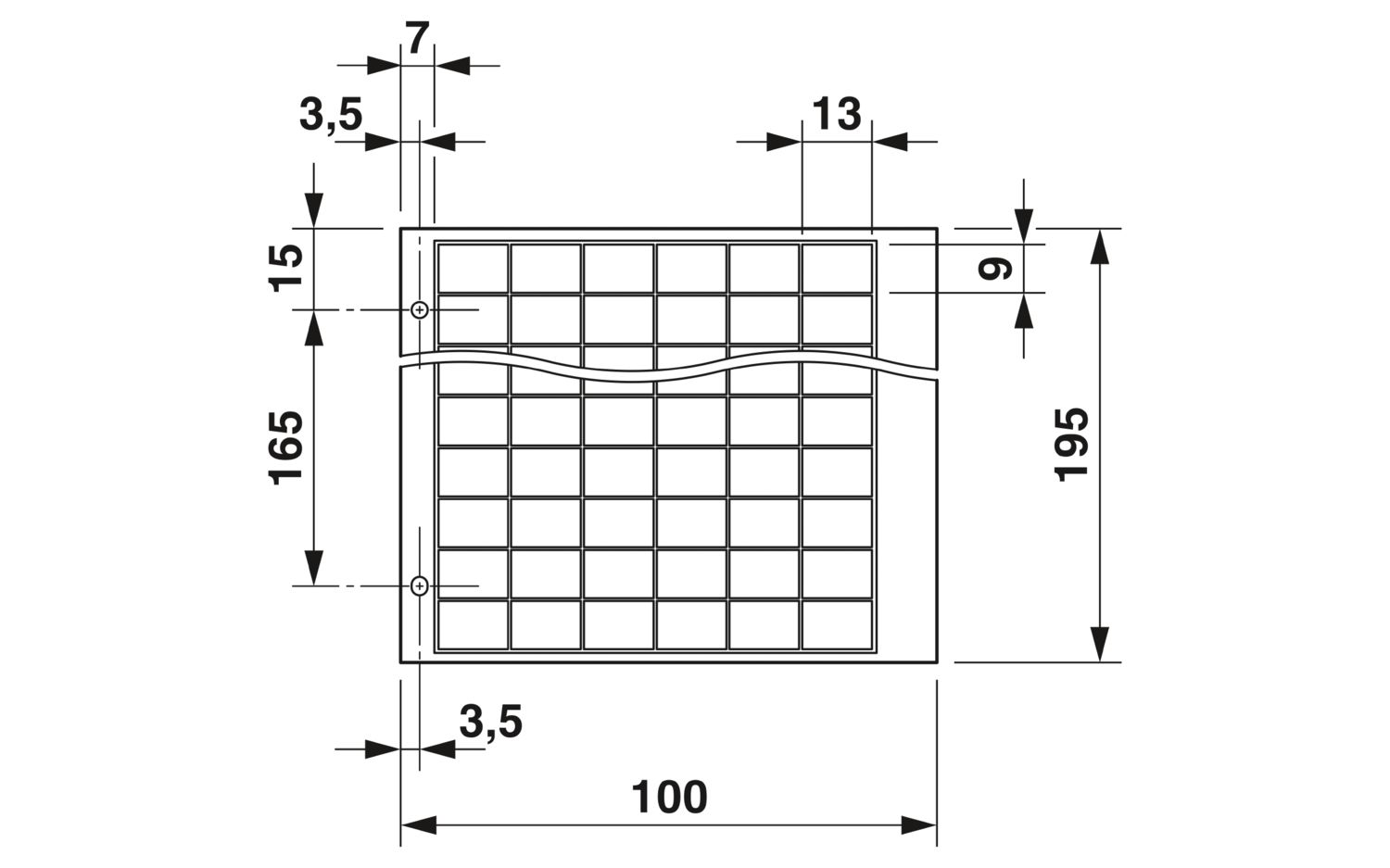

| Dimensional drawing |
|
| Width | 13 mm |
| Height | 9 mm |
| Length | 9 mm |
| Material strength | 0.80 mm |
| Text field | |
| Text field width | 13 mm |
| Text field height | 9 mm |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| General | Can be labeled with CMS |
Your advantages
Can be labeled easily using the CMS‑P1‑PLOTTER
Can be engraved using the P1 ENGRAVING UNIT
Labeling service: Phoenix Contact can custom-label all GPE ... markers according to your requirements
The adhesive foil used ensures good adhesive properties, even on uneven surfaces
Two-layer material

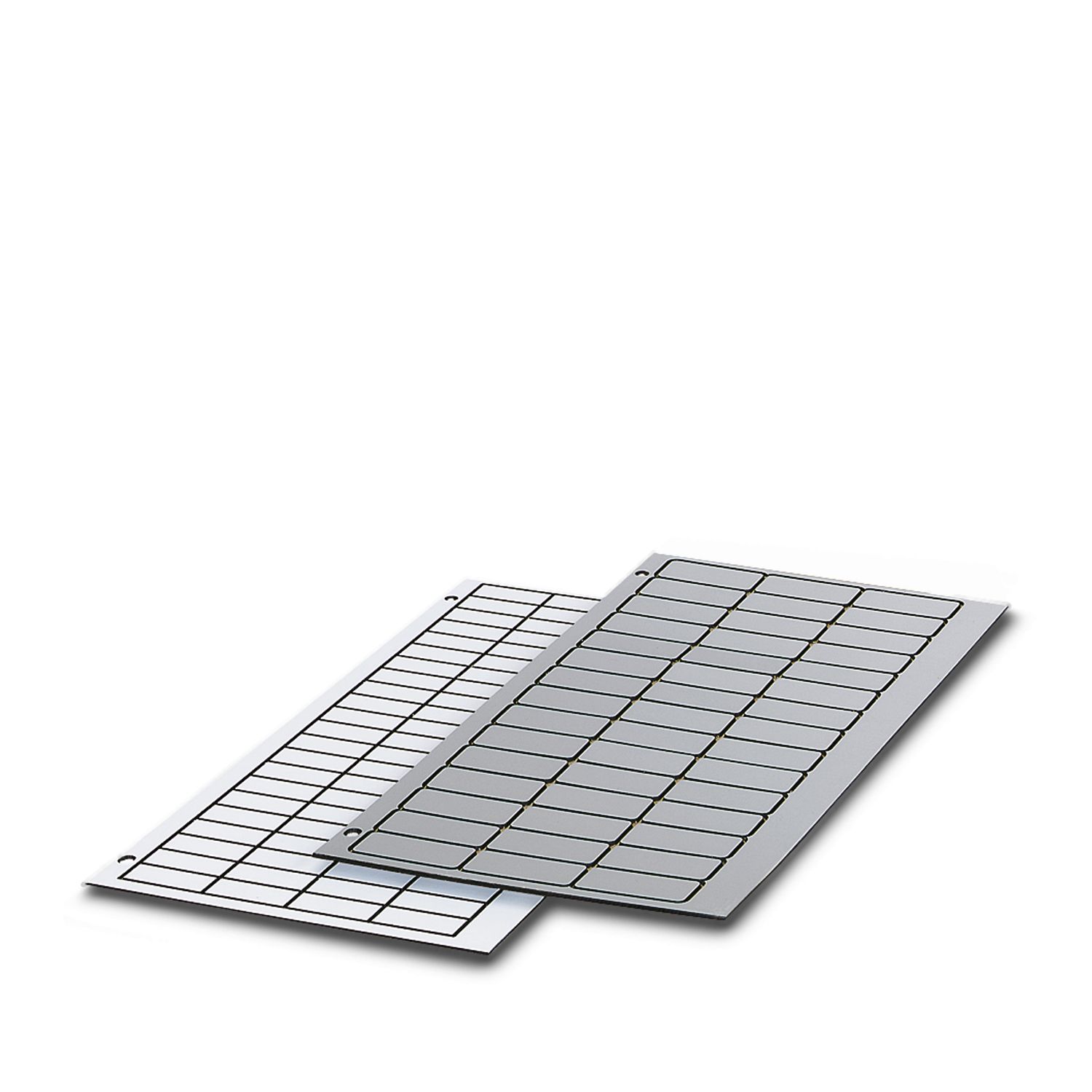

The label sheet consists of prefabricated, individual self-adhesive labels
