Insert label - EMT (23X109)R
0803457

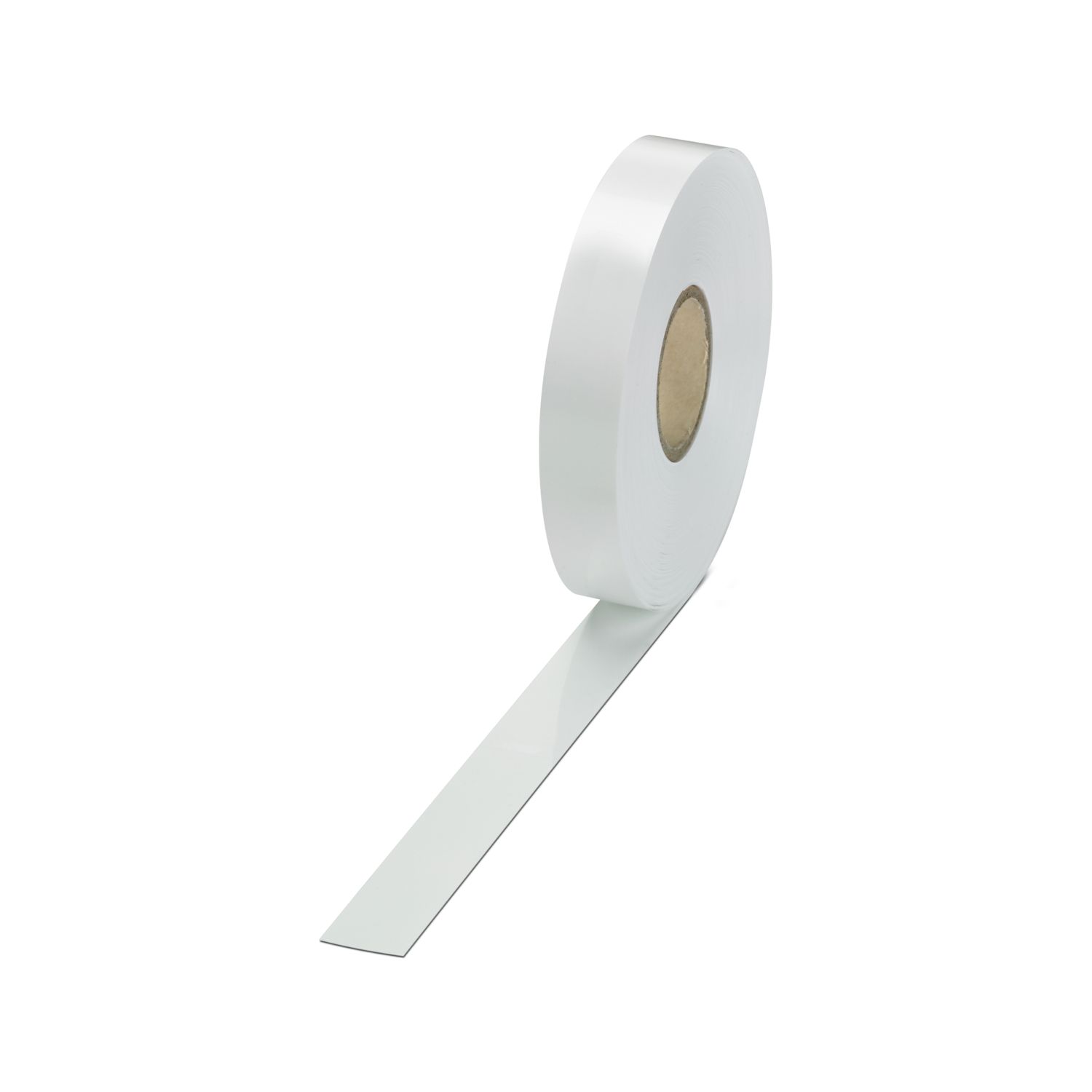

Insert label, For marking Siemens S7-1500 controllers, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting type: insert, lettering field size: 23 x 109 mm, Number of individual labels: 500


Product Details




Product type Device marking
Controller type For marking Siemens S7-1500 controllers
Marking
Number of individual labels 500
Marking technology
Device 5146477 THERMOMARK ROLL
5145274 THERMOMARK X1.1
5146231 THERMOMARK X1.2
Ink ribbon 5148007 THERMOMARK-RIBBON 110-WMTB HF
Printability Thermal transfer

Ambient temperature (operation) -40 °C ... 120 °C
Recommended storage conditions 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.

Mounting type insert

Color white
Foil strength 175 µm
Material Polyester
Components free from silicone and halogen
Silicone-free Yes
Halogen-free Yes

Test for substances that would hinder coating with paint or varnish
VDMA 24364-A1-L:2018-05
Result Test passed
Scratch test for the determining scratch resistance
Requirements ≥ 5 N
Result Test passed
Tesafilm test
Result Test passed
UV resistance
Specification Following ISO 4892-2:2013-03
Result Test passed
Test duration 96 h
Temperature resistance
Specification Following ANSI/UL 969-2018:03
Test duration 240 h
Rating 200 °C (230 °C) Test passed
Wipe resistance of inscriptions
Specification DIN EN 61010-1 (VDE 0411-01):2020-03
DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Test duration 168 h
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification DIN 50018:2013-05
Result Test passed
Climate level AHT 1,0 S
Cycles 2
Salt spray test
Specification DIN EN 60068-2-11:2000-02
Result Test passed
Test duration 96 h
Ambient conditions
Ambient temperature (operation) -40 °C ... 120 °C
Recommended storage conditions 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.

Width 23 mm
Length 109 mm

Wipe resistance DIN EN 61010-1 (VDE 0411-1)

Item number 0803457
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BG2
Product Key BG2411
Catalog Page Page 343 (C-3-2019)
GTIN 4055626072289
Weight per Piece (including packing) 339,7 g
Weight per Piece (excluding packing) 99,99 g
Customs tariff number 39269097
Country of origin DE


ECLASS

ECLASS-9.0 27400629
ECLASS-10.0.1 27400629
ECLASS-11.0 27281106

ETIM

ETIM 8.0 EC001530

UNSPSC

UNSPSC 21.0


Your advantages

EMT (23x109)R, white insert label, for marking Siemens S7-1500 controllers
Thanks to their special shape, the EMT (23x109)R insert labels remain securely inside the collar of the Siemens controller once inserted
Quick and inexpensive marking with THERMOMARK ... roll printers from Phoenix Contact
When combined with the right ink ribbon, the marking is highly resistant to solvents and mechanical influences. The marking is even suitable for use under harsh industrial conditions
Marking service: Phoenix Contact can custom-mark all EMT ... markers according to your requirements
