Device marking - EMLP (EX15)R RD 0803280

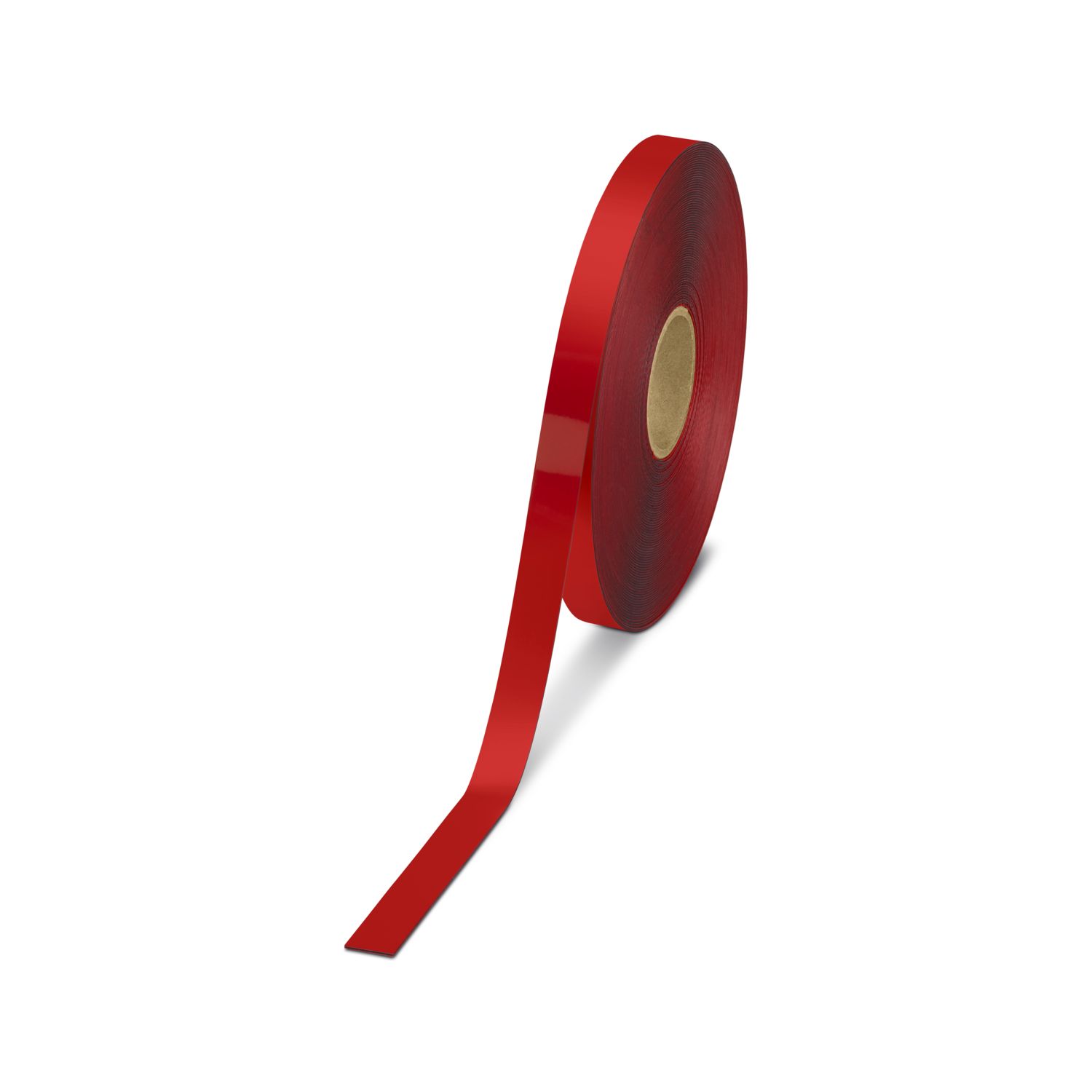

Plastic label, Roll, red, unlabeled, can be labeled with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting type: adhesive, lettering field size: 20000 x 15 mm, Number of individual labels: 1


Product Details




Mounting type adhesive

Salt spray test
Test duration 96 h
Specification DIN EN 60068-2-11:2000-02
Result Test passed
Weathering-resistance
Test duration 96 h
Specification Following ISO 4892-2:2013-03
Result Test passed
Wipe resistance of inscriptions
Specification DIN EN 60068-2-11:2000-02
Result Test passed
Test for substances that would hinder coating with paint or varnish
Specification VW PV 3.10.7:2005-02
Result Test passed
Ambient conditions
Recommended storage conditions 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.
Ambient temperature (operation) -40 °C ... 120 °C

Length 20000 mm
Width 15 mm

Recommended storage conditions 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended.
Ambient temperature (operation) -40 °C ... 120 °C

Wipe resistance DIN EN 61010-1 (VDE 0411-1)

Components free from silicone and halogen
Adhesive strength 20 µm
Foil strength 50 µm
RoHS compliant Yes
Color red
Material Polyester
Adhesive Acrylic

Marking technology
Printability Thermal transfer
Device 5146477 THERMOMARK ROLL
5146723 THERMOMARK ROLL X1
5146231 THERMOMARK X1.2
0804501 THERMOMARK ROLLMASTER 300
0804663 THERMOMARK ROLLMASTER 600
Ink ribbon 5145384 THERMOMARK-RIBBON 110
0804661 TM-RIBBON 110 WH 100
Marking
Number of individual labels per row 1
Number of individual labels 1


Order Key 0803280
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BG2
Catalog Page Page 330 (C-3-2019)
GTIN 4055626017013
Weight per Piece (including packing) 253,0 GRM
Weight per Piece (excluding packing) 248,0 GRM
Customs tariff number 39199080
Country of origin DE



Compatible Products

Your advantages

The thermal transfer printer cutting units make it possible to trim precisely to the required length. This enables faster and cleaner equipment marking.
The EMLP (Ex...)R ... self-adhesive continuous markers are particularly well suited to marking miniature circuit breakers and housing covers in service panels
The markers meet the same standards as the engraved labels. They provide high-quality visuals.
Quick and inexpensive marking with THERMOMARK ... roll printers from PHOENIX CONTACT
When combined with the right ink ribbon, the marking is highly resistant to solvents and mechanical influences. The marking is even suitable for use under harsh industrial conditions.
