Device marking - EML-RM (25XE)R 0803713

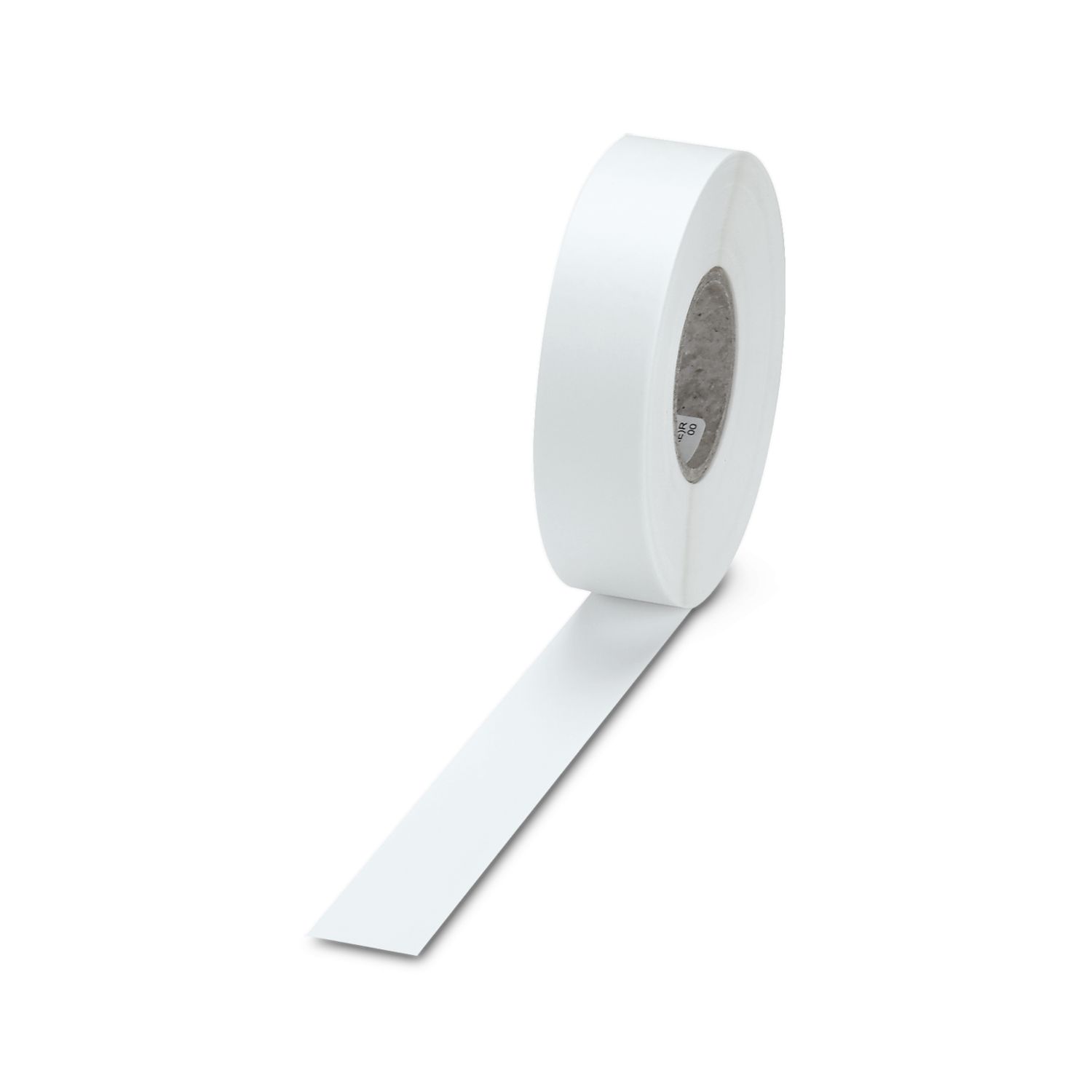

Label, can be removed, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting type: adhesive, lettering field size: continuous x 25 mm

Show Product Details (PDF)

Product Details

Mounting type adhesive
Salt spray test
Test duration 96 h
Specification DIN EN ISO 9227:2012-09
Result Test passed
Weathering-resistance
Test duration 96 h
Specification Following ISO 4892-2:2013-03
Result Test passed
Wipe resistance of inscriptions
Specification DIN EN 61010-1 (VDE 0411-1):2011-07
Result Test passed
Test for substances that would hinder coating with paint or varnish
Specification VW PV 3.10.7:2005-02
Result Test passed
Ambient conditions
Recommended storage conditions 23 °C / 50 % relative humidity. Storage in poly bags is recommended prior to processing.
Ambient temperature (operation) -40 °C ... 120 °C
Length 40000 mm
Width 25 mm
Recommended storage conditions 23 °C / 50 % relative humidity. Storage in poly bags is recommended prior to processing.
Ambient temperature (operation) -40 °C ... 120 °C
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components free from silicone and halogen
Adhesive strength 20 µm
Foil strength 50 µm
RoHS compliant Yes
Color white
Material Polyester
Adhesive Acrylic
Marking technology
Printability Thermal transfer
Device 5146477 THERMOMARK ROLL
5146723 THERMOMARK ROLL X1
5146231 THERMOMARK X1.2
Ink ribbon 5145384 THERMOMARK-RIBBON 110
Order Key 0803713
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BG2
Catalog Page Page 337 (C-3-2019)
GTIN 4055626134956
Weight per Piece (including packing) 209,8 GRM
Weight per Piece (excluding packing) 209,8 GRM
Customs tariff number 39199080
Country of origin DE

UL Recognized

Compatible Products

  1. Ink ribbon THERMOMARK-RIBBON 110 - 5145384

Your advantages

The EML-RM label is ideal for temporary marking.
This label features solid and reliable adhesion, but can also be easily removed again without any leftover residue. Once removed, it cannot be re-used
When combined with the right ink ribbon, the marking is highly resistant to solvents and mechanical influences. The marking is even suitable for use under harsh industrial conditions.
The EML-RM ... materials are UL-listed
Labeling service: Phoenix Contact can custom-label all EML-RM ... markers in accordance with your requirements
