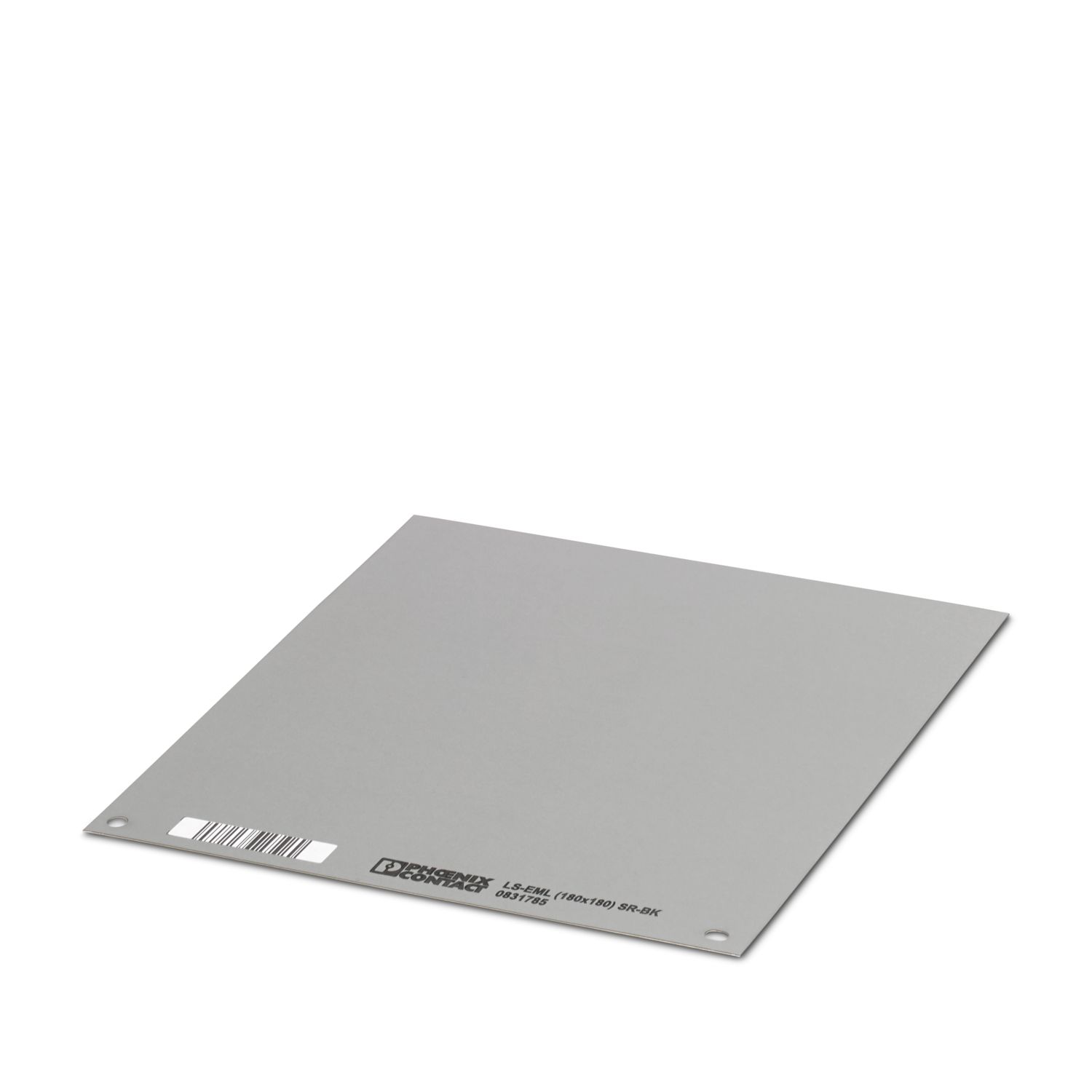

LS-EML (180X180) SR-BK - Device marker - 0831785

Product properties

Mounting

Mounting type	adhesive

Material specifications

Color	silver/black
Material	Polyacrylate
Components	free from silicone and halogen

Environmental and real-life conditions

Test for substances that would hinder coating with paint or varnish
Result	Test passed
Scratch test for the determining scratch resistance
Specification	DIN EN ISO 1518-1:2019-10 (following)
Requirements	≥ 5 N
Result	Test passed
Tesafilm test
Specification	DIN EN ISO 2409:2013 (following)
Result	Test passed
UV resistance
Specification	ISO 4892-2:2013-03 (following)
Result	Test passed
Test duration	96 h
Specification	IEC 60068-2-2:2007-07
Result	Test passed
Procedure	Test Bb
Duration	168 h
Temperature for testing	200 °C
Temperature resistance
Specification	ANSI/UL 969-2018:03 (following)
Test duration	240 h
Rating 150 °C (180 °C)	Test passed
Wipe resistance of inscriptions
Specification	DIN EN 61010-1 (VDE 0411-01):2020-03
Specification		DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl [CAS No. 67-63-0]	Test passed
n-Hexane [CAS No. 110-54-3]	Test passed
Water + Petroleum ether [CAS No. 64742-82-1]	Test passed
Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2]	Test passed
Ethanol (99 %) [CAS No. 64-17-5]	Test passed
Specification	ISO 175:2010 (following)
Test duration	168 h
Diesel [CAS No. 68476-34-6]	Test passed
IRM 901	Test passed
IRM 902	Test passed
Salt spray test
Specification	DIN EN 60068-2-11:2000-02
Result	Test passed
Test duration	96 h
Ambient conditions
Ambient temperature (operation)	-40 °C ... 200 °C
Recommended ambient temperature (storage/transport)	15 °C ... 25 °C
Recommended humidity (storage/transport)	40 % ... 60 % (Storage in a dry and dark place in the original packaging is recommended)
Shelf life	2 years

Dimensions

Standards and regulations

Item number	0831785
Packing unit	10 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	BG2
Product key	BG241C
GTIN	4046356927161
Weight per piece (including packing)	11,83 g
Weight per piece (excluding packing)	9,3 g
Country of origin	DE

ECLASS-13.0	27281103
ECLASS-15.0	27281103

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
