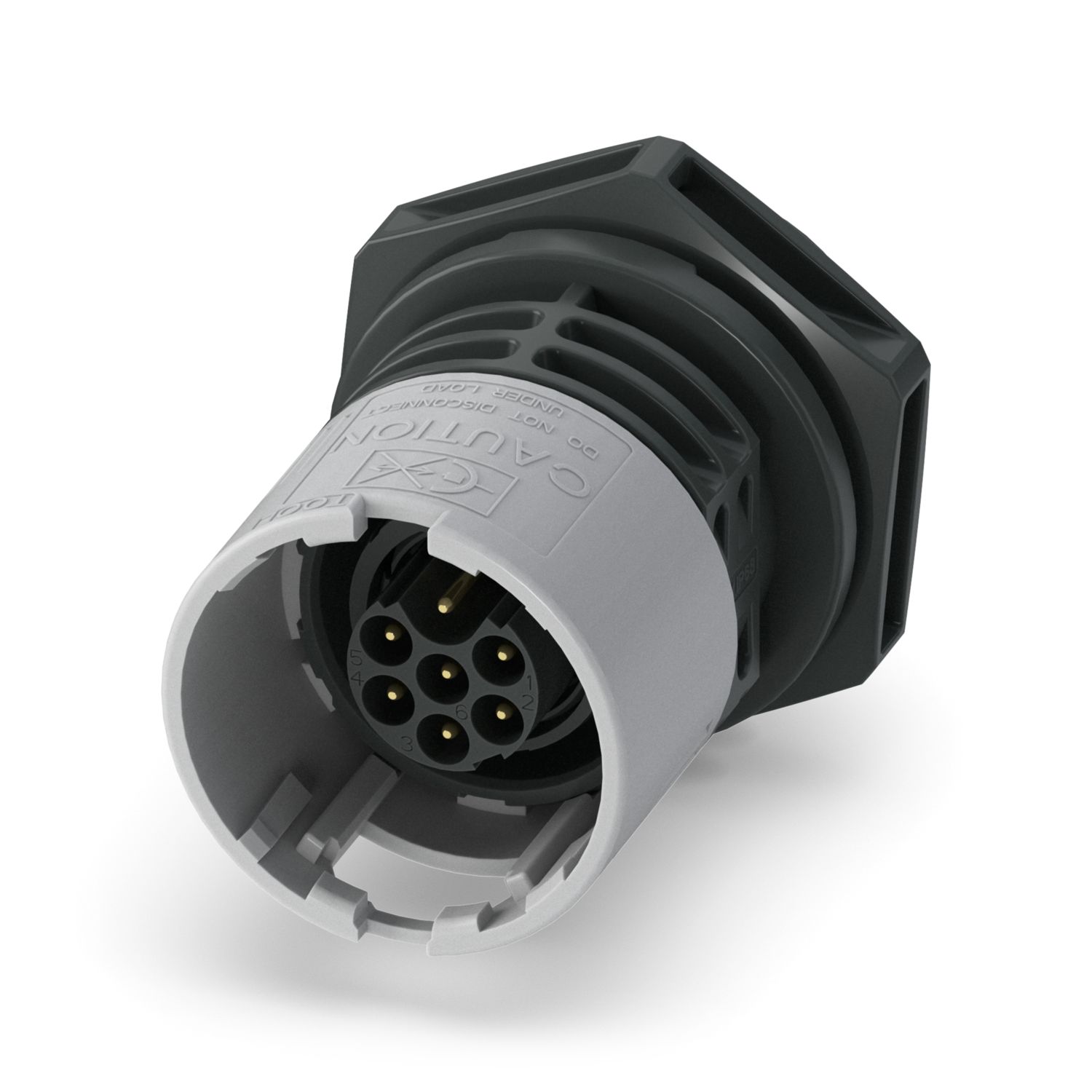

Device connector front mounting, Range of articles: PRC 20, design: Straight, color: black, number of positions: 7, min. conductor cross section: 0.75 mm2, max. conductor cross section: 1 mm2, rated voltage: Dreiphasig 630 V AC, rated current: 8.5 A, Connection method: Crimp connection, Contact connection type: Pin, min. cable diameter: 6 mm, max. cable diameter: 14 mm, Setting option for release: 1. with a tool or 2. by hand
| Order information: | Setting option for release: 1. with a tool or 2. by hand |
| Note on application | For assembly notes, please refer to the packing slip |
| Product type | Panel feed-through |
| Product family | PRC 20 |
| Type | Straight |
| Number of positions | 7 |

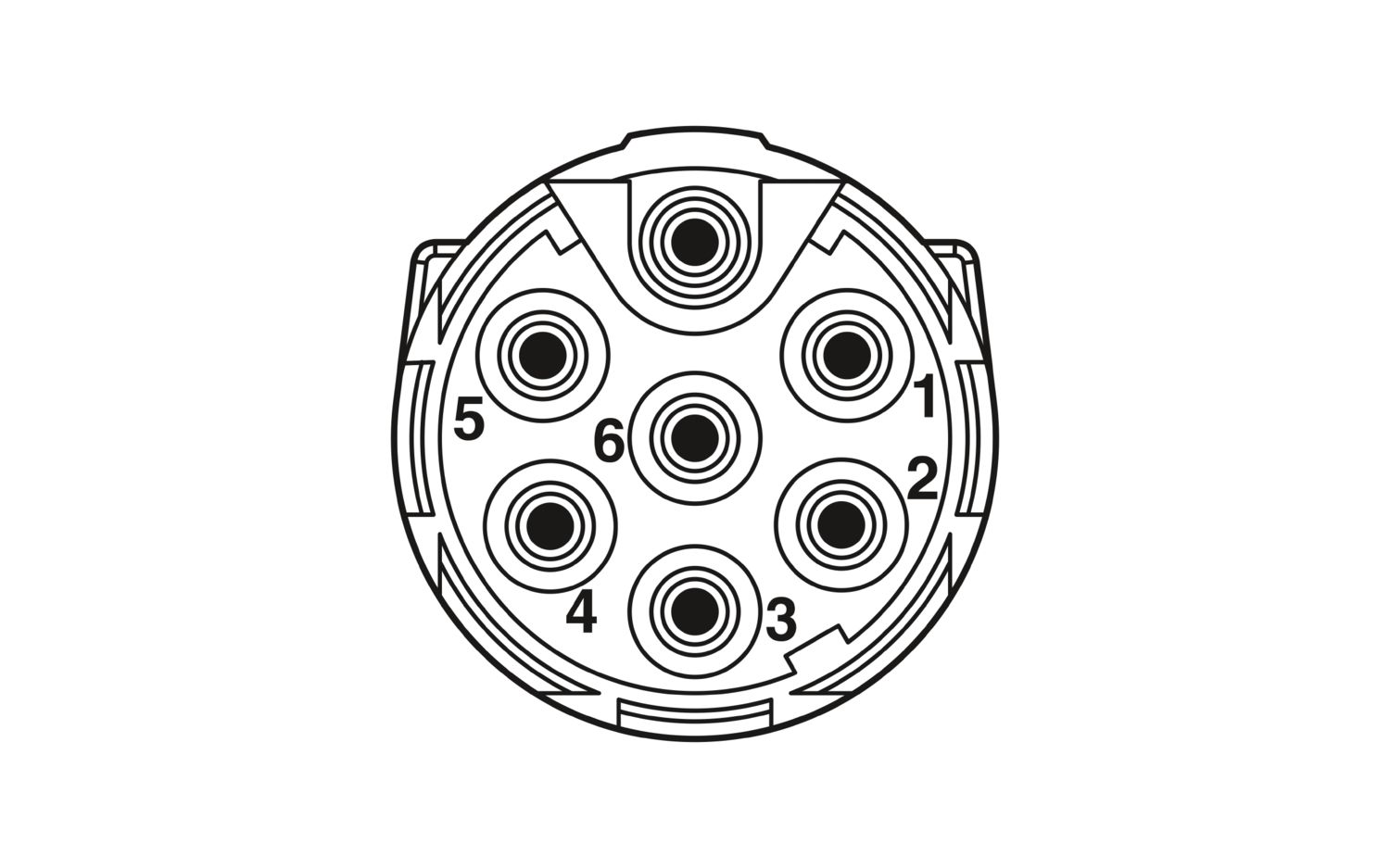

| Connection profile | 6+PE |
| Coding | M17 6+PE |
| Insulation characteristics | |
| Protection class | II (double or reinforced insulation) |
| Dimensional drawing |
|
| Width | 34 mm |
| Height | 38.4 mm |
| Length | 49.7 mm |
| Nominal voltage ATD | Dreiphasig 630 V AC (III/2.00) in accordance with IEC 61984 |
| 500 V DC (III/2.00) in accordance with IEC 61984 | |
| Rated current | 8.5 A (with 1 mm² conductor cross-section in accordance with IEC 61984) |
| 8 A (with 0.75 mm² conductor cross-section in accordance with IEC 61984) |
| Mechanical data | |
| Insertion/withdrawal cycles | 100 |
| Color (Housing) | black (RAL 9005) |
| Color (Locking) | gray (RAL 7042) |
| External cable diameter | 6 mm ... 14 mm |
| Single wire, cross section | 0.75 mm² 1 mm² |
| Halogen-free | yes (in accordance with IEC 61249-2-21:2003- 11 Cl.3.1) |
| Mounting type | Front mounting |
| Thread type | M25 x 1,5 (DIN EN 60423) |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP66 (2 m / 2 h) | |
| IP69 | |
| Category of shock impact | IK08 (-25°C) |

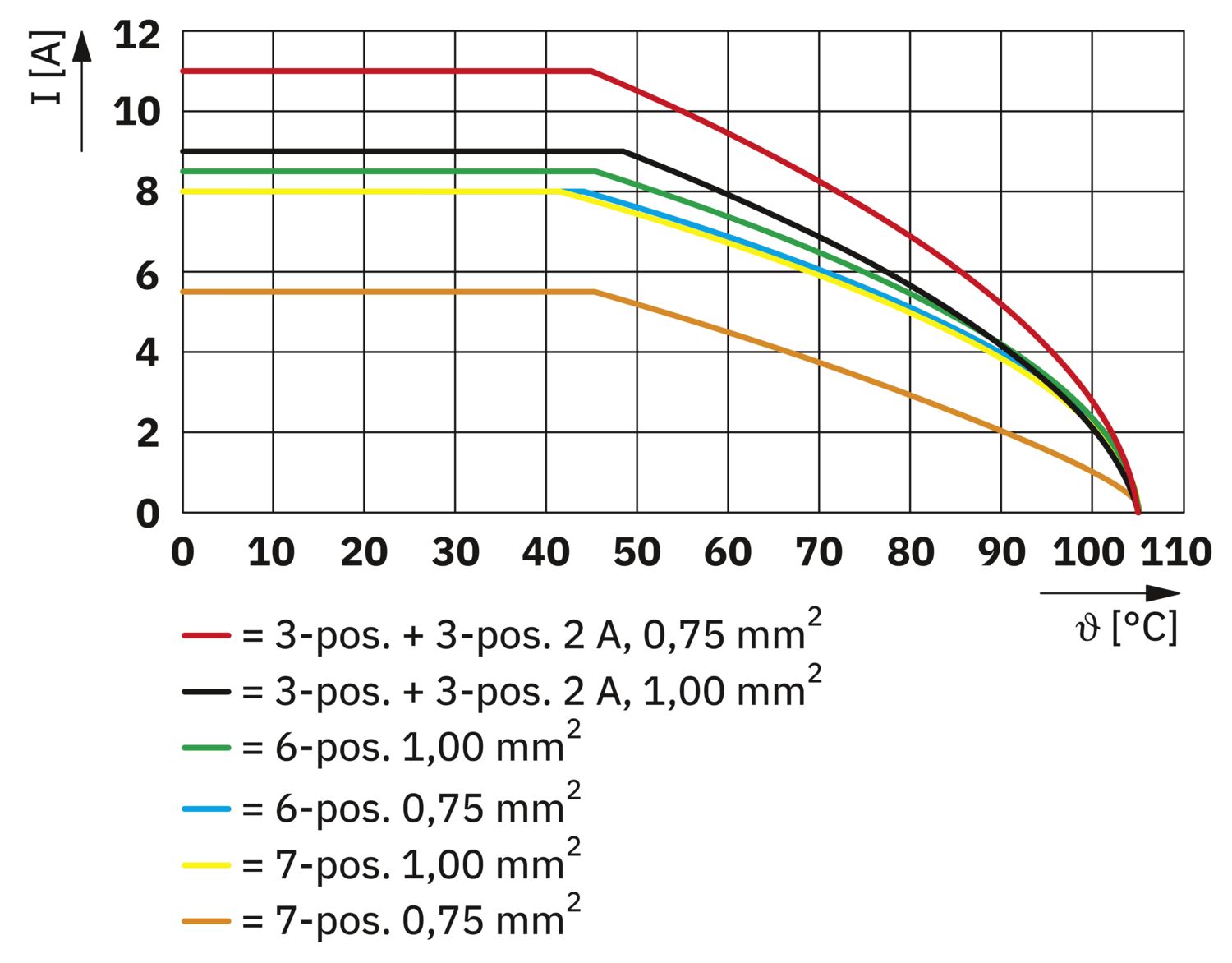

| Ambient temperature (operation) | -40 °C ... 85 °C (observe derating) |
| Ambient temperature (storage/transport) | -10 °C ... 50 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Standards/specifications | IEC 61984:2008 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 600 V | 7 A | 18 - 18 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 600 V | 7 A | 18 - 18 |
