CUC-IND-C1ZNI-S/R4IE10G8 - RJ45 connector

1149846

RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, CAT6_A, material: Metal, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, color: yellow, Ethernet

Product details

Product type	Data connector (cable side)
Type	RJ45
Sensor type	Ethernet
Number of positions	8
Connection profile	RJ45
No. of cable outlets	1
Type	RJ45
Shielded	yes
Cable outlet	straight
Positions/contacts	8P8C
Insulation characteristics
Overvoltage category	I
Degree of pollution	2

Rated voltage (III/3)	72 V (DC)
Rated current	1.75 A
Contact resistance	< 20 mΩ (Contact)
	< 100 mΩ (shield)
Frequency range	500 Hz
Insulation resistance	> 500 MΩ
Contact resistance per contact pair	< 20 Ω
Contact resistance	> 10 mΩ (Wire – IDC)
	0.005 Ω (Litz wires – IDC)
Transmission characteristics (category)	CAT6_A
Transmission speed	10 Gbps
Power transmission	PoE++
Wave impedance	100 Ω

Connection technology
Connection method	Insulation displacement connection
Connection cross section AWG	26 ... 24 (solid)
	26 ... 24 (flexible)
Conductor cross section	0.14 mm² ... 0.22 mm² (solid)
	0.14 mm² ... 0.22 mm² (flexible)
Connection in acc. with standard	IEC 60603-7-51
Cable outlet, angle	180

Width	13.65 mm
Height	14.4 mm
Length	53 mm

Color	yellow
Material	Plastic
Flammability rating according to UL 94	V0
Housing material	Metal
Housing surface material	Ni
Cable seal material	NBR
Contact material	CuSn
Contact surface material	Au/Ni
Contact carrier material	PC
Locking latch material	Stainless steel
Material for screw connection	PA

External cable diameter	5 mm ... 9 mm
Wire diameter including insulation	≤ 1.6 mm
Cable cross section	0.14 mm²
Test voltage Core/Core	1000 V
Test voltage Core/Shield	1500.00 V
Wave impedance	100 Ω

Mechanical data
Insertion/withdrawal cycles	≥ 750

Test specification
Type of test	Vibration test
Specification	IEC 60068-2-6
Frequency	2-2000 Hz
Sweep speed	1 octave/min
Amplitude	1.00 mm
Acceleration	200.00 m/s²
Test duration	20.00 s
Test specification
Type of test	Shock testing
Specification	IEC 60068-2-27
Acceleration	491.00 m/s²
Number of shocks per direction	5.00
Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 85 °C

Mounting type	For field assembly

Commercial data

Item number	1149846
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	ABN
Product key	ABNAAB
GTIN	4063151146320
Weight per piece (including packing)	18,1 g
Weight per piece (excluding packing)	13,817 g
Customs tariff number	85366990
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	56.5 V	1.75 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Easy and time-saving assembly with IDC fast connection technology

Can be used internationally due to EAC, UL 1863, and CAN/CSA C22.2

Ideal companion for servicing or repairs in the field: no special tools required for mounting

360° shielding ensures reliable transmission, even in industrial applications

Ideal for demanding applications due to the high shock and vibration resistance as well as the extended temperature range

Innovative one-piece design prevents mounting errors and the loss of small parts

Future-proof due to CAT6_A with 10 Gbps

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

CUC-IND-C1ZNI-S/R4IE10G8 - RJ45 connector

1149846

Product details

ECLASS

ETIM

UNSPSC

cULus Recognized

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

CUC-IND-C1ZNI-S/R4IE10G8 - RJ45 connector 1149846

Product details

ECLASS

ETIM

UNSPSC

Compatible products

MICROFOX-SP-1 - Diagonal cutter 1212487

VS-CABLE-STRIP-VARIO - Stripping tool 1657407

VS-OE-OE-94F/... - Data cable 1417359

CUC-IND-C1ZNI-S/R4IP10G8 - RJ45 connector 1149847

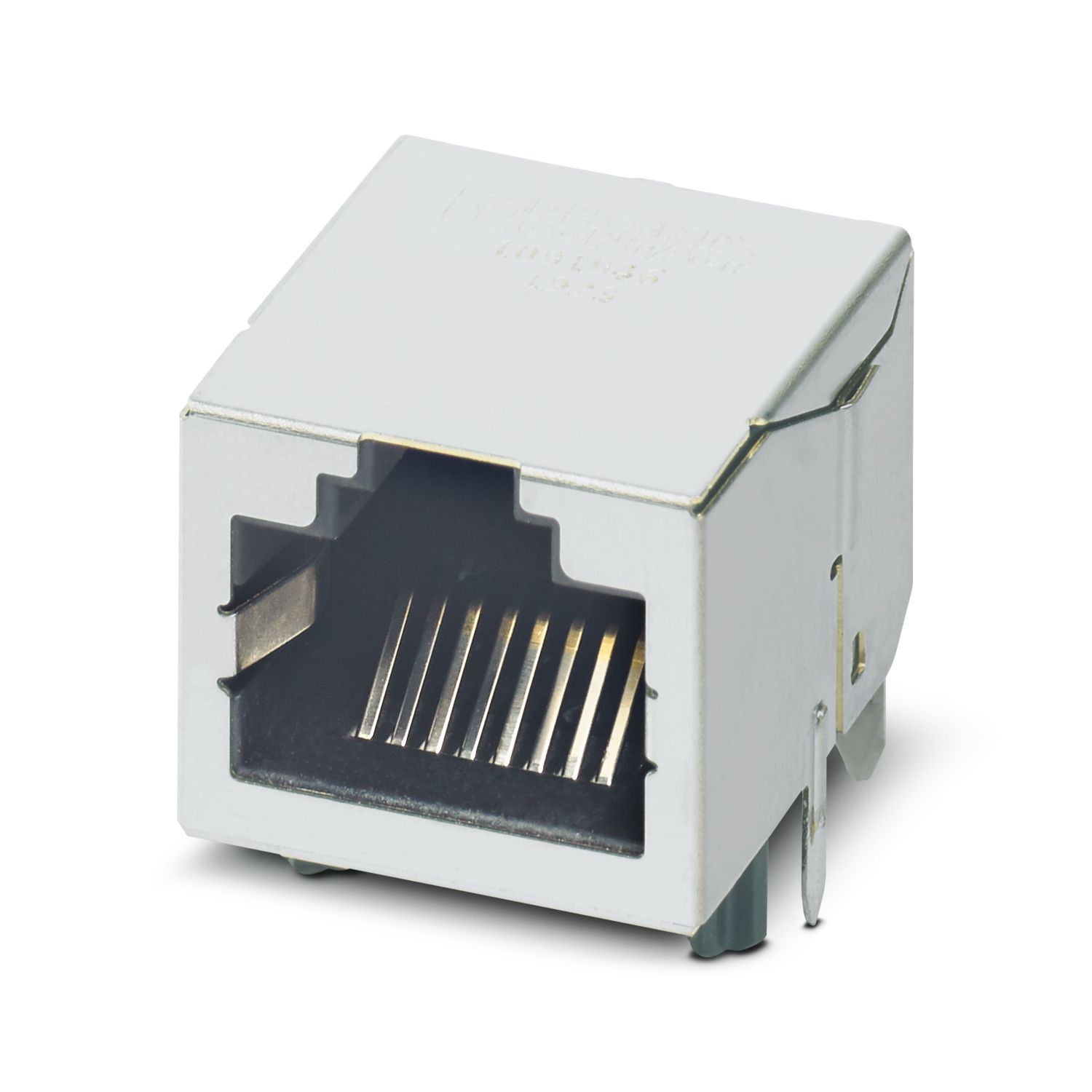

CUC-IND-J1ST-A/R4LS-LED-PG - RJ45 PCB connector 1099281
