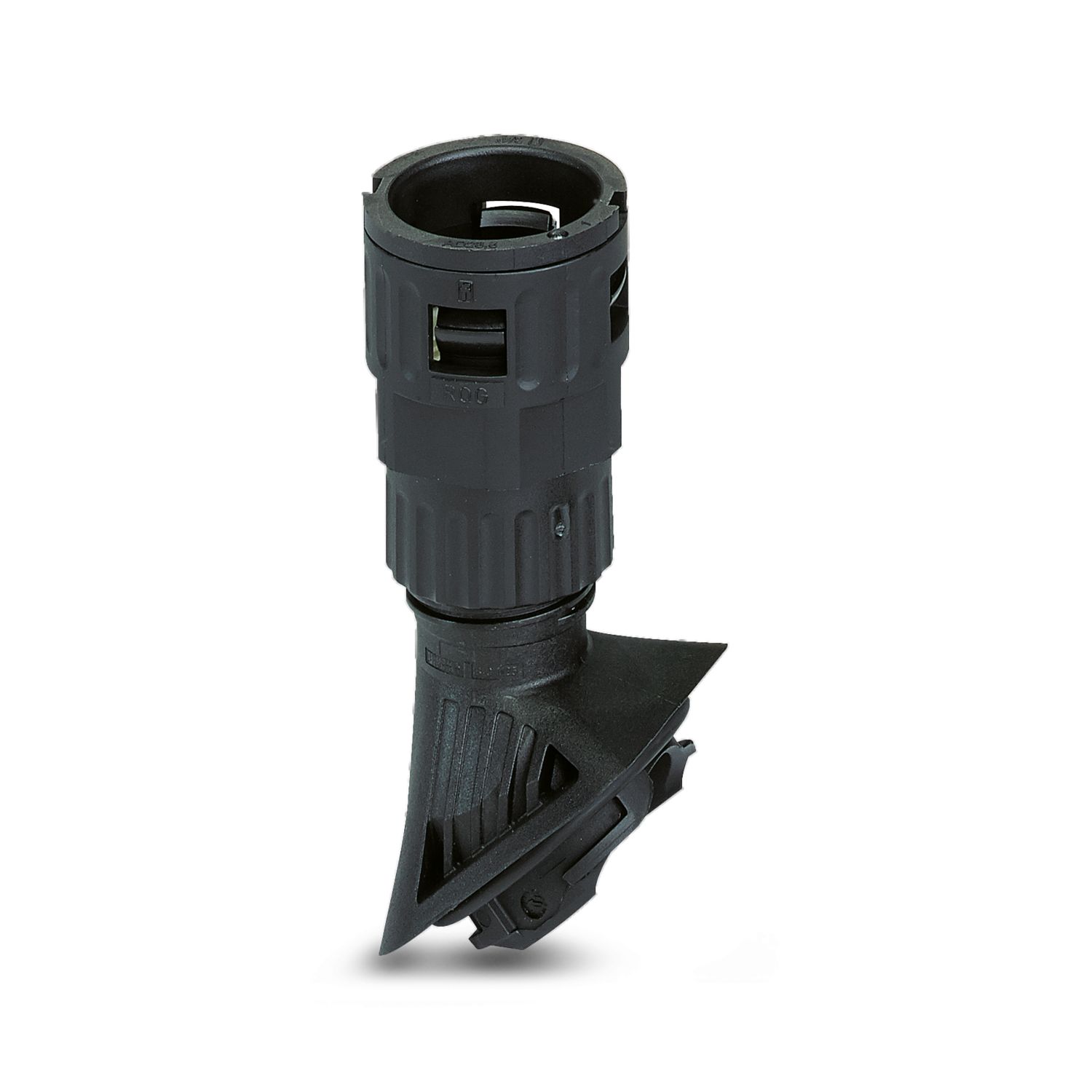

Corrugated tube screw connection - HC-B-GCA-M32-PLRBK
1412022

EVO corrugated pipe screw connection, size: M32, protection class: IP66, plastic


Product Details




Type B6 - B24
Product type Corrugated pipe screw connection

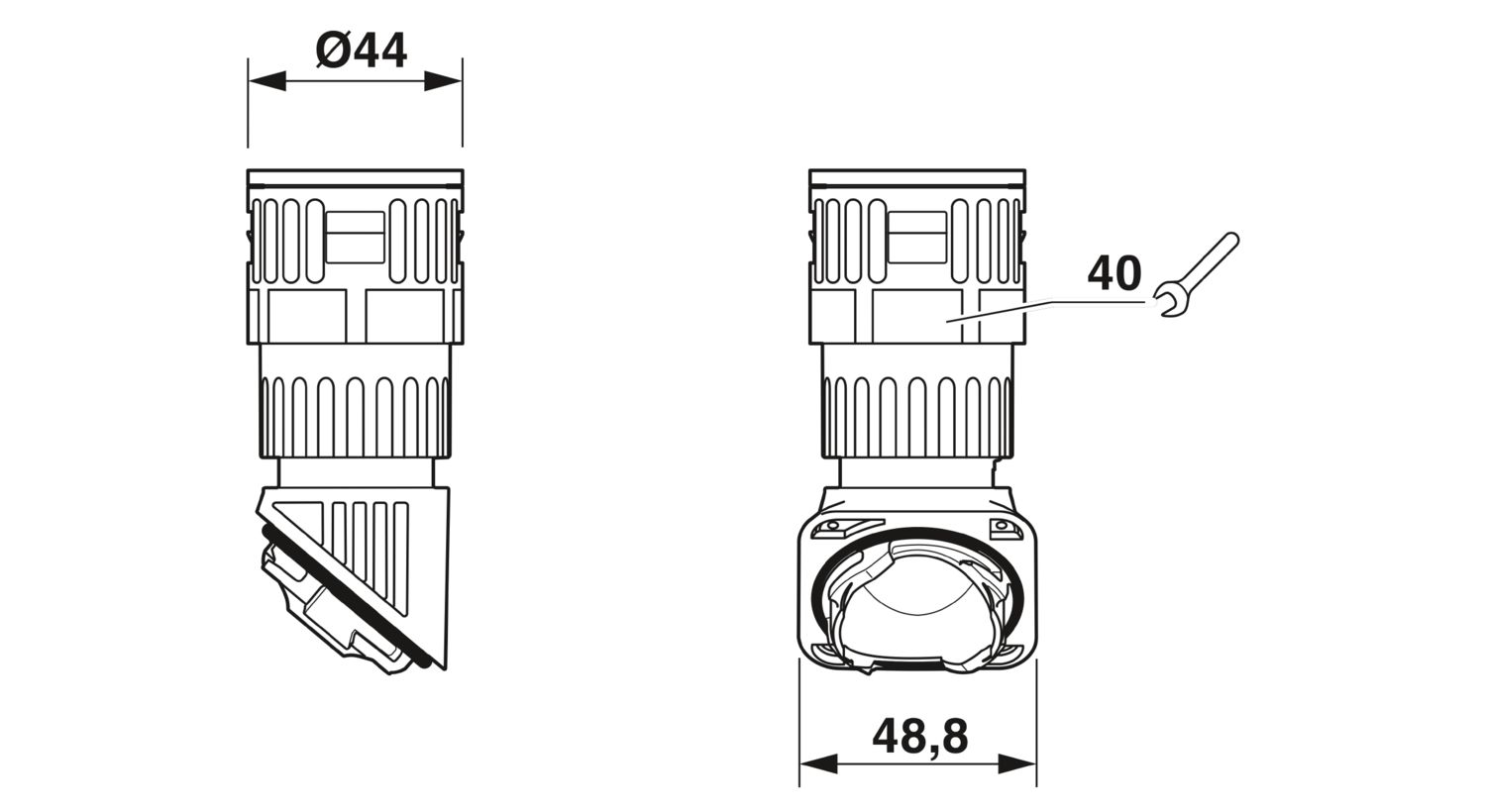

Dimensional drawing
Thread type on seal side M32

Color black
Material PA
Sealing material Neoprene (Sleeve seal)

Cable structure
External cable diameter 15 mm ... 21 mm
Master cable data/connection data
Tightening torque, union nut 7.50 Nm

Ambient conditions
Degree of protection IP66
Degree of protection IP66
Ambient temperature (operation) -40 °C ... 115 °C

Assembly instructions Please observe the installation note provided for the WP-PA HF-HB.....BK corrugated pipe

Item number 1412022
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BF7
Product Key BF7AAF
Catalog Page Page 644 (C-4-2015)
GTIN 4046356948654
Weight per Piece (including packing) 68,966 g
Weight per Piece (excluding packing) 68,966 g
Customs tariff number 39269097
Country of origin PL


ECLASS

ECLASS-9.0 27430308
ECLASS-10.0.1 27430308

ETIM

ETIM 7.0 EC002908

UNSPSC

UNSPSC 21.0 39121421

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
