HC-DD72-I-CT-F-144 - Contact insert

1584101

Contact insert, number of positions: 72+PE, size: B16, Socket, Crimp connection, 250 V, 10 A, 0.14 mm² ... 2.5 mm², application: Signal

Product details

General	For HEAVYCON ADVANCE and HEAVYCON housing of type B16, crimp contacts: CK 1,6-ED... (not included in scope of supply)
General	Connectors may be operated only when there is no load/voltage.
General	It is imperative that guide pins (HC-CST) and sockets (HC-CBU) are used to prevent tip collision due to misalignment.

Assembly note	To ensure correct use, installation in housing with IP54 protection or better is required

Product type	Contact insert with a fixed no. of positions
Series	HC-DD
Application	Signal
Type	B16
	B32
Number of positions	72
Connection profile	72+PE

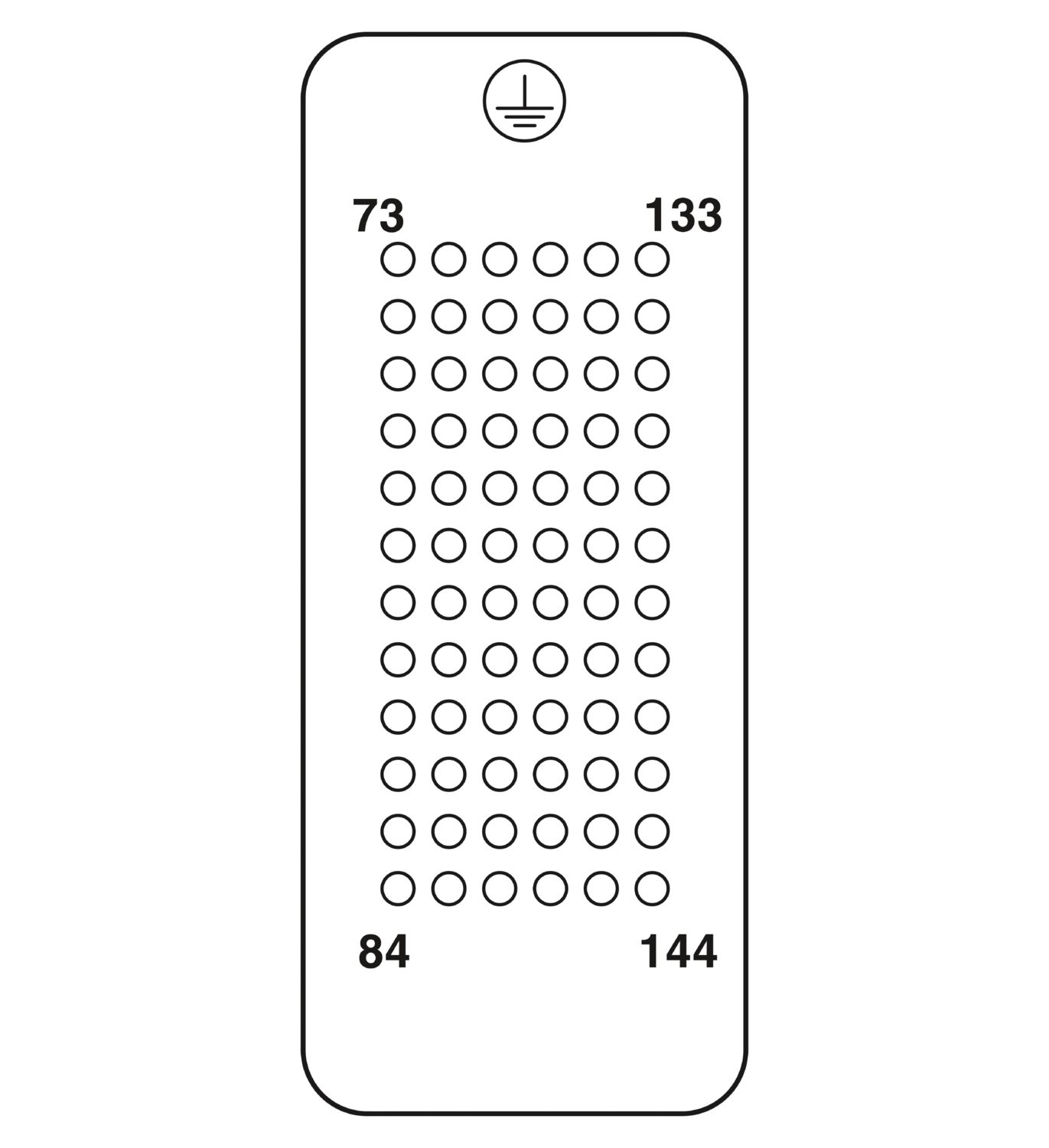

Contact numbering	73 - 144
Contact material type	turned
	rolled
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

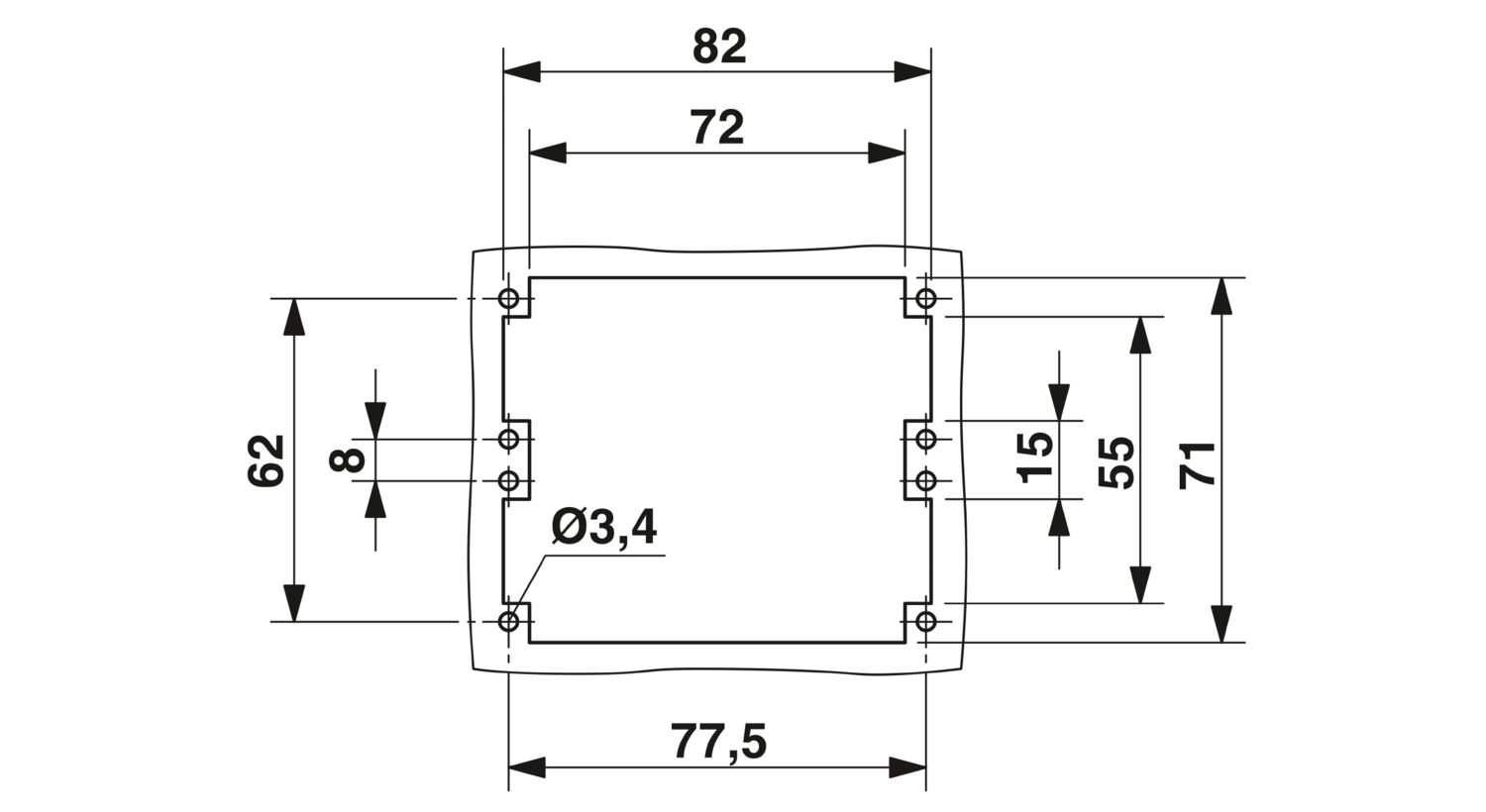

Dimensional drawing
Width	34 mm
Height	34.5 mm
Length	84 mm
Drill hole distance, horizontal	77.5 mm
Drill hole distance, vertical	27 mm
Mechanical characteristics
Minimum housing height	72 mm
Contact diameter	1.6 mm

Connection technology
Connection technology	Crimp connection
Connection in acc. with standard	IEC / EN
Conductor connection
Conductor cross section	0.14 mm² ... 2.5 mm²
Connection cross section AWG	26 ... 14
Tightening torque	0.8 Nm ... 1.2 Nm (PE connection)
	0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Stripping length of the individual wire	8 mm (0.14 mm² ... 1.5 mm²)
	6 mm (2.5 mm²)

Rated voltage (III/3)	250 V
Rated surge voltage	4 kV

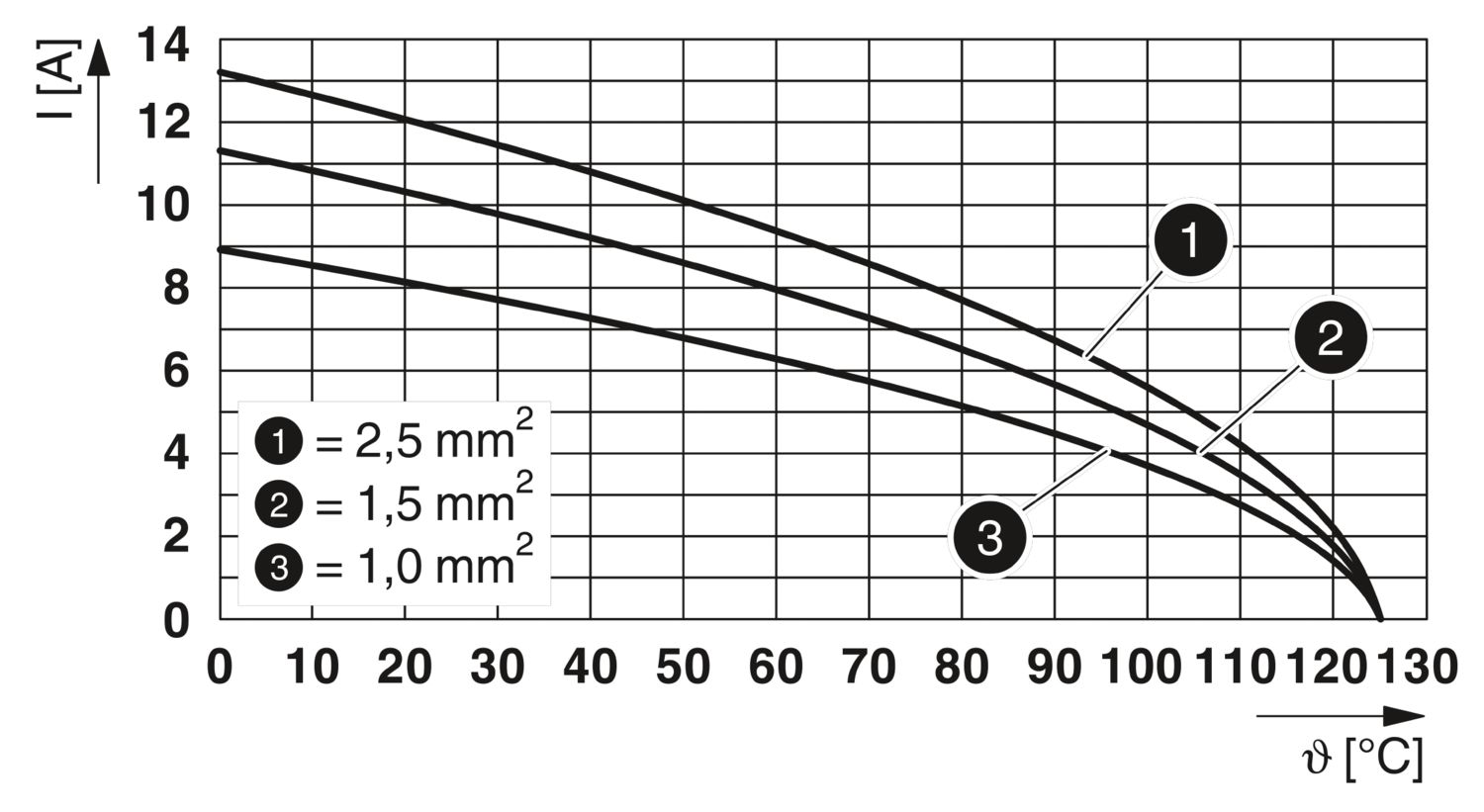

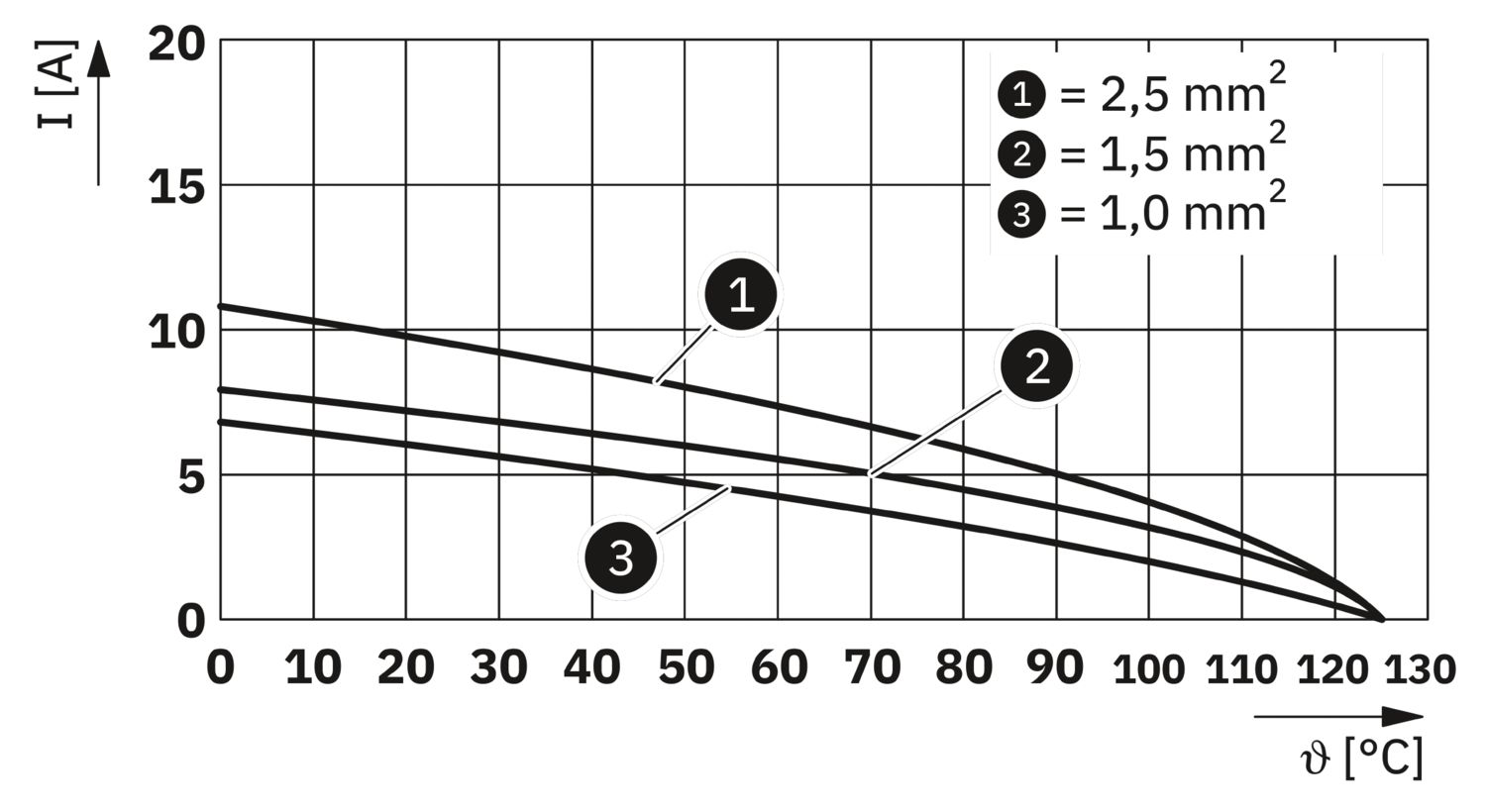

Rated current	10 A
SCCR	5 kA (UL 2237)

Mechanical data
Insertion/withdrawal cycles	≥ 500

Flammability rating according to UL 94	V0
Contact material	Copper alloy
Contact surface material	Ag (alternatively Au)
Contact carrier material	PC
Standards/regulations	PC

Ambient conditions
Ambient temperature (operation)	-40 °C ... 125 °C (including heating up of contacts)

Constructional and testing regulations	DIN VDE 0627/86
	DIN VDE 0110/02.79
	DIN VDE 0110-1/04.97
	IEC 60664-1, DIN IEC 60512
	IEC 60352
Tests	DIN VDE 0627/86
	DIN VDE 0110/02.79
	DIN VDE 0110-1/04.97
	IEC 60664-1, DIN IEC 60512
	IEC 60352
Testing
Standards/regulations	PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Commercial data

Item number	1584101
Packing unit	10 pc
Minimum order quantity	1 pc
Sales key	020
Product key	AF7ABF
Catalog page	Page 539 (C-2-2019)
GTIN	4046356133418
Weight per piece (including packing)	60,2 g
Weight per piece (excluding packing)	60,2 g
Customs tariff number	85389099
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	250 V	7 A	26 - 14

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	250 V	7 A	- 14

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	250 V	10 A	- 14

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	250 V	7 A	- 14

Environmental product compliance

Compatible products

Accessories

Your advantages

Can be used in rail vehicles, satisfy DIN EN 45545-2 with requirement sets R22, R23, and R24 in hazard levels HL1, HL2, and HL3.

Shock and vibration-resistant in accordance with DIN EN 61373

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
